Here are the solutions for the requested calculations:

Part iii· 3 steps

Calculate the inductive reactance XL

The inductive reactance (XLX_L) is the opposition of an inductor to the flow of alternating current. It is given by the formula:

XL=2πfLX_L = 2 \pi f L

where ff is the frequency and LL is the inductance.

  1. Identify the given values.

    Given frequency f=50 Hzf = 50 \text{ Hz}.
    Given inductance L=0.1 HL = 0.1 \text{ H}.
    Given π=3.14\pi = 3.14.

  2. Substitute the values into the formula.

    XL=2×3.14×50 Hz×0.1 HX_L = 2 \times 3.14 \times 50 \text{ Hz} \times 0.1 \text{ H}

  3. Calculate the inductive reactance.

    XL=31.4 ΩX_L = 31.4 \text{ } \Omega

    The unit for reactance is Ohms (Ω\Omega).

    The inductive reactance is 31.4 Ω\boxed{\text{}31.4 \text{ } \Omega\text{}}

Part iv

31.85 Ω\text{}31.85 \text{ } \Omega\text{}

Calculate the capacitive reactance XC

The capacitive reactance (XCX_C) is the opposition of a capacitor to the flow of alternating current. It is given by the formula:

XC=12πfCX_C = \frac{1}{2 \pi f C}

where ff is the frequency and CC is the capacitance.

  1. Identify the given values and convert units.

    Given frequency f=50 Hzf = 50 \text{ Hz}.
    Given capacitance C=100μF=100×10−6 FC = 100 \mu \text{F} = 100 \times 10^{-6} \text{ F}.
    Given π=3.14\pi = 3.14.

  2. Substitute the values into the formula.

    XC=12×3.14×50 Hz×100×10−6 FX_C = \frac{1}{2 \times 3.14 \times 50 \text{ Hz} \times 100 \times 10^{-6} \text{ F}}

  3. Calculate the capacitive reactance.

    XC=131400×10−6X_C = \frac{1}{31400 \times 10^{-6}} XC=10.0314X_C = \frac{1}{0.0314} XC≈31.847 ΩX_C \approx 31.847 \text{ } \Omega

    The capacitive reactance is 31.85 Ω\boxed{\text{}31.85 \text{ } \Omega\text{}} (rounded to two decimal places).

Part v

18.03 Ω\text{}18.03 \text{ } \Omega\text{}

Calculate the total impedance Z

The total impedance (ZZ) in a series RC circuit (resistance and capacitive reactance) is the total opposition to current flow. It is calculated using the Pythagorean theorem for phasors:

Z=R2+XC2Z = \sqrt{R^2 + X_C^2}

where RR is the resistance and XCX_C is the capacitive reactance.

  1. Identify the given values.

    Given resistance R=10 ΩR = 10 \text{ } \Omega.
    Given capacitive reactance XC=15 ΩX_C = 15 \text{ } \Omega.

  2. Substitute the values into the formula.

    Z=(10 Ω)2+(15 Ω)2Z = \sqrt{(10 \text{ } \Omega)^2 + (15 \text{ } \Omega)^2}

  3. Calculate the squares of the resistance and capacitive reactance.

    Z=100 Ω2+225 Ω2Z = \sqrt{100 \text{ } \Omega^2 + 225 \text{ } \Omega^2}

  4. Sum the squared values and take the square root.

    Z=325 Ω2Z = \sqrt{325 \text{ } \Omega^2} Z≈18.027 ΩZ \approx 18.027 \text{ } \Omega

    The total impedance is 18.03 Ω\boxed{\text{}18.03 \text{ } \Omega\text{}} (rounded to two decimal places).

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QSolve for me this physicsQSolve this physics questionQSolve this physics exerciseQContinue with the physics formulaQAll formula in physics advance level
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

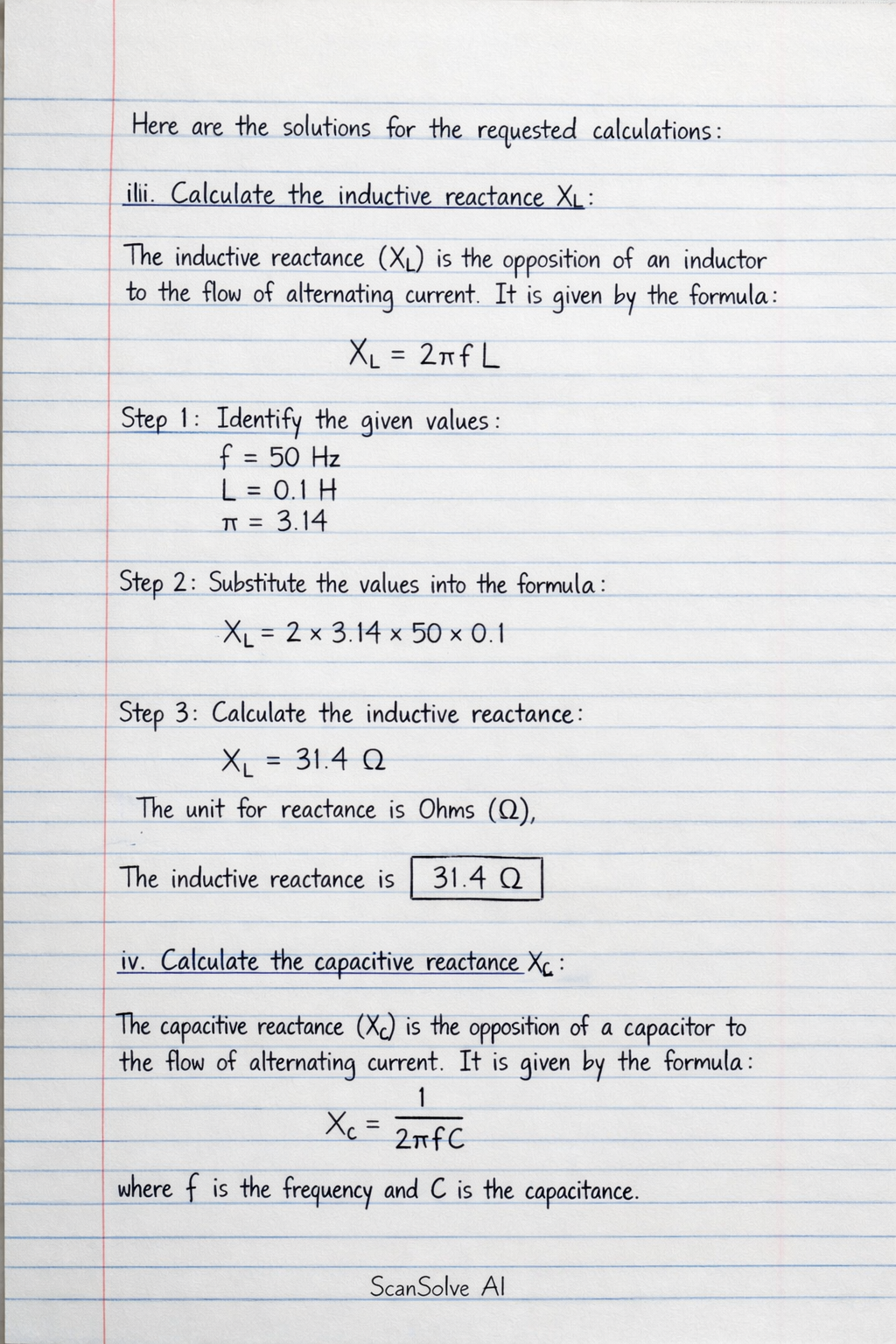

Handwritten step-by-step solution preview
