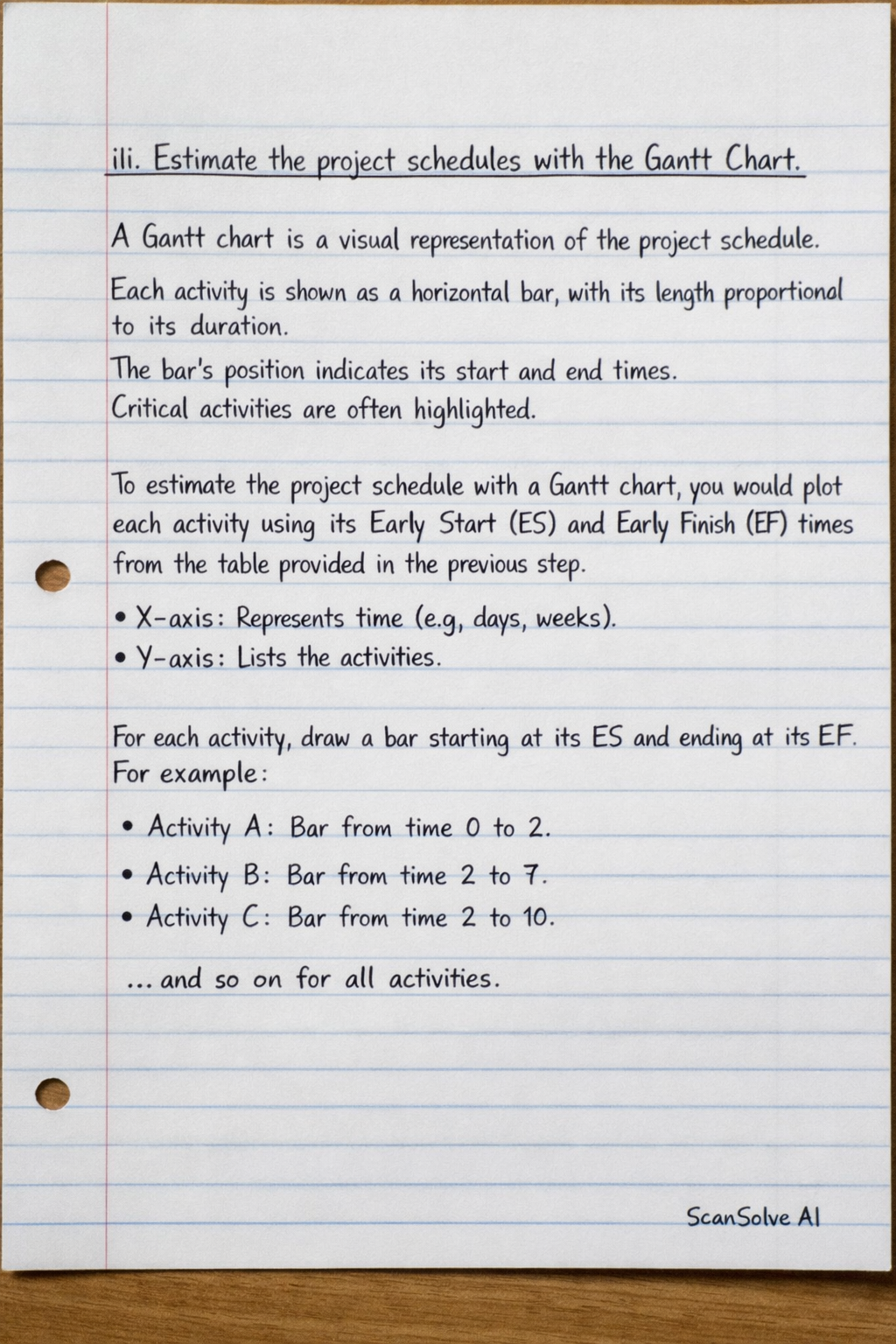

Here are the remaining parts of the project activity analysis: iii. Estimate the project schedules with the Gantt Chart A Gantt chart is a visual representation of the project schedule. Each activity is shown as a horizontal bar, with its length proportional to its duration. The bar's position indicates its start and end times. Critical activities are often highlighted. To estimate the project schedule with a Gantt chart, you would plot each activity using its Early Start (ES) and Early Finish (EF) times from the table provided in the previous step. X-axis: Represents time (e.g., days, weeks). Y-axis: Lists the activities. For each activity, draw a bar starting at its ES and ending at its EF. For example: Activity A: Bar from time 0 to 2. Activity B: Bar from time 2 to 7. Activity C: Bar from time 2 to 10. ...and so on for all activities. Activities on the critical path (A, D, J, M, N) would be highlighted to show they have no slack and directly impact the project completion time. Non-critical activities (like B, C, E, F, G, H, I, K, L) would show their bars based on ES/EF, and their slack indicates how much they can be delayed without affecting the overall project duration. iv. Confirm you results with the software This step requires the use of project management software (e.g., Microsoft Project, Primavera, Asana, Trello, or similar tools) to input the activities, durations, and precedence relationships. The software would then automatically calculate the ES, EF, LS, LF, slack, and critical path, and generate a Gantt chart. As an AI, I cannot directly interact with or run external software to confirm the results. You would need to perform this step manually using a suitable software tool. Last free one today — make it count tomorrow, or type /upgrade for unlimited.
