Component Function:

Question

Component Function:

ScanSolve AI Tutor · Accepted Answer

Here are the functions of the components and the answers to the short answer questions:

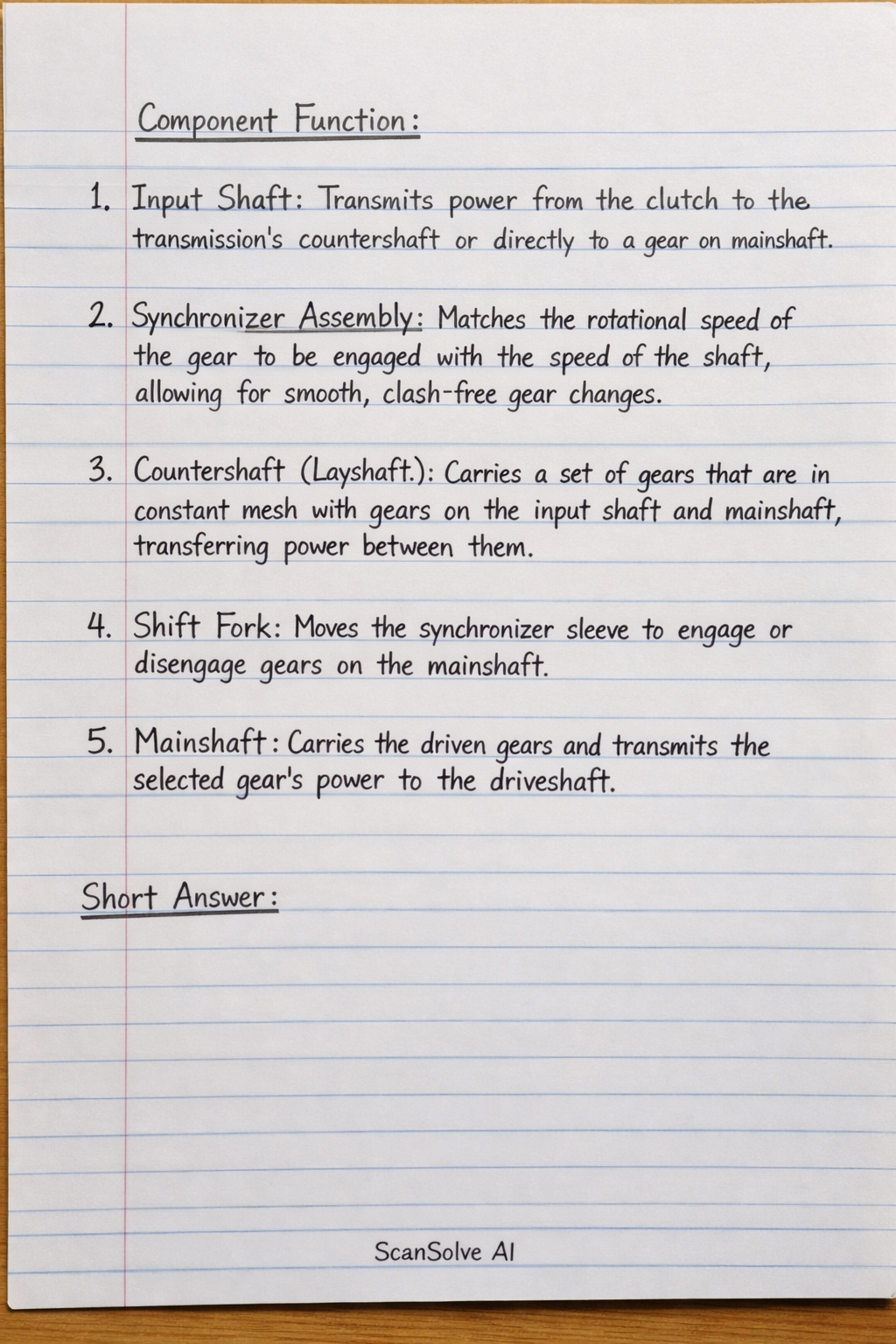

Component Function:

Input Shaft: Transmits power from the clutch to the transmission's countershaft or directly to a gear on the mainshaft.
Synchronizer Assembly: Matches the rotational speed of the gear to be engaged with the speed of the shaft, allowing for smooth, clash-free gear changes.
Countershaft (Layshaft): Carries a set of gears that are in constant mesh with gears on the input shaft and mainshaft, transferring power between them.
Shift Fork: Moves the synchronizer sleeve to engage or disengage gears on the mainshaft.
Mainshaft: Carries the driven gears and transmits the selected gear's power to the driveshaft.

Short Answer:

1. Explain why synchronizer uses brass cone or block ring before dog teeth engage.
The synchronizer uses a brass cone (or blocker ring) as a friction clutch to match the rotational speed of the gear to the speed of the shaft before the dog teeth can engage. This prevents grinding and clashing of gears, ensuring a smooth and quiet gear change.

2. Gear Ratio: If a drive has 12 teeth and driven gear is 36 teeth. What is the ratio - is this overdrive or underdrive?

Identify the number of teeth on the drive and driven gears.
Drive gear teeth = 12
Driven gear teeth = 36
Calculate the gear ratio.
$\text{Gear Ratio} = \frac{\text{Number of teeth on driven gear}}{\text{Number of teeth on drive gear}}$
Substitute the values and simplify.
$\text{Gear Ratio} = \frac{36}{12}$ $\text{Gear Ratio} = 3$
The gear ratio is $\boxed{\text{3:1}}$ .
Determine if it is overdrive or underdrive.
Since the gear ratio is 3 (greater than 1), the output speed is lower than the input speed, and the output torque is higher. This is characteristic of an underdrive (or reduction gear).
This is $\boxed{\text{underdrive}}$ .

3. Describe the path of power through 5 speed transmission when it is neutral.
When a 5-speed transmission is in neutral, power flows from the engine through the clutch to the input shaft. The input shaft's gear is in constant mesh with a gear on the countershaft, causing the countershaft to rotate. All the gears on the mainshaft are also in constant mesh with gears on the countershaft, so they will spin freely on the mainshaft. However, none of the synchronizer assemblies are engaged, meaning no gear is locked to the mainshaft. Therefore, no power is transmitted through the mainshaft to the output shaft.

Component Function:

Answer

Step-by-step solution

Identify the number of teeth on the drive and driven gears.

Calculate the gear ratio.

Substitute the values and simplify.

Determine if it is overdrive or underdrive.
