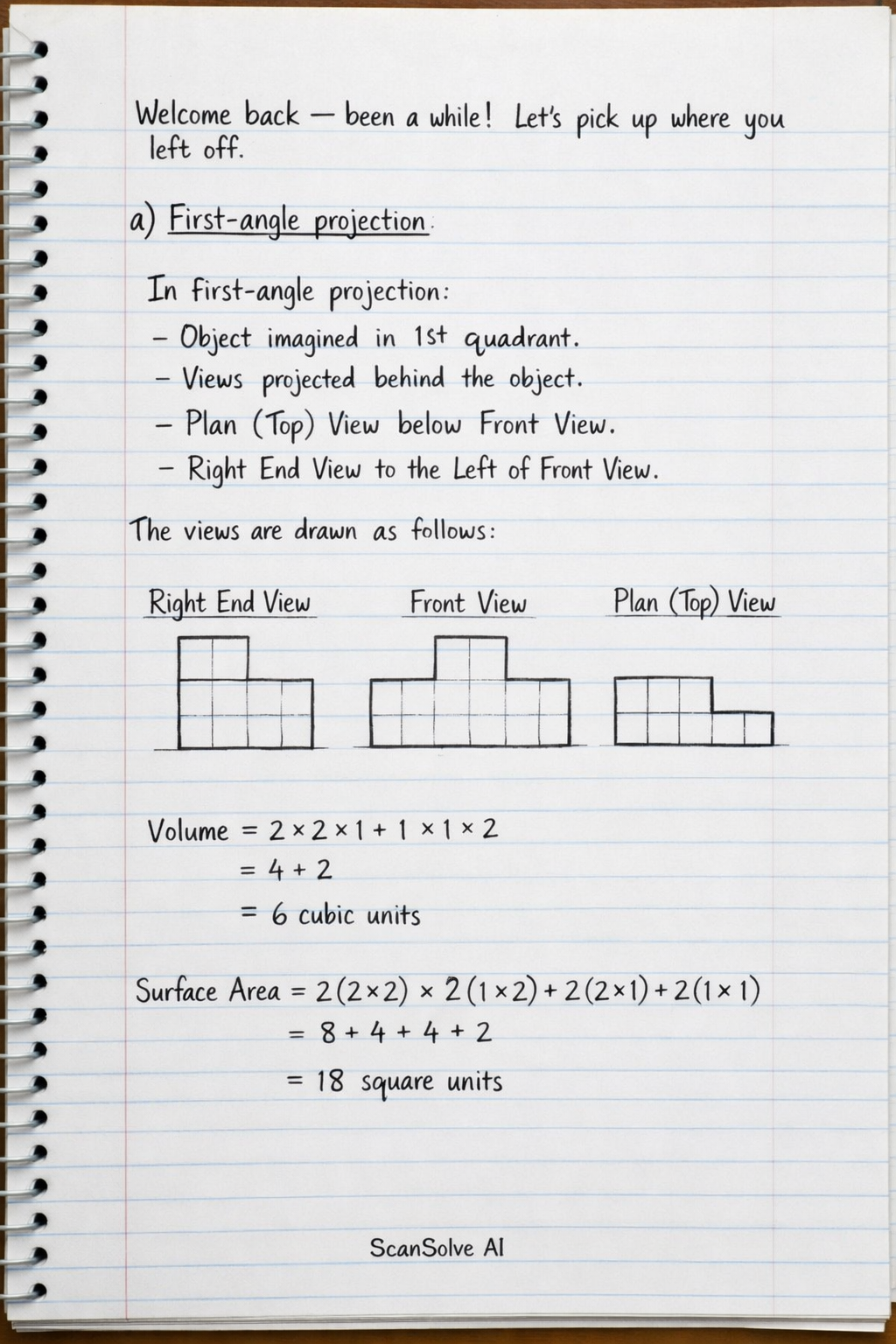

Welcome back — been a while! Let's pick up where you left off. Here are the orthographic views of the figure in both first-angle and third-angle projection. The dimensions are proportional to the given isometric view, as no specific measurements were provided for the object itself. --- a) First-angle projection In first-angle projection, the object is imagined to be in the first quadrant. The views are projected onto the planes behind the object. The Plan (Top) View is placed below* the Front View. The Right End View is placed to the left* of the Front View. The views are drawn as follows: Right End View
