In the given isometric drawing, what is the total center to center distance between the two flanges (F₁ and F2) along the main pipe line?

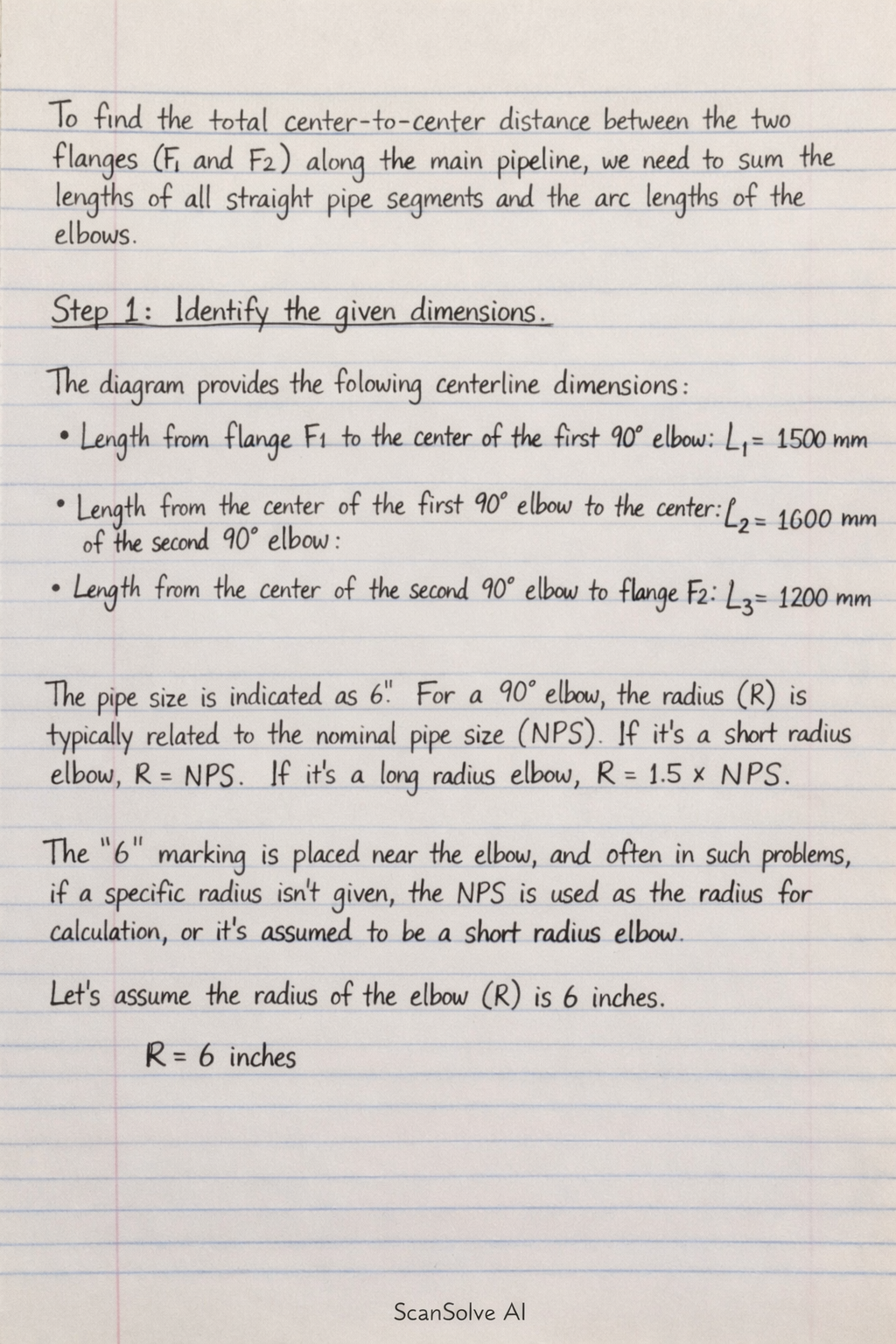

The diagram provides the following centerline dimensions:

• Length from flange F1 to the center of the first 90° elbow: $L_1 = 1500 \text{ mm}$
• Length from the center of the first 90° elbow to the center of the second 90° elbow: $L_2 = 1000 \text{ mm}$
• Length from the center of the second 90° elbow to flange F2: $L_3 = 1200 \text{ mm}$

The pipe size is indicated as 6". For a 90° elbow, the radius (R) is typically related to the nominal pipe size (NPS). If it's a short radius elbow, R = NPS. If it's a long radius elbow, R = 1.5 $\times$ NPS. The "6"" marking is placed near the elbow, and often in such problems, if a specific radius isn't given, the NPS is used as the radius for calculation, or it's assumed to be a short radius elbow. Let's assume the radius of the elbow (R) is 6 inches.

Given $R = 6 \text{ inches}$.
Since $1 \text{ inch} = 25.4 \text{ mm}$:

$$R = 6 \times 25.4 \text{ mm} = 152.4 \text{ mm}$$

The total length along the pipeline is the sum of the actual straight pipe lengths and the arc lengths of the elbows.
The given dimensions ($L_1, L_2, L_3$) are centerline distances. To find the actual straight pipe lengths, we must subtract the elbow radius (R) from these centerline dimensions where appropriate. Then, we add the arc length of each elbow.

• The straight pipe length from F1 to the tangent point of the first elbow is $L_{s1} = L_1 - R$.
• The straight pipe length between the tangent points of the two elbows is $L_{s2} = L_2 - 2R$.
• The straight pipe length from the tangent point of the second elbow to F2 is $L_{s3} = L_3 - R$.

The arc length of a 90° elbow is $\frac{2 \pi R}{4} = \frac{\pi R}{2}$. There are two such elbows.
Total arc length from two elbows = $2 \times \frac{\pi R}{2} = \pi R$.

The total center-to-center distance along the main pipeline is the sum of these components:

$$L_{\text{total}} = L_{s1} + \frac{\pi R}{2} + L_{s2} + \frac{\pi R}{2} + L_{s3}$$ $$L_{\text{total}} = (L_1 - R) + \frac{\pi R}{2} + (L_2 - 2R) + \frac{\pi R}{2} + (L_3 - R)$$ $$L_{\text{total}} = L_1 + L_2 + L_3 - R - 2R - R + \frac{\pi R}{2} + \frac{\pi R}{2}$$ $$L_{\text{total}} = (L_1 + L_2 + L_3) - 4R + \pi R$$ $$L_{\text{total}} = (L_1 + L_2 + L_3) + (\pi - 4)R$$

$$L_{\text{total}} = (1500 \text{ mm} + 1000 \text{ mm} + 1200 \text{ mm}) + (\pi - 4) \times 152.4 \text{ mm}$$ $$L_{\text{total}} = 3700 \text{ mm} + (3.14159 - 4) \times 152.4 \text{ mm}$$ $$L_{\text{total}} = 3700 \text{ mm} + (-0.85841) \times 152.4 \text{ mm}$$ $$L_{\text{total}} = 3700 \text{ mm} - 130.80 \text{ mm}$$ $$L_{\text{total}} = 3569.2 \text{ mm}$$

Comparing this result to the given options:
A) 2700 mm
B) 3000 mm
C) 3200 mm
D) 3500 mm

The calculated value of $3569.2 \text{ mm}$ is closest to $3500 \text{ mm}$. The slight difference might be due to rounding $\pi$ or the interpretation of the "6"" as an exact radius rather than a nominal pipe size for a standard elbow. Given the options, 3500 mm is the most plausible answer.

The final answer is $\boxed{\text{D}}$.
