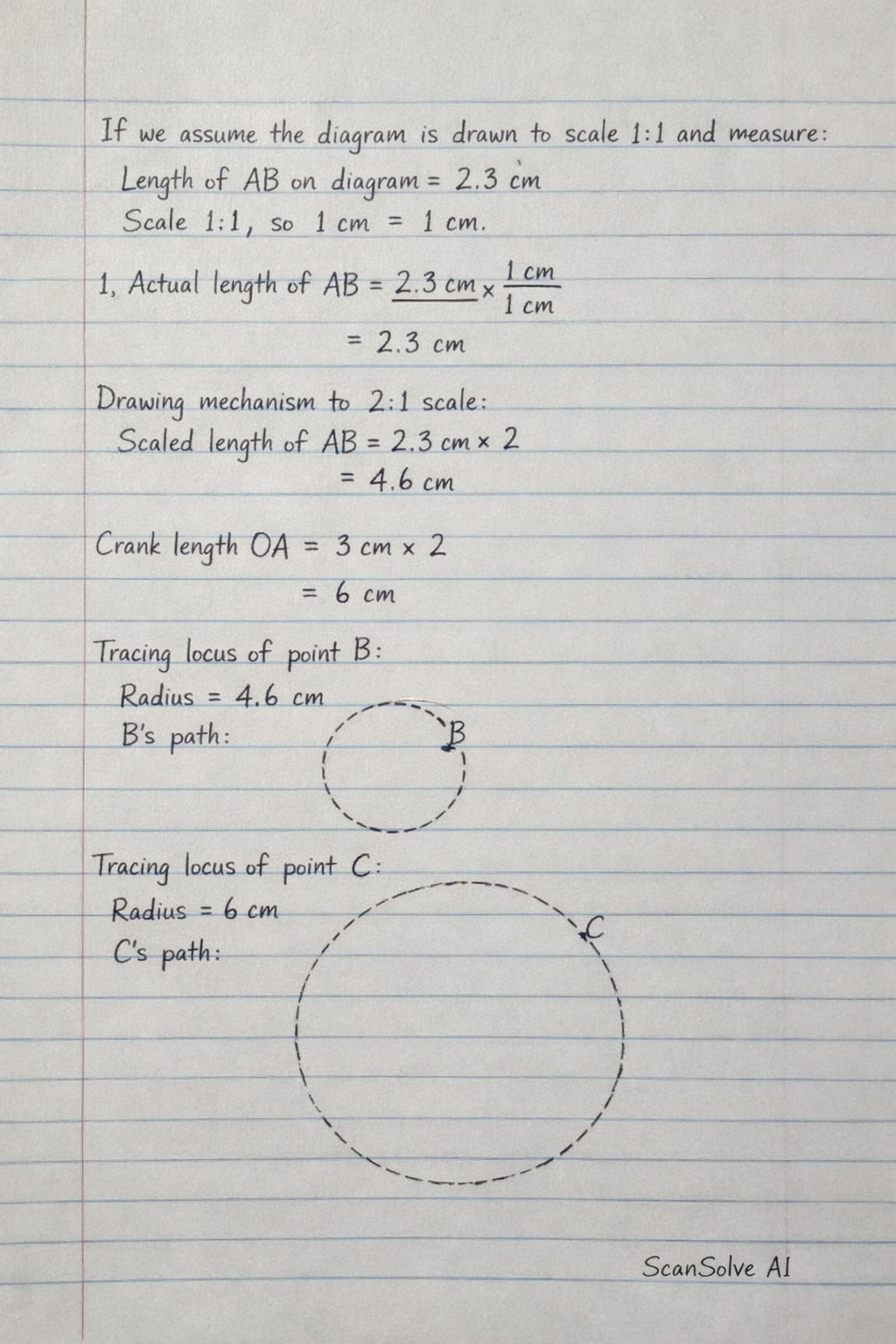

To solve this problem, we need to draw the mechanism to a scale of 2:1 and trace the loci of points B and C for a full rotation of the crank OA. Missing Information: The length of the link AB is not provided in the problem statement or Figure 1. This is a critical dimension required to define the mechanism. Without it, the exact positions of points B and C cannot be determined as the crank OA rotates. Assumption: Given the common structure of such problems, it is highly probable that the diagram is intended to be drawn to scale 1:1, and the length of AB should be measured from the diagram. However, measuring from an image is prone to inaccuracies. *If we assume the diagram is drawn to scale 1:1 and measure
