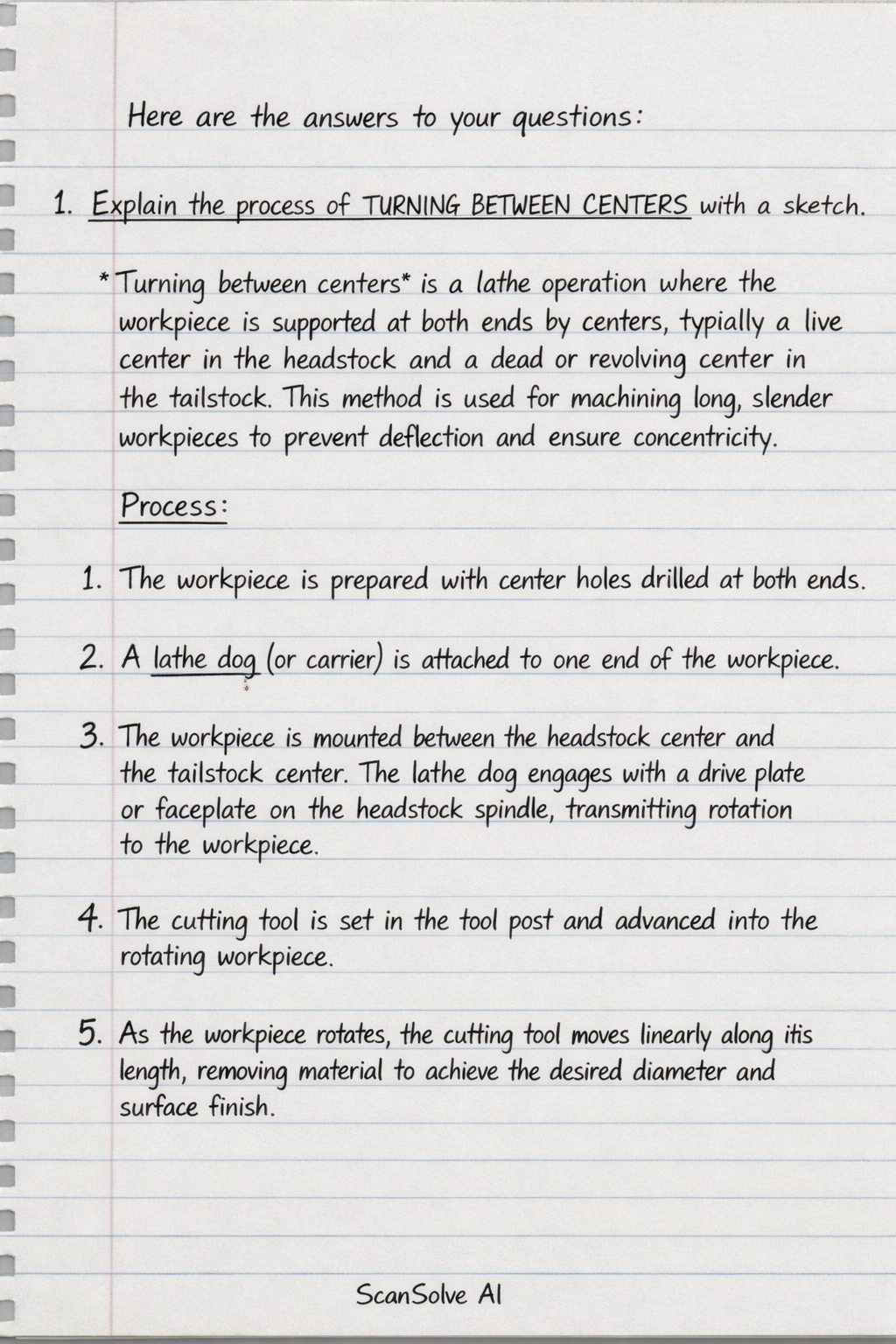

Here are the answers to your questions: 1. Explain the process of TURNING BETWEEN CENTER with a sketch. Turning between centers is a lathe operation where the workpiece is supported at both ends by centers, typically a live center in the headstock spindle and a dead or revolving center in the tailstock. This method is used for machining long, slender workpieces to prevent deflection and ensure concentricity. Process: 1. The workpiece is prepared with center holes drilled at both ends. 2. A lathe dog (or carrier) is attached to one end of the workpiece. 3. The workpiece is mounted between the headstock center and the tailstock center. The lathe dog engages with a drive plate or faceplate attached to the headstock spindle, transmitting rotational motion to the workpiece. 4. The cutting tool is set in the tool post and advanced into the rotating workpiece. 5. As the workpiece rotates, the cutting tool moves linearly along its length, removing material to achieve the desired diameter and surface finish. Sketch Description: Imagine a horizontal line representing the lathe bed. On the left, draw a headstock with a rotating live center and a drive plate. On the right, draw a tailstock with a dead center. Between these centers, draw a cylindrical workpiece. On the left end of the workpiece, show a lathe dog with its tail engaging the drive plate. Below the workpiece, show a carriage with a tool post holding a cutting tool positioned to remove material from the workpiece's surface. Arrows should indicate the rotation of the workpiece and the feed direction of the cutting tool. 2. State 6 maintenance practices on lathe machine. • Regular cleaning: Remove chips, swarf, and dirt from the machine bed, carriage, and other components. • Lubrication: Apply appropriate oils and greases to all moving parts, slides, gears, and bearings as per the manufacturer's recommendations. • Inspection: Periodically check for wear, damage, or misalignment of components like chucks, centers, tool post, and lead screws. • Adjustment: Tighten loose fasteners, adjust gibs for proper slide fit, and ensure correct belt tension. • Tool maintenance: Ensure cutting tools are sharp, correctly ground, and properly installed. • Electrical checks: Inspect electrical connections, cables, and motors for any signs of wear or damage. 3. State 5 reasons for carrying out lathe machine maintenance. • Ensure accuracy and precision: Regular maintenance helps maintain the machine's geometric accuracy, leading to precise machining operations. • Extend machine lifespan: Proper care reduces wear and tear, preventing premature failure of components and prolonging the overall life of the lathe. • Prevent breakdowns: Proactive maintenance identifies and addresses potential issues before they lead to costly and time-consuming machine failures. • Ensure operator safety: A well-maintained machine operates predictably, reducing the risk of accidents and injuries to the operator. • Maintain product quality: Consistent machine performance ensures high-quality finished products with desired surface finish and dimensional tolerances. 4. State 5 examples of faults in lathe operation. • Worn bearings: Can lead to excessive vibration, poor surface finish, and inaccurate cuts. • Loose gibs: Causes play in the carriage or cross-slide, resulting in chatter and dimensional inaccuracies. • Misaligned centers: Leads to tapered workpieces and difficulty in holding long jobs concentrically. • Dull or improperly ground cutting tools: Causes poor surface finish, excessive heat generation, increased cutting forces, and rapid tool wear. • Vibration: Can be caused by unbalanced workpieces, loose components, or worn gears, leading to chatter marks on the workpiece. 5. State 5 effects of using a faulty lathe machine. • Poor surface finish: Chatter marks, rough surfaces, and inconsistent finishes on machined parts. • Inaccurate dimensions: Workpieces may not meet specified tolerances, leading to scrap or rework. • Increased tool wear: Faulty machine conditions can cause tools to wear out faster, increasing operational costs. • Machine damage: Continued use of a faulty machine can exacerbate existing problems, leading to more severe damage to components. • Operator injury: Unpredictable machine behavior due to faults can pose significant safety risks to the operator. 6. Explain the PRINCIPLE OF LATHE OPERATION with a sketch. The principle of lathe operation is based on the relative motion between a rotating workpiece and a linearly feeding cutting tool. The workpiece is held securely and rotated at a specific speed, while a single-point cutting tool is fed into the workpiece, removing material in the form of chips to create a desired shape. Principle: 1. Workpiece Rotation: The workpiece is clamped in a work-holding device (like a chuck or centers) and rotated by the headstock spindle. This provides the primary cutting motion. 2. Tool Feed: The cutting tool is mounted in a tool post on the carriage. The carriage can move longitudinally (along the bed) and the cross-slide can move transversely (perpendicular to the bed). This controlled linear movement of the tool provides the feed motion. 3. Material Removal: When the rotating workpiece comes into contact with the feeding cutting tool, material is sheared off the workpiece surface, gradually shaping it. The depth of cut is controlled by the cross-slide. Sketch Description: Draw a simplified diagram of a lathe. On the left, show the headstock with a chuck holding a cylindrical workpiece. Indicate the workpiece rotating with a circular arrow. On the right, show the tailstock. Below the workpiece, draw the carriage assembly, including the cross-slide and tool post with a cutting tool. Show the cutting tool engaged with the workpiece. Use arrows to indicate the direction of workpiece rotation, the longitudinal feed of the carriage, and the transverse feed of the cross-slide (depth of cut). 7. Types of Chucks: • 4-jaw chuck: This chuck has four independent jaws that can be adjusted individually. It is used for holding irregular-shaped workpieces or for achieving very high concentricity by precisely centering the workpiece. It offers a strong grip but requires more time for setup. • 3-jaw chuck: Also known as a universal or self-centering chuck, it has three jaws that move simultaneously when tightened, automatically centering the workpiece. It is commonly used for holding round or hexagonal workpieces and offers quick setup. • Collet chuck: A high-precision work-holding device consisting of a flexible sleeve with multiple slots. It provides excellent concentricity and gripping force for small-diameter workpieces, often used for repetitive, high-accuracy tasks. • Magnetic chuck: This chuck uses magnetic force to hold ferromagnetic workpieces. It is ideal for holding thin, delicate, or irregularly shaped parts that cannot be clamped mechanically without distortion. It provides a uniform holding force across the contact surface.
