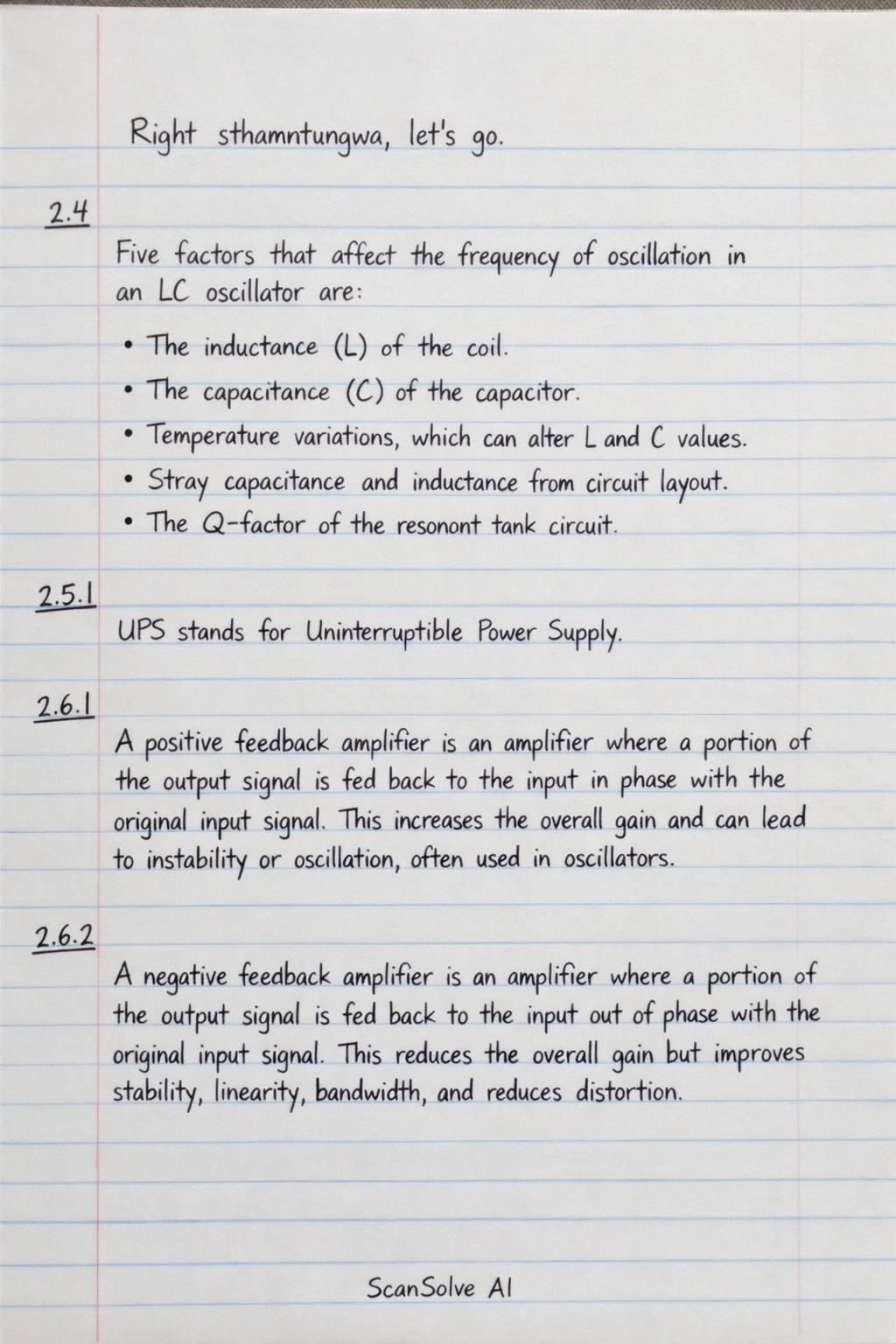

2.4 Five factors that affect the frequency of oscillation in an LC oscillator are: • The inductance (L) of the coil. • The capacitance (C) of the capacitor. • Temperature variations, which can alter L and C values. • Stray capacitance and inductance from circuit layout. • The Q-factor of the resonant tank circuit. 2.5.1 UPS stands for Uninterruptible Power Supply. 2.6.1 A positive feedback amplifier is an amplifier where a portion of the output signal is fed back to the input in phase with the original input signal. This increases the overall gain and can lead to instability or oscillation, often used in oscillators. 2.6.2 A negative feedback amplifier is an amplifier where a portion of the output signal is fed back to the input out of phase with the original input signal. This reduces the overall gain but improves stability, linearity, bandwidth, and reduces distortion. 3.1.1 Step 1: Locate the BC109 row in the data sheet. Step 2: Find the value under the "Ic (max) (mA)" column for BC109. The maximum collector current (IC max) for the BC109 is 0.1 A (or 100 mA). The final answer is 0.1 \, A. 3.1.2 Step 1: Locate the BC109 row in the data sheet. Step 2: Find the value under the "Po (W)" column for BC109. The maximum power dissipation (Ptot) for the BC109 is 0.35 W. The final answer is 0.35 \, W. 3.1.3 Step 1: Locate the BC109 row in the data sheet. Step 2: Find the value under the "hFE@Ic" column for BC109, specifically at IC = 0.6 mA. The typical current gain (hFE) for a BC109 at IC = 0.6 mA is 200. The final answer is 200. 3.2 Three causes of an open-circuit fault in electronic circuits are: • A broken wire or printed circuit board track. • A loose or corroded connection at a component lead or connector. • A blown fuse or a faulty switch that fails to close. 3.3 Three transistor parameters or specifications that must be considered when selecting a suitable replacement transistor are: • Polarity (NPN or PNP). • Maximum Collector-Emitter Voltage (VCEO). • Maximum Collector Current (IC max). 3.4 A common problem experienced when soldering components onto a strip board (vero board) for the first time is creating solder bridges. This occurs when excess solder accidentally connects adjacent copper tracks, causing an unintended short circuit between components or parts of the circuit. 3.5.1 Maximum collector-base voltage (VCBO) is the maximum reverse-bias voltage that can be applied between the collector and base terminals of a transistor when the emitter is left open (unconnected). Exceeding this voltage can cause the transistor to break down and be permanently damaged. Send me the next one 📸
