Which of the following pencils is used for lettering or dimensioning when drawing?

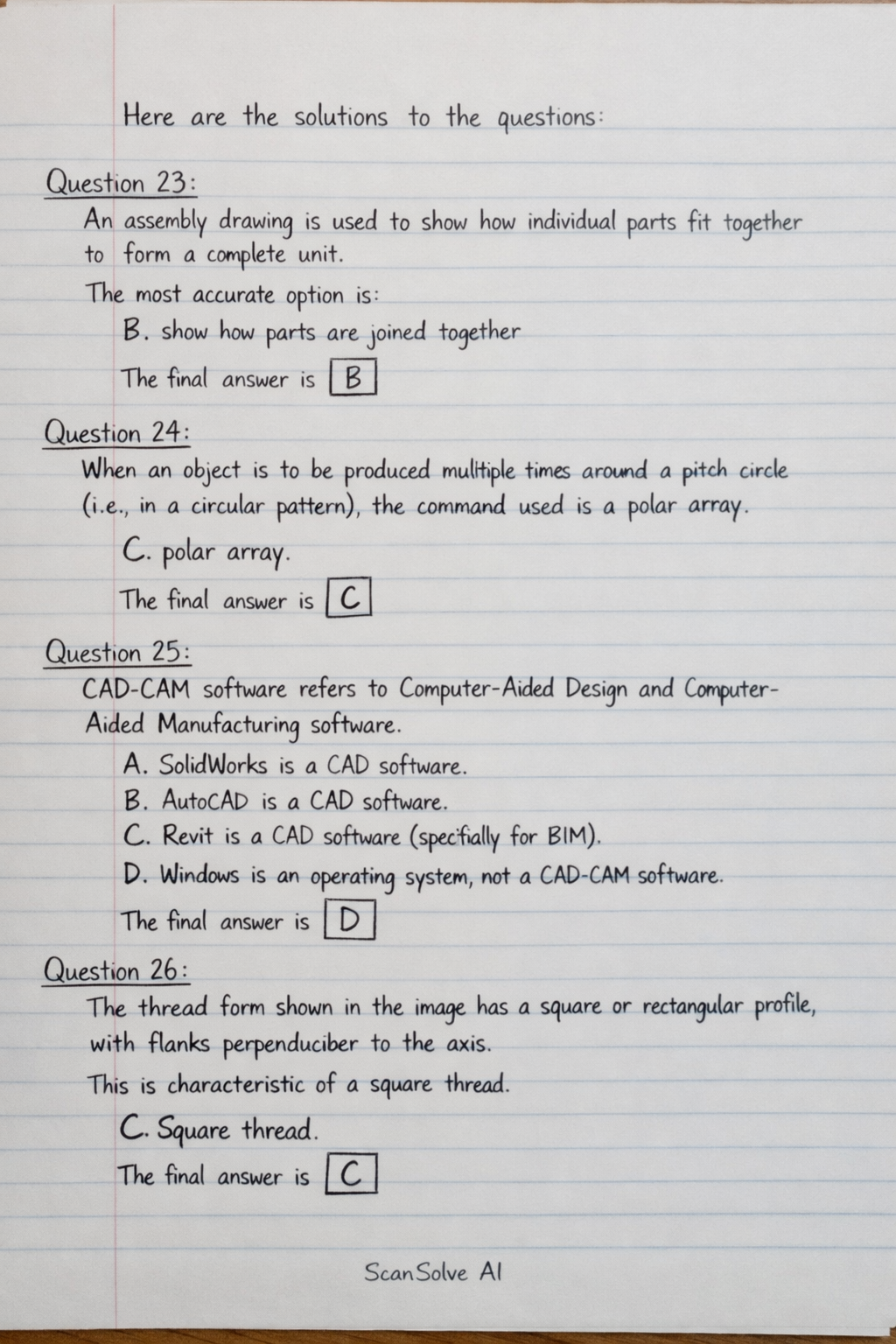

Here are the solutions to the questions:

Question 23:
An assembly drawing is used to show how individual parts fit together to form a complete unit.
The most accurate option is:
B. show how parts are joined together
The final answer is $\boxed{\text{B}}$

Question 24:
When an object is to be produced multiple times around a pitch circle (i.e., in a circular pattern), the command used is a polar array.
C. polar array
The final answer is $\boxed{\text{C}}$

Question 25:
CAD-CAM software refers to Computer-Aided Design and Computer-Aided Manufacturing software.
A. SolidWorks is a CAD software.
B. AutoCAD is a CAD software.
C. Revit is a CAD software (specifically for BIM).
D. Windows is an operating system, not a CAD-CAM software.
The final answer is $\boxed{\text{D}}$

Question 26:
The thread form shown in the image has a square or rectangular profile, with flanks perpendicular to the axis. This is characteristic of a square thread.
C. Square thread
The final answer is $\boxed{\text{C}}$

Question 27:
In technical drawing, pencils are graded by hardness. For lettering and dimensioning, a pencil that produces clear, dark, and consistent lines without being too soft (prone to smudging) or too hard (too light) is preferred.
A. 4H is very hard and produces very light lines, typically for construction lines.
B. 2H is hard and produces light to medium lines, often for general drawing or guidelines.
C. HB is of medium hardness, producing darker lines suitable for outlines, lettering, and dimensioning, offering good readability.
D. 2B is soft and produces very dark lines, prone to smudging, usually for sketching or artistic work.
Therefore, HB is the most appropriate choice for lettering or dimensioning.
C. HB
The final answer is $\boxed{\text{C}}$
