Required Calculations: Battery Bank Sizing:Calculate the required Amp-hour (Ah) capacity Controller requirements). , and how many inparallel(NP , to match the 24V system (considering Charge Total Array Capacity:Determine the total Watt-peak (Wp)required Module Configuration:Calculate the total number of panels(Ntotal). for the solar array. Determine how many must be inseries(NS of the battery bank assuming a 50% Depth of Discharge(DOD).

Question

Asked on May 26, 2026Computer Science

This computer science problem involves algorithmic thinking and programming concepts. The solution below explains the approach, logic, and implementation step by step.

Accepted Answer · 2026-05-26T18:50:17.773Z

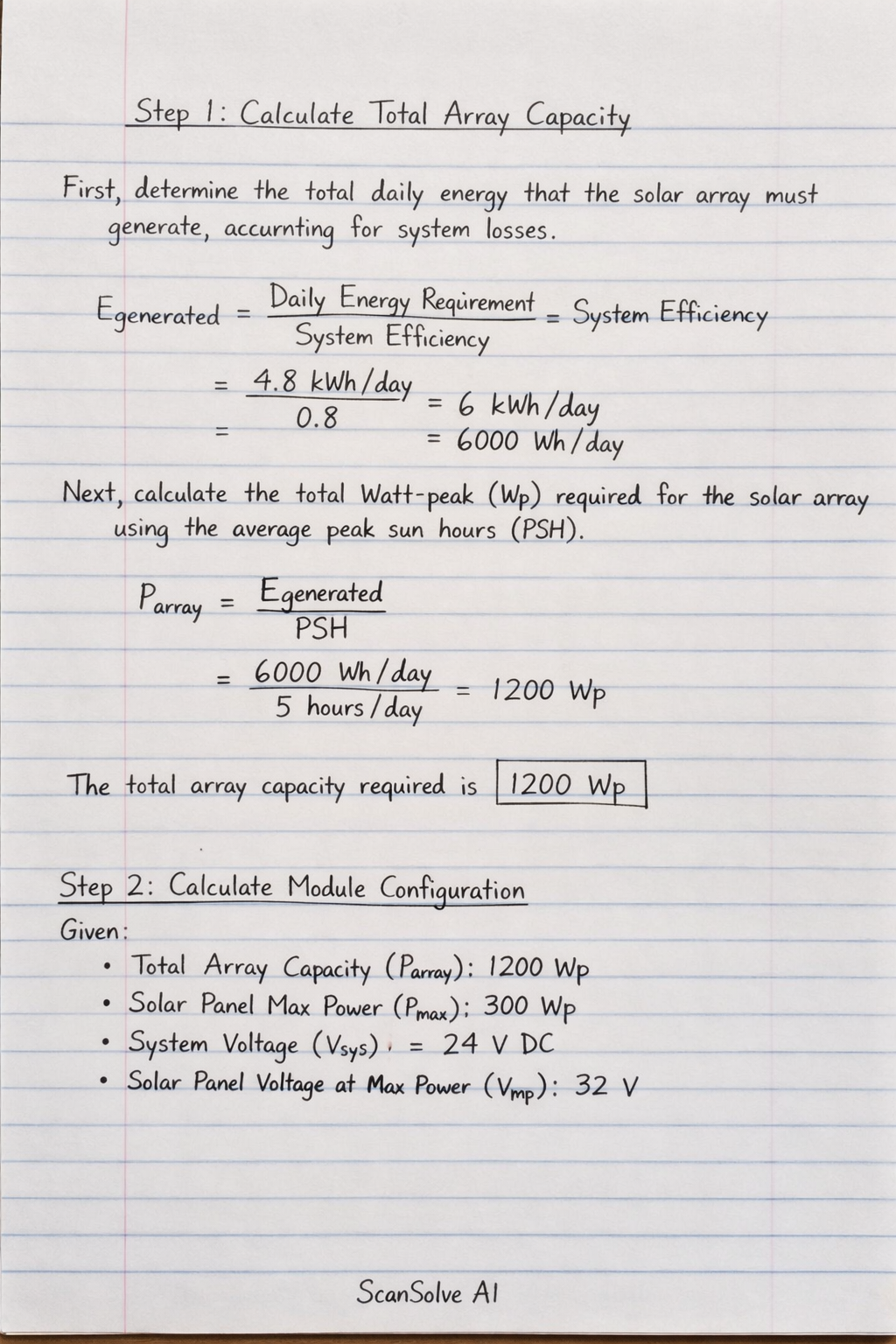

Step 1: Calculate Total Array Capacity First, determine the total daily energy that the solar array must generate, accounting for system losses. E_generated = Daily Energy RequirementSystem Efficiency = 4.8 kWh/day0.8 = 6 kWh/day = 6000 Wh/day Next, calculate the total Watt-peak (Wp) required for the solar array using the average peak sun hours (PSH). P_array = E_generatedPSH = 6000 Wh/day5 hours/day = 1200 Wp The total array capacity required is 1200 Wp. Step 2: Calculate Module Configuration Given: Total Array Capacity (P_array): 1200 Wp Solar Panel Max Power (P_max): 300 Wp System Voltage (V_sys): 24 V DC Solar Panel Voltage at Max Power (V_mp): 32 V Calculate the total number of panels (N_total). N_total = P_arrayP_max, panel = 1200 Wp300 Wp/panel = 4 panels Determine the number of panels in series (N_s). For a 24V system, a single panel with V_mp = 32 V is suitable for charging via an MPPT charge controller. N_s = 1 panel/string Determine the number of parallel strings (N_p). N_p = N_totalN_s = 4 panels1 panel/string = 4 strings The module configuration is 4 total panels, with 1 panel in series per string and 4 strings in parallel. Step 3: Calculate Battery Bank Sizing Given: Daily Energy Requirement (E_L): 4.8 kWh/day System Voltage (V_sys): 24 V DC Autonomy: 2 days Depth of Discharge (DOD): 50\% = 0.5 First, calculate the daily energy requirement in Amp-hours (Ah). E_L, Ah = E_L × 1000 Wh/kWhV_sys = 4.8 kWh/day × 1000 Wh/kWh24 V = 200 Ah/day Now, calculate the required battery bank capacity, considering autonomy and DOD. Battery Capacity (Ah) = E_L, Ah × AutonomyDOD = 200 Ah/day × 2 days0.5 = 800 Ah The required battery bank capacity is 800 Ah. Step 4: Determine Charge Controller Minimum Current Rating Given: Number of parallel strings (N_p): 4 Solar Panel Current at Max Power (I_mp): 9.38 A Safety Factor: 1.25 (standard practice for continuous current) Calculate the maximum current from the solar array. I_array, max = N_p × I_mp = 4 strings × 9.38 A/string = 37.52 A Determine the minimum current rating for the Charge Controller, applying a safety factor. Charge Controller Rating = I_array, max × Safety Factor = 37.52 A × 1.25 = 46.9 A The minimum current rating required for the Charge Controller is 46.9 A. That's 2 down. 3 left today — send the next one.

Accepted Answer · 2026-05-26T18:50:17.773Z

Step 1: Calculate Total Array Capacity First, determine the total daily energy that the solar array must generate, accounting for system losses. E_generated = Daily Energy RequirementSystem Efficiency = 4.8 kWh/day0.8 = 6 kWh/day = 6000 Wh/day Next, calculate the total Watt-peak (Wp) required for the solar array using the average peak sun hours (PSH). P_array = E_generatedPSH = 6000 Wh/day5 hours/day = 1200 Wp The total array capacity required is 1200 Wp. Step 2: Calculate Module Configuration Given: Total Array Capacity (P_array): 1200 Wp Solar Panel Max Power (P_max): 300 Wp System Voltage (V_sys): 24 V DC Solar Panel Voltage at Max Power (V_mp): 32 V Calculate the total number of panels (N_total). N_total = P_arrayP_max, panel = 1200 Wp300 Wp/panel = 4 panels Determine the number of panels in series (N_s). For a 24V system, a single panel with V_mp = 32 V is suitable for charging via an MPPT charge controller. N_s = 1 panel/string Determine the number of parallel strings (N_p). N_p = N_totalN_s = 4 panels1 panel/string = 4 strings The module configuration is 4 total panels, with 1 panel in series per string and 4 strings in parallel. Step 3: Calculate Battery Bank Sizing Given: Daily Energy Requirement (E_L): 4.8 kWh/day System Voltage (V_sys): 24 V DC Autonomy: 2 days Depth of Discharge (DOD): 50\% = 0.5 First, calculate the daily energy requirement in Amp-hours (Ah). E_L, Ah = E_L × 1000 Wh/kWhV_sys = 4.8 kWh/day × 1000 Wh/kWh24 V = 200 Ah/day Now, calculate the required battery bank capacity, considering autonomy and DOD. Battery Capacity (Ah) = E_L, Ah × AutonomyDOD = 200 Ah/day × 2 days0.5 = 800 Ah The required battery bank capacity is 800 Ah. Step 4: Determine Charge Controller Minimum Current Rating Given: Number of parallel strings (N_p): 4 Solar Panel Current at Max Power (I_mp): 9.38 A Safety Factor: 1.25 (standard practice for continuous current) Calculate the maximum current from the solar array. I_array, max = N_p × I_mp = 4 strings × 9.38 A/string = 37.52 A Determine the minimum current rating for the Charge Controller, applying a safety factor. Charge Controller Rating = I_array, max × Safety Factor = 37.52 A × 1.25 = 46.9 A The minimum current rating required for the Charge Controller is 46.9 A. That's 2 down. 3 left today — send the next one.
