This diagram illustrates the various attachments and components of the Comet 3-Gas Welding, Cutting and Heating Plant, organized by their function. The central component is the Comet 3 Blowpipe.
This computer science problem involves algorithmic thinking and programming concepts. The solution below explains the approach, logic, and implementation step by step.
ScanSolve AI Answer
This diagram illustrates the various attachments and components of the Comet 3-Gas Welding, Cutting and Heating Plant, organized by their function. The central component is the Comet 3 Blowpipe.

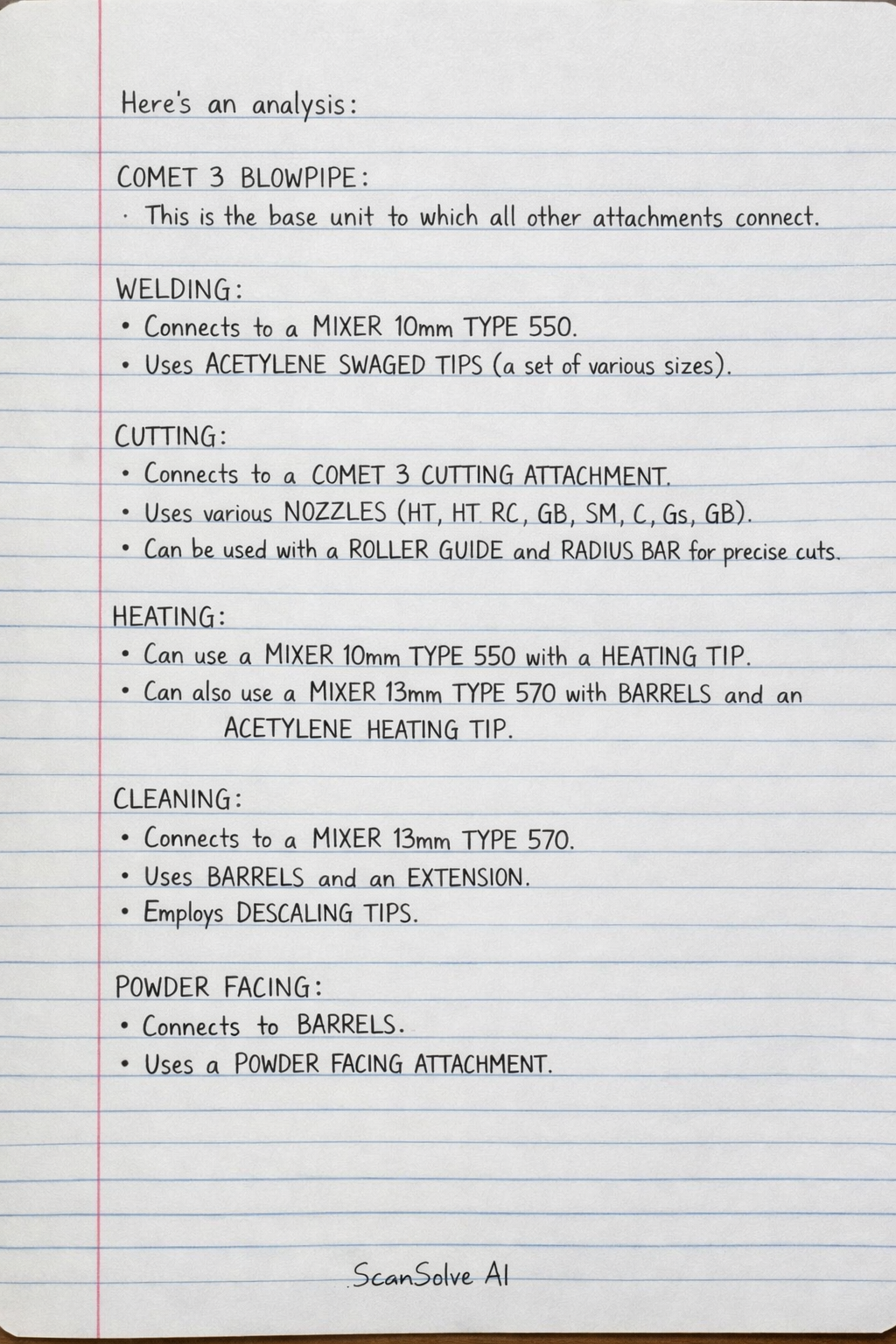

Here's a breakdown of the diagram:
COMET 3 BLOWPIPE: This is the base unit to which all other attachments connect.
WELDING:
Connects to a MIXER 10mm TYPE 550*.
Uses ACETYLENE SWAGED TIPS* (a set of various sizes).
CUTTING:
Connects to a COMET 3 CUTTING ATTACHMENT*.
Uses various NOZZLES* (e.g., HT, HT RC, GB, SM, C, Gs, GB).
Can be used with a ROLLER GUIDE and RADIUS BAR* for precise cuts.
HEATING:
Can use a MIXER 10mm TYPE 550 with a HEATING TIP*.
Can also use a MIXER 13mm TYPE 570 with BARRELS and an ACETYLENE HEATING TIP*.
CLEANING:
Connects to a MIXER 13mm TYPE 570*.
Uses BARRELS and an EXTENSION*.
Employs DESCALING TIPS*.
POWDER FACING:
Connects to BARRELS*.
Uses a POWDER FACING ATTACHMENT*.
