Explain the three Boolean algebra laws using ORing and ANDing, and explain logic gates in terms of the number system.

ScanSolve AI Tutor · Accepted Answer

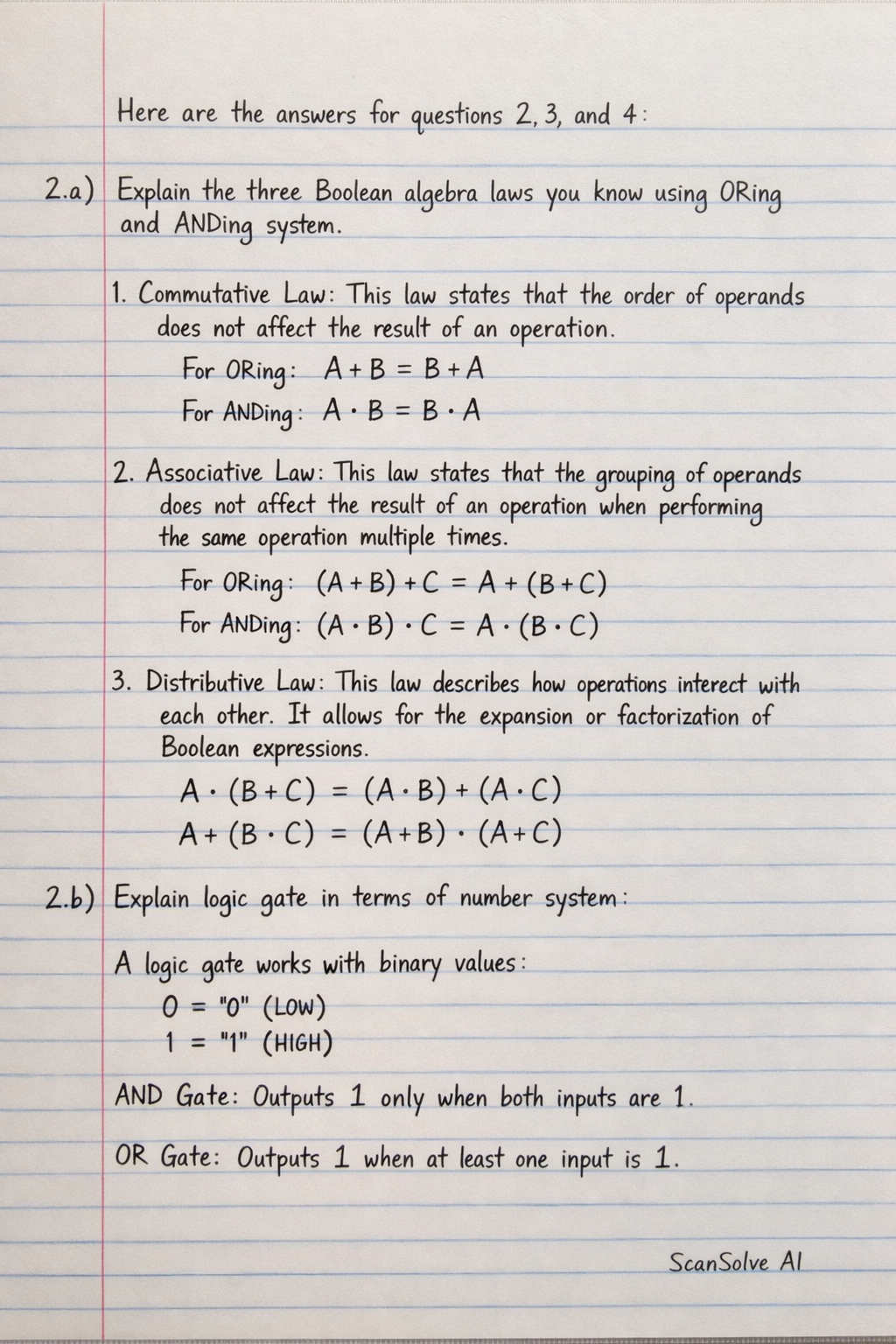

Here are the answers for questions 2, 3, and 4:

2.

a) Explain the three Boolean algebra laws you know using ORing and ANDing system.

Commutative Law: This law states that the order of operands does not affect the result of an operation.
- For ORing: $A + B = B + A$
- For ANDing: $A \cdot B = B \cdot A$
Associative Law: This law states that the grouping of operands does not affect the result of an operation when performing the same operation multiple times.
- For ORing: $(A + B) + C = A + (B + C)$
- For ANDing: $(A \cdot B) \cdot C = A \cdot (B \cdot C)$
Distributive Law: This law describes how operations interact with each other. It allows for the expansion or factorization of Boolean expressions.
- $A \cdot (B + C) = (A \cdot B) + (A \cdot C)$
- $A + (B \cdot C) = (A + B) \cdot (A + C)$

b) Explain logic gate in terms of number system.

A logic gate operates within the binary number system, which uses only two digits: 0 and 1. These digits represent the two possible states of an electrical signal (e.g., 0 for low voltage/off, 1 for high voltage/on). Logic gates take one or more binary inputs and produce a single binary output based on a specific Boolean function, effectively performing arithmetic or logical operations on these binary numbers.

3. Simplify the following Boolean algebra.

i) $A + \bar{A}B + A + B$

Apply the Idempotence Law ( $X+X=X$ ) for $A+A$ .
$A + \bar{A}B + A + B = A + \bar{A}B + B$
Apply the Absorption Law ( $X + \bar{X}Y = X+Y$ ).
$A + \bar{A}B + B = A + B$
The simplified expression is $\boxed{A+B}$ .

ii) $Z = AB + A(B+C) + B(B+C)$
Apply the Distributive Law ( $X(Y+Z) = XY+XZ$ ).
$Z = AB + AB + AC + BB + BC$
Apply the Idempotence Law ( $X+X=X$ and $XX=X$ ).
$Z = AB + AC + B + BC$
Factor out B from terms containing B.
$Z = B(A+1) + AC + BC$
Apply the Identity Law ( $X+1=1$ ).
$Z = B(1) + AC + BC$ $Z = B + AC + BC$
Factor out B again from terms containing B.
$Z = B(1+C) + AC$
Apply the Identity Law ( $1+X=1$ ).
$Z = B(1) + AC$ $Z = B + AC$
The simplified expression is $\boxed{B+AC}$ .

iii) $F = A + \bar{A}BC + \bar{A}\bar{B}C$
Factor out $\bar{A}C$ from the last two terms.
$F = A + \bar{A}C(B + \bar{B})$
Apply the Complement Law ( $B + \bar{B} = 1$ ).
$F = A + \bar{A}C(1)$
Apply the Identity Law ( $X \cdot 1 = X$ ).
$F = A + \bar{A}C$
Apply the Absorption Law ( $X + \bar{X}Y = X+Y$ ).
$F = A + C$
The simplified expression is $\boxed{A+C}$ .

4. Form the truth table using the Boolean expression of the following:

i) $F = A + \bar{A}BC + \bar{A}\bar{B}C$
From 3(iii), we simplified this expression to $F = A+C$ . We will use this simplified form to construct the truth table.

A C F = A+C
0 0 0
0 1 1
1 0 1
1 1 1

ii) $Z = AB + A(B+C) + B(B+C)$
From 3(ii), we simplified this expression to $Z = B+AC$ . We will use this simplified form to construct the truth table.

A B C AC Z = B+AC
0 0 0 0 0
0 0 1 0 0
0 1 0 0 1
0 1 1 0 1
1 0 0 0 0
1 0 1 1 1
1 1 0 0 1
1 1 1 1 1
