SECTION A – Essay and contextual questions. QUESTION 1 AN ABANDONED BUNDLE

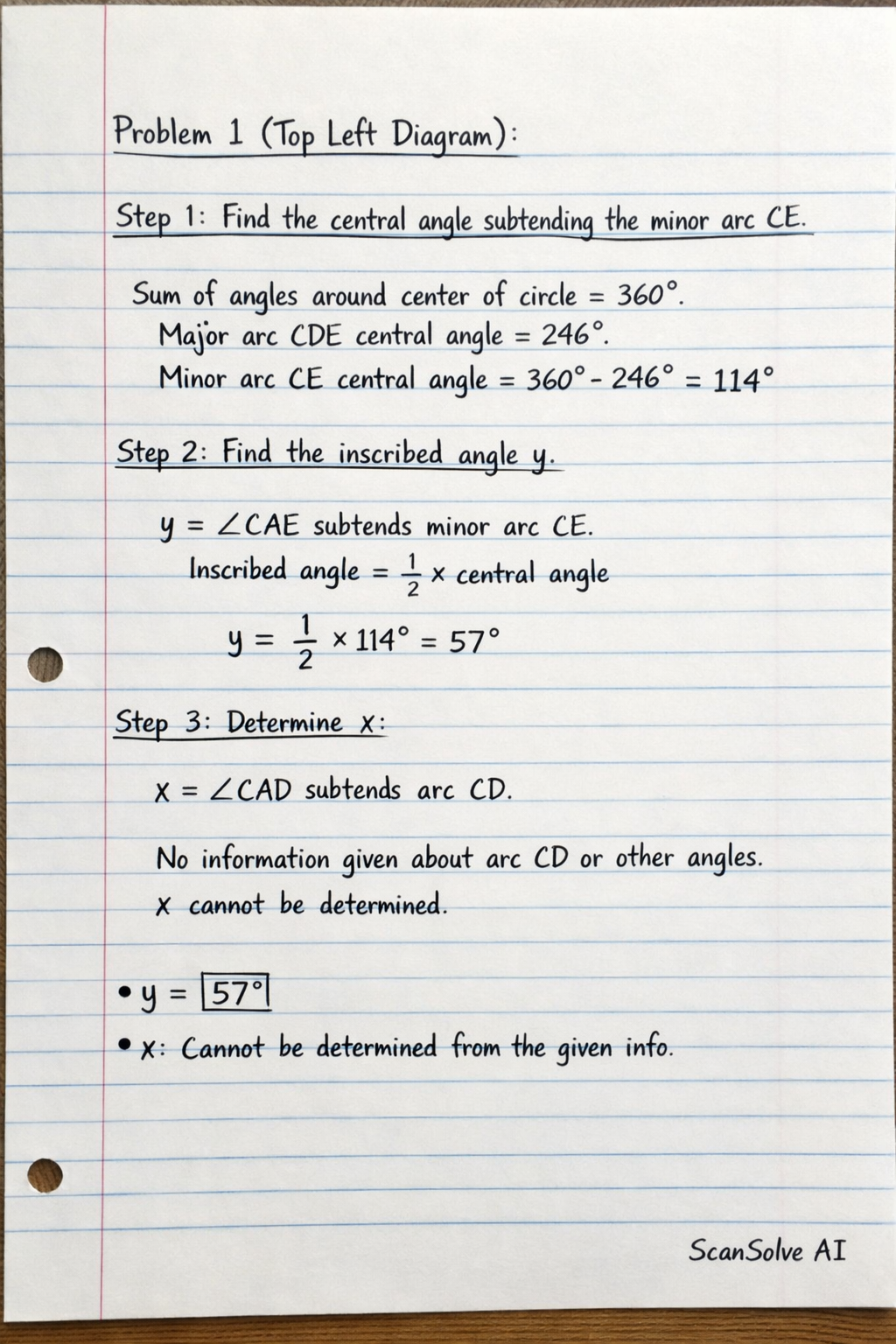

The sum of angles around the center of a circle is $360^\circ$. The major arc CDE has a central angle of $246^\circ$.

$$\text{Minor arc CE central angle} = 360^\circ - 246^\circ = 114^\circ$$

The inscribed angle $y = \angle CAE$ subtends the minor arc CE. An inscribed angle is half the measure of its subtended arc's central angle.

$$y = \frac{1}{2} \times 114^\circ = 57^\circ$$

The angle $x = \angle CAD$ subtends arc CD. There is no information given in the diagram (such as the measure of arc CD or another angle subtending it) to determine its value.

• $y = \boxed{57^\circ}$
• $x$: Cannot be determined from the given information.

** (Cyclic Quadrilateral FCDE):**
The figure FCDE is a cyclic quadrilateral.

We are given $\angle FED = 60^\circ$. Its opposite angle is $\angle FCD$.

$$\angle FCD + \angle FED = 180^\circ$$ $$\angle FCD + 60^\circ = 180^\circ$$ $$\angle FCD = 180^\circ - 60^\circ = 120^\circ$$

We are given $\angle CFE = 3y$ and $\angle CDE = 2x$ (assuming $2x$ represents the entire angle at vertex D, which is the standard interpretation for such problems).

$$\angle CFE + \angle CDE = 180^\circ$$ $$3y + 2x = 180^\circ$$

This equation relates $x$ and $y$. However, with only one equation and two unknown variables ($x$ and $y$), unique numerical values for $x$ and $y$ cannot be determined from the given information.

• The relationship between $x$ and $y$ is $\boxed{2x + 3y = 180^\circ}$.
• Unique values for $x$ and $y$ cannot be determined from the given information.
