The question describes a balanced delta connected system. In a balanced delta connection, the line voltage is equal to the phase voltage, and the line current is related to the phase current by a fact

Geography

ScanSolve AI Answer

Answer

C. 3Iphase\text{C. } \sqrt{3} I_{\text{phase}}

Step-by-step solution

3 steps
  1. Identify the circuit type and relevant relationships.

    The question describes a balanced delta connected system. In a balanced delta connection, the line voltage is equal to the phase voltage, and the line current is related to the phase current by a factor of 3\sqrt{3}.

  2. State the relationship between line current and phase current in a delta connection.

    For a balanced delta connected system, the line current (ILI_L) is 3\sqrt{3} times the phase current (IphaseI_{\text{phase}}).

    IL=3IphaseI_L = \sqrt{3} I_{\text{phase}}
  3. Compare with the given options.

    This relationship matches option C.

    The line current in a balanced delta connected system is C. 3Iphase\text{C. } \sqrt{3} I_{\text{phase}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

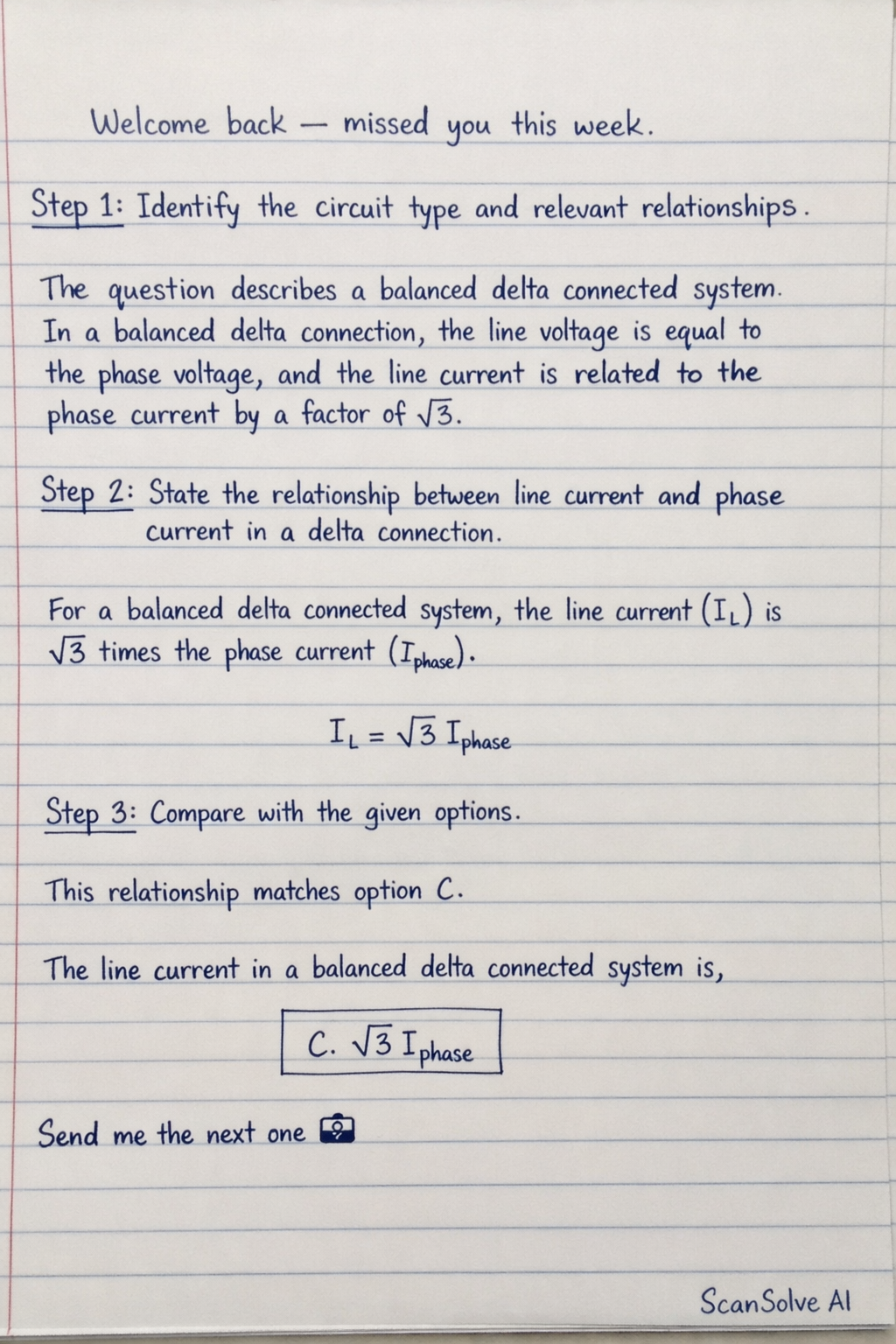

Handwritten step-by-step solution preview
