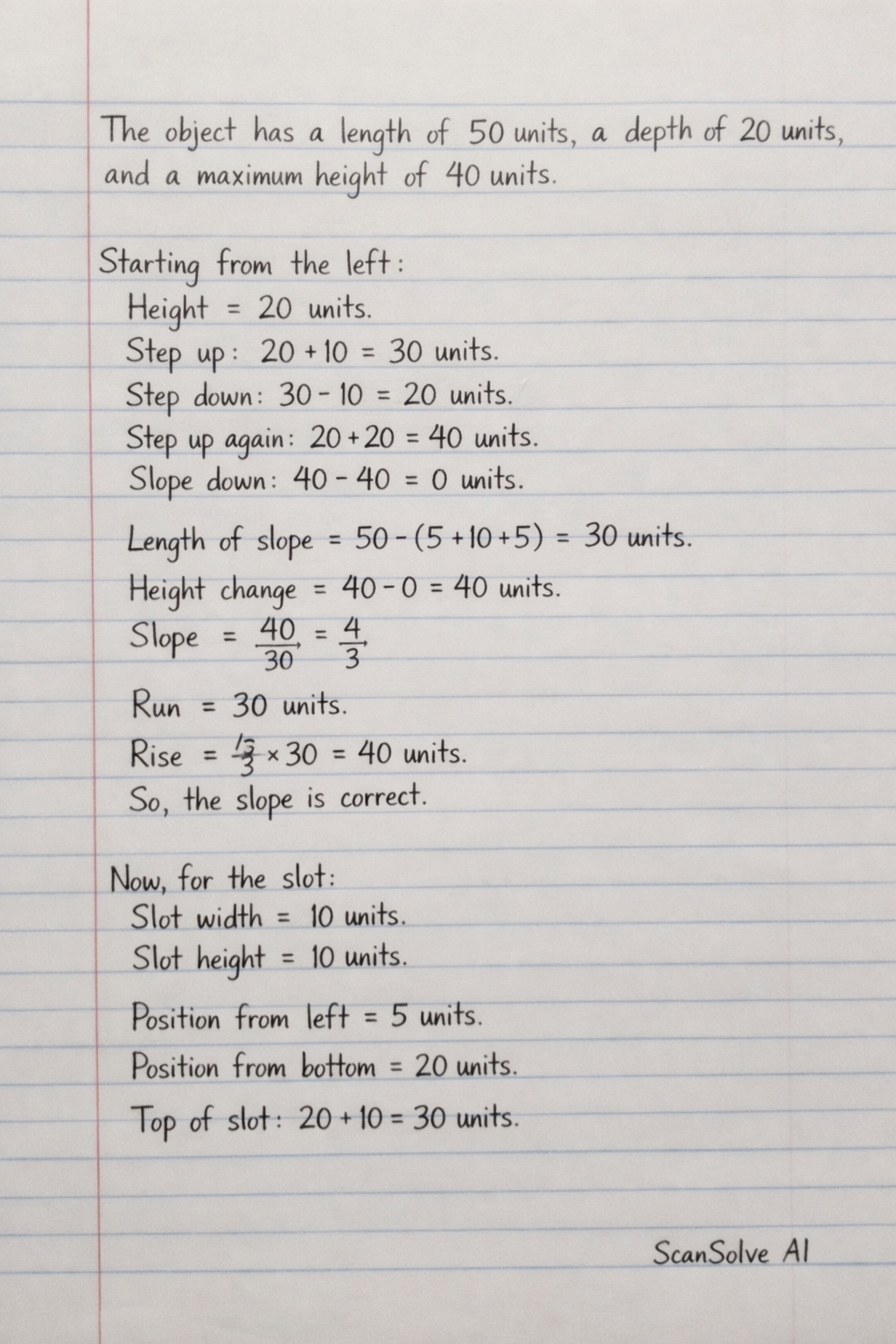

Based on the orthographic projections provided: The top-left view is the FRONT VIEW. The bottom-left view is the PLAN (Top View). The top-right view is the END VIEW (Right Side View). The assembled figure is a solid object with a length of 50 units, a depth of 20 units, and a maximum height of 40 units. Its front profile features a stepped top surface: starting from the left at a height of 20 units, it steps up to 30 units, then down to 20 units, then up to 40 units, before sloping linearly down to the bottom-right corner. A rectangular slot, 10 units wide and 10
