We read your photo as:

Calculate the area of the composite shapes shown below. Round your answers to two decimal places.

Mathematics

ScanSolve AI Answer

Step-by-step solution

26 steps

Here are the areas for each figure:

1)

  1. Divide the shape into a rectangle and a semicircle.

    The rectangle has a width of 8 ft8 \text{ ft} and a height of 12 ft12 \text{ ft}.
    The semicircle has a diameter of 8 ft8 \text{ ft}, so its radius is r=82=4 ftr = \frac{8}{2} = 4 \text{ ft}.

  2. Calculate the area of the rectangle.

    Arectangle=length×width=12 ft×8 ft=96 ft2A_{\text{rectangle}} = \text{length} \times \text{width} = 12 \text{ ft} \times 8 \text{ ft} = 96 \text{ ft}^2

  3. Calculate the area of the semicircle.

    The area of a full circle is πr2\pi r^2. The area of a semicircle is 12πr2\frac{1}{2} \pi r^2.

    Asemicircle=12π(4 ft)2=12π(16 ft2)=8π ft2≈8×3.14159 ft2≈25.1327 ft2A_{\text{semicircle}} = \frac{1}{2} \pi (4 \text{ ft})^2 = \frac{1}{2} \pi (16 \text{ ft}^2) = 8\pi \text{ ft}^2 \approx 8 \times 3.14159 \text{ ft}^2 \approx 25.1327 \text{ ft}^2

  4. Add the areas to find the total area.

    Atotal=Arectangle+Asemicircle=96 ft2+25.1327 ft2=121.1327 ft2A_{\text{total}} = A_{\text{rectangle}} + A_{\text{semicircle}} = 96 \text{ ft}^2 + 25.1327 \text{ ft}^2 = 121.1327 \text{ ft}^2

  5. Round to two decimal places.

    Atotal≈121.13 ft2A_{\text{total}} \approx 121.13 \text{ ft}^2

    The area is 121.13 ft2\boxed{\text{121.13 ft}^2}.

    2)

  6. Divide the shape into a rectangle and a triangle.

    The rectangle has a length of 13 in13 \text{ in} and a width of 8 in8 \text{ in}.
    The total length of the figure is 19 in19 \text{ in}. The length of the rectangular part is 13 in13 \text{ in}.
    The base of the triangle is 8 in8 \text{ in} (same as the width of the rectangle).
    The height of the triangle is 19 in−13 in=6 in19 \text{ in} - 13 \text{ in} = 6 \text{ in}.

  7. Calculate the area of the rectangle.

    Arectangle=length×width=13 in×8 in=104 in2A_{\text{rectangle}} = \text{length} \times \text{width} = 13 \text{ in} \times 8 \text{ in} = 104 \text{ in}^2

  8. Calculate the area of the triangle.

    Atriangle=12×base×height=12×8 in×6 in=24 in2A_{\text{triangle}} = \frac{1}{2} \times \text{base} \times \text{height} = \frac{1}{2} \times 8 \text{ in} \times 6 \text{ in} = 24 \text{ in}^2

  9. Add the areas to find the total area.

    Atotal=Arectangle+Atriangle=104 in2+24 in2=128 in2A_{\text{total}} = A_{\text{rectangle}} + A_{\text{triangle}} = 104 \text{ in}^2 + 24 \text{ in}^2 = 128 \text{ in}^2

    The area is 128.00 in2\boxed{\text{128.00 in}^2}.

    3)

  10. Divide the T-shaped figure into two rectangles.

    Rectangle 1 (top horizontal part): length 11 cm11 \text{ cm}, height 4 cm4 \text{ cm}.
    Rectangle 2 (bottom vertical part): length 5 cm5 \text{ cm}, height 5 cm5 \text{ cm}.

  11. Calculate the area of Rectangle 1.

    Arectangle 1=11 cm×4 cm=44 cm2A_{\text{rectangle 1}} = 11 \text{ cm} \times 4 \text{ cm} = 44 \text{ cm}^2

  12. Calculate the area of Rectangle 2.

    Arectangle 2=5 cm×5 cm=25 cm2A_{\text{rectangle 2}} = 5 \text{ cm} \times 5 \text{ cm} = 25 \text{ cm}^2

  13. Add the areas to find the total area.

    Atotal=Arectangle 1+Arectangle 2=44 cm2+25 cm2=69 cm2A_{\text{total}} = A_{\text{rectangle 1}} + A_{\text{rectangle 2}} = 44 \text{ cm}^2 + 25 \text{ cm}^2 = 69 \text{ cm}^2

    The area is 69.00 cm2\boxed{\text{69.00 cm}^2}.

    4)

  14. Divide the shape into a semicircle and a triangle.

    The semicircle has a diameter of 8 ft8 \text{ ft}, so its radius is r=82=4 ftr = \frac{8}{2} = 4 \text{ ft}.
    The triangle has a base of 8 ft8 \text{ ft} and a height of 7 ft7 \text{ ft}.

  15. Calculate the area of the semicircle.

    Asemicircle=12πr2=12π(4 ft)2=12π(16 ft2)=8π ft2≈25.1327 ft2A_{\text{semicircle}} = \frac{1}{2} \pi r^2 = \frac{1}{2} \pi (4 \text{ ft})^2 = \frac{1}{2} \pi (16 \text{ ft}^2) = 8\pi \text{ ft}^2 \approx 25.1327 \text{ ft}^2

  16. Calculate the area of the triangle.

    Atriangle=12×base×height=12×8 ft×7 ft=28 ft2A_{\text{triangle}} = \frac{1}{2} \times \text{base} \times \text{height} = \frac{1}{2} \times 8 \text{ ft} \times 7 \text{ ft} = 28 \text{ ft}^2

  17. Add the areas to find the total area.

    Atotal=Asemicircle+Atriangle=25.1327 ft2+28 ft2=53.1327 ft2A_{\text{total}} = A_{\text{semicircle}} + A_{\text{triangle}} = 25.1327 \text{ ft}^2 + 28 \text{ ft}^2 = 53.1327 \text{ ft}^2

  18. Round to two decimal places.

    Atotal≈53.13 ft2A_{\text{total}} \approx 53.13 \text{ ft}^2

    The area is 53.13 ft2\boxed{\text{53.13 ft}^2}.

    5)

  19. Divide the shape into a rectangle and a triangle.

    The rectangle has a length of 7 m7 \text{ m} and a width of 7 m7 \text{ m}.
    The total length of the figure is 11 m11 \text{ m}. The length of the rectangular part is 7 m7 \text{ m}.
    The base of the triangle is 7 m7 \text{ m} (same as the width of the rectangle).
    The height of the triangle is 11 m−7 m=4 m11 \text{ m} - 7 \text{ m} = 4 \text{ m}.

  20. Calculate the area of the rectangle.

    Arectangle=length×width=7 m×7 m=49 m2A_{\text{rectangle}} = \text{length} \times \text{width} = 7 \text{ m} \times 7 \text{ m} = 49 \text{ m}^2

  21. Calculate the area of the triangle.

    Atriangle=12×base×height=12×7 m×4 m=14 m2A_{\text{triangle}} = \frac{1}{2} \times \text{base} \times \text{height} = \frac{1}{2} \times 7 \text{ m} \times 4 \text{ m} = 14 \text{ m}^2

  22. Add the areas to find the total area.

    Atotal=Arectangle+Atriangle=49 m2+14 m2=63 m2A_{\text{total}} = A_{\text{rectangle}} + A_{\text{triangle}} = 49 \text{ m}^2 + 14 \text{ m}^2 = 63 \text{ m}^2

    The area is 63.00 m2\boxed{\text{63.00 m}^2}.

    6)

  23. Divide the L-shaped figure into two rectangles.

    Rectangle 1 (bottom right): length 12 yd12 \text{ yd}, height 6 yd6 \text{ yd}.
    Rectangle 2 (top left): length 6 yd6 \text{ yd}, height 6 yd6 \text{ yd} (total height on the left is 6+6=126+6=12 yd, and the right side is 6 yd, so the top left part has a height of 12−6=612-6=6 yd).

  24. Calculate the area of Rectangle 1.

    Arectangle 1=12 yd×6 yd=72 yd2A_{\text{rectangle 1}} = 12 \text{ yd} \times 6 \text{ yd} = 72 \text{ yd}^2

  25. Calculate the area of Rectangle 2.

    Arectangle 2=6 yd×6 yd=36 yd2A_{\text{rectangle 2}} = 6 \text{ yd} \times 6 \text{ yd} = 36 \text{ yd}^2

  26. Add the areas to find the total area.

    Atotal=Arectangle 1+Arectangle 2=72 yd2+36 yd2=108 yd2A_{\text{total}} = A_{\text{rectangle 1}} + A_{\text{rectangle 2}} = 72 \text{ yd}^2 + 36 \text{ yd}^2 = 108 \text{ yd}^2

    The area is 108.00 yd2\boxed{\text{108.00 yd}^2}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Mathematics Questions

QCalculate the area of the following shapes, correct to one decimal place.QWhat is the area of the composite shape shown below?QCalculate the areas of the shapes.QCalculate the total area of the composite shapes. Shape 1: Square (side 20cm) and Triangle (base…QCalculate the area of a composite shape: a rectangle with a triangle on top and a smaller rectangle…
Browse by topic:Geometry
See all Mathematics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

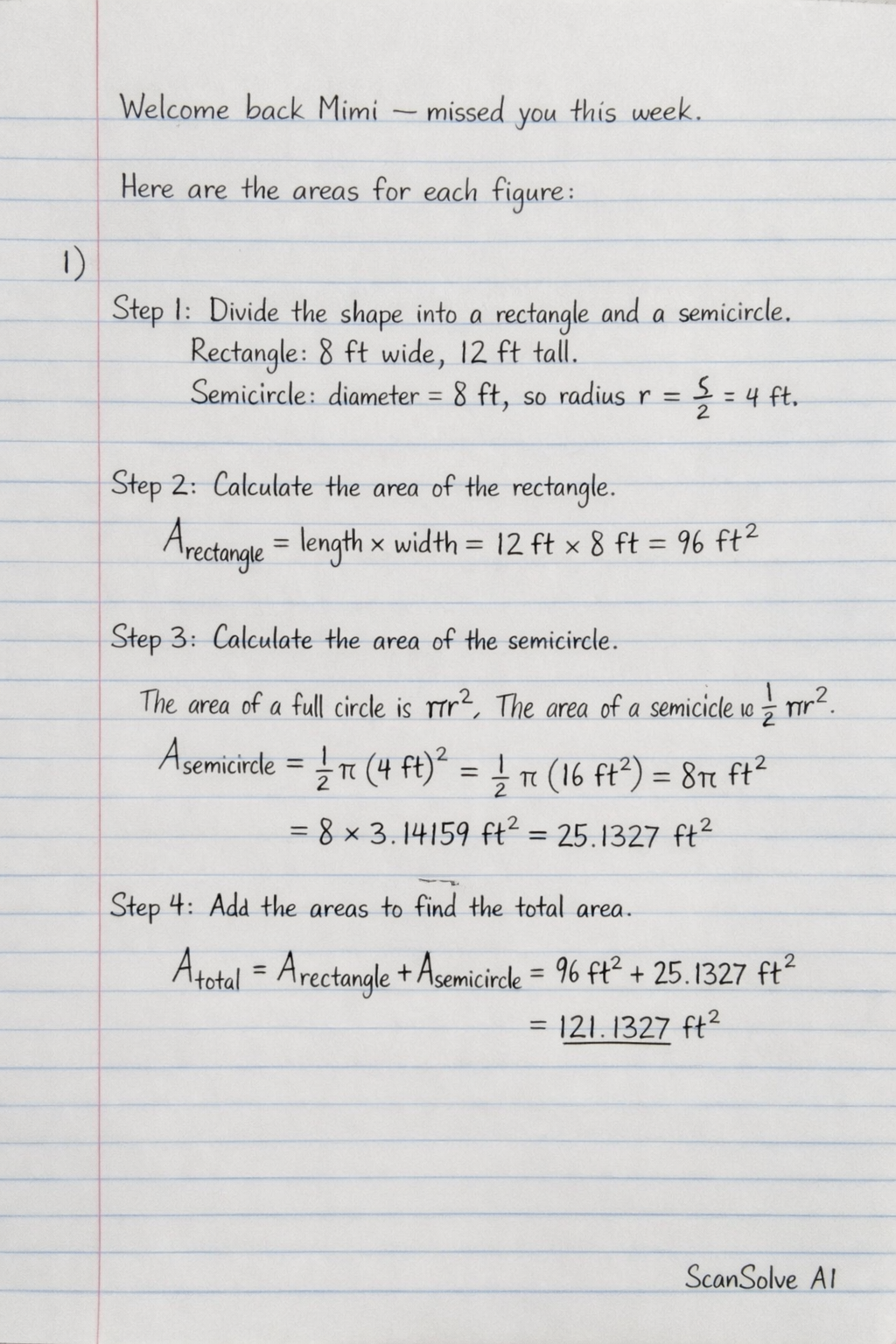

Handwritten step-by-step solution preview
