Based on the provided FFL and IL, calculate the soffit and check the ORG level.

Question

ScanSolve AI Tutor · Accepted Answer

Here are the calculations based on the provided image:

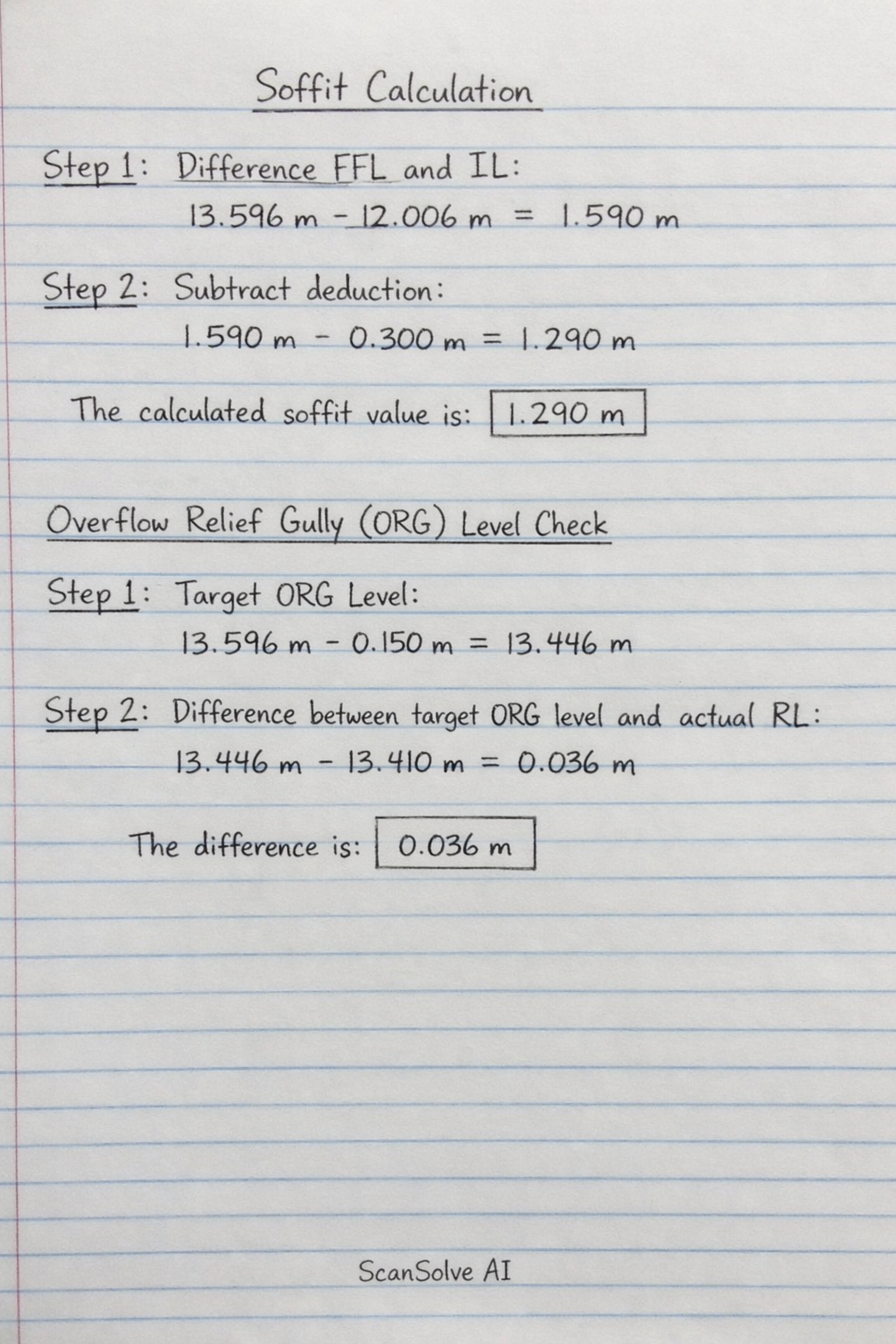

Soffit Calculation

Calculate the difference between the Finished Floor Level (FFL) and the Invert Level (IL).
$13.596\, \text{m} - 12.006\, \text{m} = 1.590\, \text{m}$
Subtract the given deduction from the result to find the soffit value.
$1.590\, \text{m} - 0.300\, \text{m} = 1.290\, \text{m}$
The calculated soffit value is $\boxed{\text{1.290 m}}$ .

Overflow Relief Gully (ORG) Level Check
Calculate the target ORG level by subtracting the deduction from the Finished Floor Level (FFL).
$13.596\, \text{m} - 0.150\, \text{m} = 13.446\, \text{m}$
Calculate the difference between the target ORG level and the actual Reduced Level (RL) of the ORG.
$13.446\, \text{m} - 13.410\, \text{m} = 0.036\, \text{m}$
The difference between the calculated ORG level and the actual ORG RL is $\boxed{\text{0.036 m}}$ .
