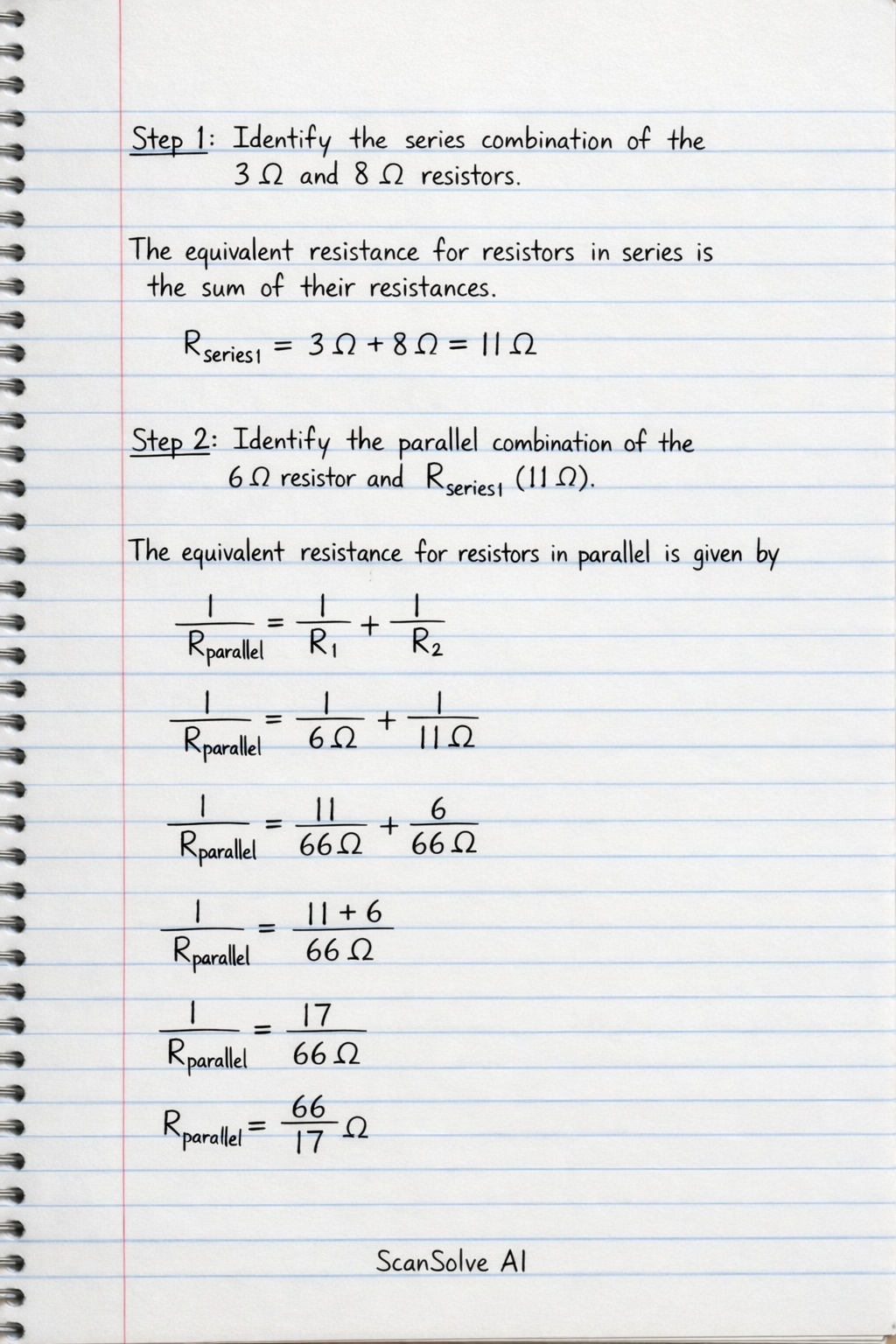

Step 1: Identify the series combination of the 3 \, and 8 \, resistors. The equivalent resistance for resistors in series is the sum of their resistances. R_series1 = 3 \, + 8 \, = 11 \, Step 2: Identify the parallel combination of the 6 \, resistor and R_series1 (11 \, ). The equivalent resistance for resistors in parallel is given by (1)/(R_parallel) = (1)/(R_1) + (1)/(R_2). (1)/(R_parallel) = (1)/(6 \, ) + (1)/(11 \, ) (1)/(R_parallel) = (11)/(66 \, ) + (6)/(66 \, ) (1)/(R_parallel) = (11 + 6)/(66 \, ) (1)/(R_parallel) = (17)/(66 \, ) R_parallel = (66)/(17) \, Step 3: Identify the final series combination of the 2 \, resistor and R_parallel ((66)/(17) \, ). The total equivalent resistance R_1 is the sum of these resistances. R_1 = 2 \, + (66)/(17) \, R_1 = (2 × 17)/(17) \, + (66)/(17) \, R_1 = (34)/(17) \, + (66)/(17) \, R_1 = (34 + 66)/(17) \, R_1 = (100)/(17) \, The equivalent resistance R_1 is: (100)/(17) \,
