In questions 1 to 7, find the resultant of the given vectors. Give also both the magnitude and the direction of the resultants.

Mathematics

ScanSolve AI Answer

Answer

13 km13 \text{ km}

67.38∘ South of East67.38^\circ \text{ South of East}

Step-by-step solution

4 steps

Here's how to find the resultant displacement for question 1:

  1. Represent the displacements as vectors.

    The first displacement is 12 km12 \text{ km} south. Let's represent South as the negative y-direction.
    d1⃗=(0,−12) km\vec{d_1} = (0, -12) \text{ km}

    The second displacement is 5 km5 \text{ km} east. Let's represent East as the positive x-direction.
    d2⃗=(5,0) km\vec{d_2} = (5, 0) \text{ km}

  2. Calculate the resultant vector by adding the component vectors.

    The resultant displacement R⃗\vec{R} is the sum of d1⃗\vec{d_1} and d2⃗\vec{d_2}.

    R⃗=d1⃗+d2⃗=(0+5,−12+0)=(5,−12) km\vec{R} = \vec{d_1} + \vec{d_2} = (0+5, -12+0) = (5, -12) \text{ km}

    This means the resultant displacement is 5 km5 \text{ km} East and 12 km12 \text{ km} South.

  3. Calculate the magnitude of the resultant displacement.

    The magnitude of the resultant vector is found using the Pythagorean theorem:

    ∣R⃗∣=Rx2+Ry2|\vec{R}| = \sqrt{R_x^2 + R_y^2} ∣R⃗∣=(5)2+(−12)2|\vec{R}| = \sqrt{(5)^2 + (-12)^2} ∣R⃗∣=25+144|\vec{R}| = \sqrt{25 + 144} ∣R⃗∣=169|\vec{R}| = \sqrt{169} ∣R⃗∣=13 km|\vec{R}| = 13 \text{ km}
  4. Calculate the direction of the resultant displacement.

    The resultant vector is in the fourth quadrant (East and South). Let θ\theta be the angle measured from the East direction towards the South.

    tan⁡θ=oppositeadjacent=∣Ry∣∣Rx∣=125\tan\theta = \frac{\text{opposite}}{\text{adjacent}} = \frac{|R_y|}{|R_x|} = \frac{12}{5} θ=arctan⁡(125)\theta = \arctan\left(\frac{12}{5}\right) θ≈67.38∘\theta \approx 67.38^\circ

    The direction is 67.38∘67.38^\circ South of East.

    The magnitude of the resultant displacement is 13 km\boxed{13 \text{ km}} and the direction is 67.38∘ South of East\boxed{67.38^\circ \text{ South of East}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

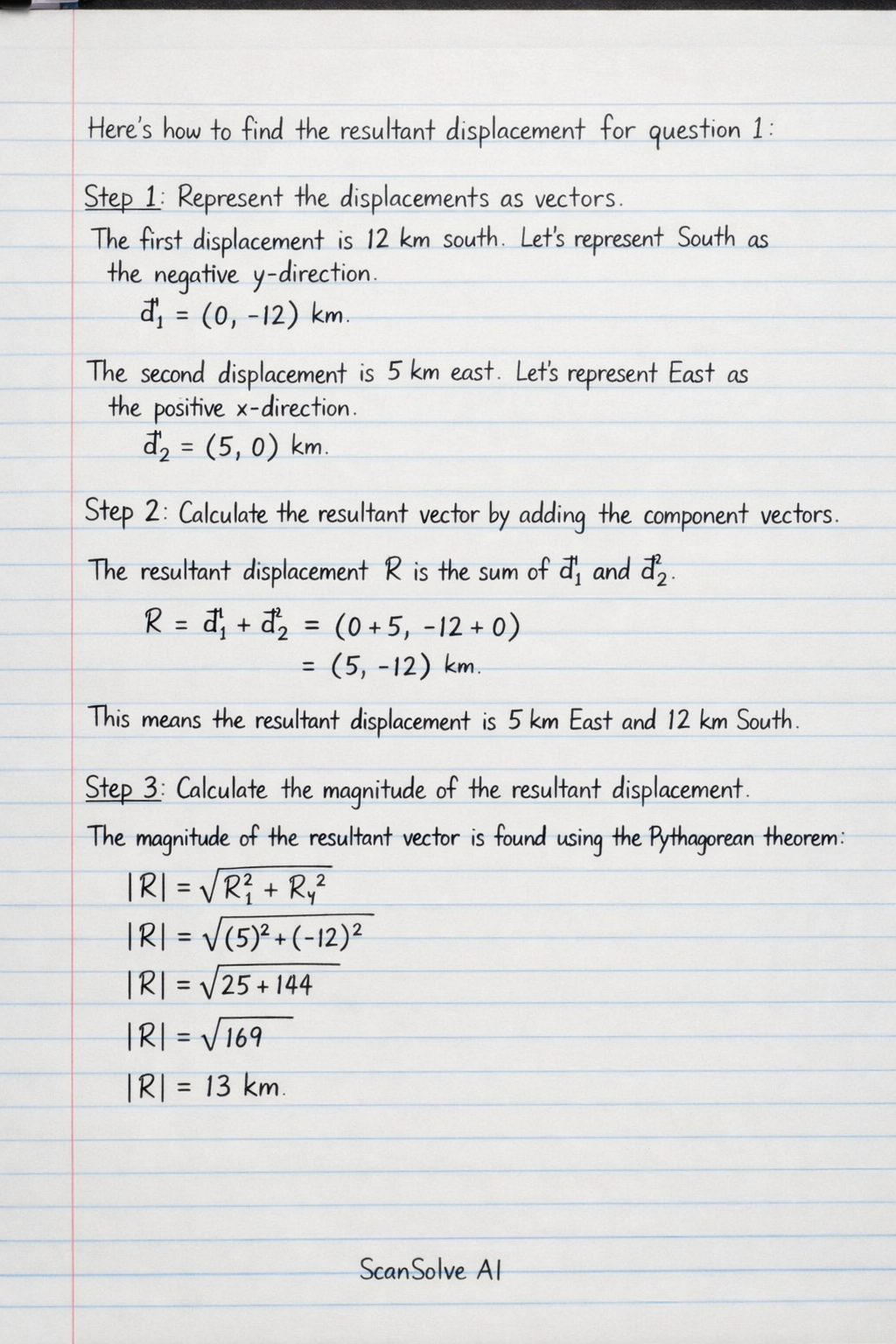

Handwritten step-by-step solution preview
