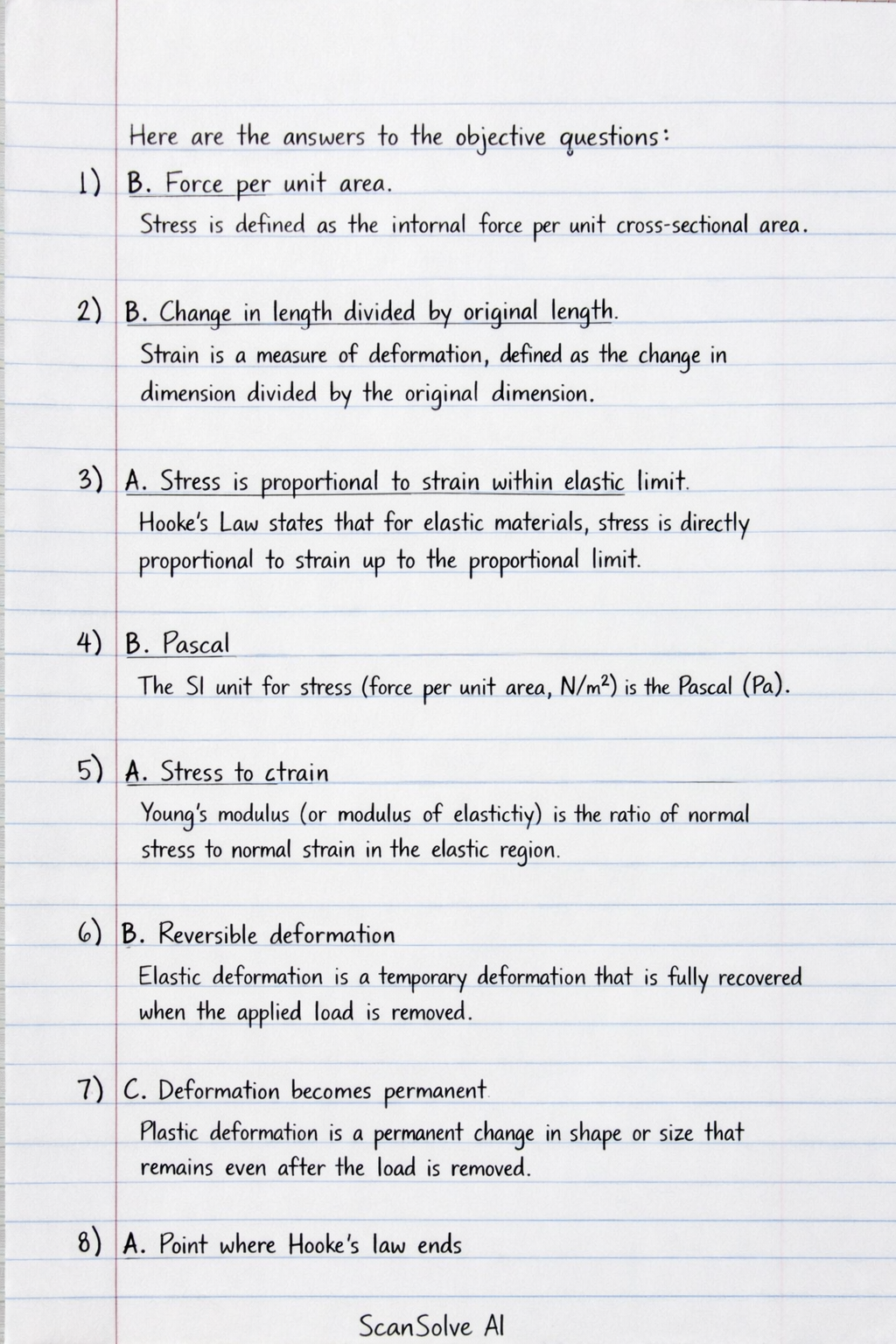

Here are the answers to the objective questions:
- B. Force per unit area Stress is defined as the internal force per unit cross-sectional area.
- B. Change in length divided by original length Strain is a measure of deformation, defined as the change in dimension divided by the original dimension.
- A. Stress is proportional to strain within elastic limit Hooke's Law states that for elastic materials, stress is directly proportional to strain up to the proportional limit.
- B. Pascal The SI unit for stress (force per unit area, ) is the Pascal (Pa).
- A. Stress to strain Young's modulus (or modulus of elasticity) is the ratio of normal stress to normal strain in the elastic region.
- B. Reversible deformation Elastic deformation is a temporary deformation that is fully recovered when the applied load is removed.
- C. Deformation becomes permanent Plastic deformation is a permanent change in shape or size that remains even after the load is removed.
- A. Point where Hooke's law ends The proportional limit is the point on the stress-strain curve up to which stress is directly proportional to strain.
- B. Dimensionless Strain is a ratio of two lengths (e.g., ), so it has no units and is dimensionless.
- B. Lateral strain to longitudinal strain Poisson's ratio is the negative ratio of transverse (lateral) strain to axial (longitudinal) strain.
- A. Parallel to the surface Shear stress acts tangentially or parallel to the surface of the material.
- B. Perpendicular to surface Normal stress acts perpendicular to the surface of the material.
- A. Force distance Bending moment is the product of a force and its perpendicular distance from a reference point.
- C. One hinge and one roller support A simply supported beam is typically supported by a hinge (pin) at one end and a roller at the other.
- B. Midspan For a simply supported beam with a concentrated load at its center, the maximum bending moment occurs at the midspan.
- A. Shear force along beam A Shear Force Diagram (SFD) illustrates how the shear force varies along the length of a beam.
- C. Bending moment A Bending Moment Diagram (BMD) illustrates how the bending moment varies along the length of a beam.
- B. Nm The unit of bending moment is force times distance, which is Newton-meter (Nm).
- B. Point of contraflexure A point of contraflexure is a point in a beam where the bending moment changes sign, indicating a change in the curvature of the beam.
- B. Axis with zero stress The neutral axis in a beam subjected to bending is the axis where the longitudinal stress and strain are zero.
