We read your photo as:

A spring stretches 0.05 m under a force of 40 N. Find the energy stored in it. A spring has a Force constant k = 500 N/m. Find the energy stored in the spring when it is stretched by 0.02 m.

Physics

ScanSolve AI Answer

Step-by-step solution

3 steps

here are the solutions to the problems:

** (Ex 1):**
A spring stretches 0.05 m0.05 \, \text{m} under a force of 40 N40 \, \text{N}. Find the energy stored in it.

  1. Calculate the spring constant (kk) using Hooke's Law.

    The formula for Hooke's Law is F=kxF = kx, where FF is the force, kk is the spring constant, and xx is the extension.

    k=Fxk = \frac{F}{x}

    Substitute the given values:

    k=40 N0.05 mk = \frac{40 \, \text{N}}{0.05 \, \text{m}} k=800 N/mk = 800 \, \text{N/m}
  2. Calculate the energy stored (UU) in the spring.

    The formula for energy stored in a spring is U=12kx2U = \frac{1}{2}kx^2.
    Substitute the calculated spring constant and the given extension:

    U=12(800 N/m)(0.05 m)2U = \frac{1}{2} (800 \, \text{N/m}) (0.05 \, \text{m})^2 U=12(800 N/m)(0.0025 m2)U = \frac{1}{2} (800 \, \text{N/m}) (0.0025 \, \text{m}^2) U=400×0.0025 JU = 400 \times 0.0025 \, \text{J} U=1 JU = 1 \, \text{J}

    The energy stored in the spring is 1 J\boxed{\text{1 J}}.

    ** (Ex 2):**
    A spring has a Force constant k=500 N/mk = 500 \, \text{N/m}. Find the energy stored in the spring when it is stretched by 0.02 m0.02 \, \text{m}.

  3. Calculate the energy stored (UU) in the spring.

    The formula for energy stored in a spring is U=12kx2U = \frac{1}{2}kx^2.
    Substitute the given values:

    U=12(500 N/m)(0.02 m)2U = \frac{1}{2} (500 \, \text{N/m}) (0.02 \, \text{m})^2 U=12(500 N/m)(0.0004 m2)U = \frac{1}{2} (500 \, \text{N/m}) (0.0004 \, \text{m}^2) U=250×0.0004 JU = 250 \times 0.0004 \, \text{J} U=0.1 JU = 0.1 \, \text{J}

    The energy stored in the spring is 0.1 J\boxed{\text{0.1 J}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

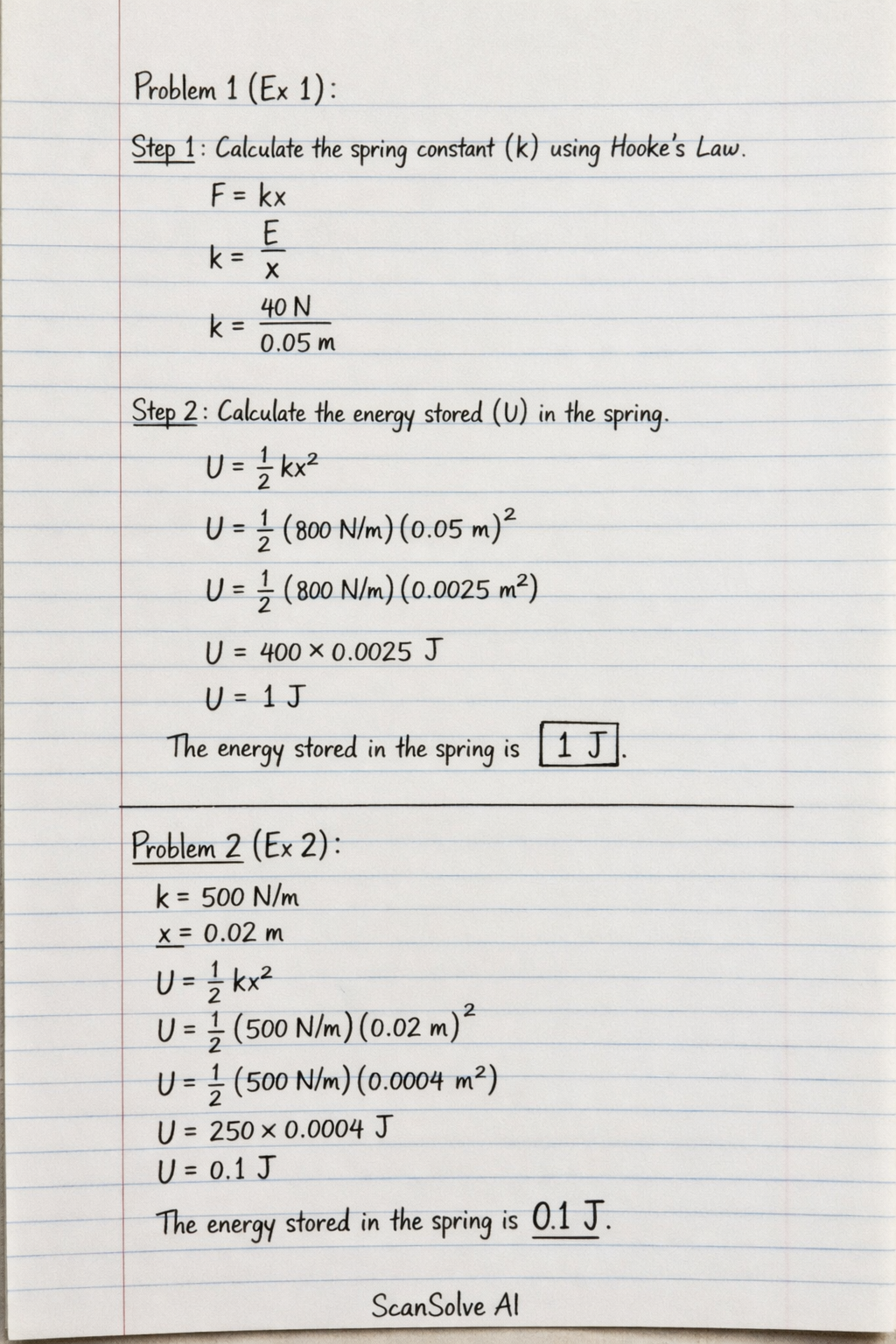

Handwritten step-by-step solution preview
