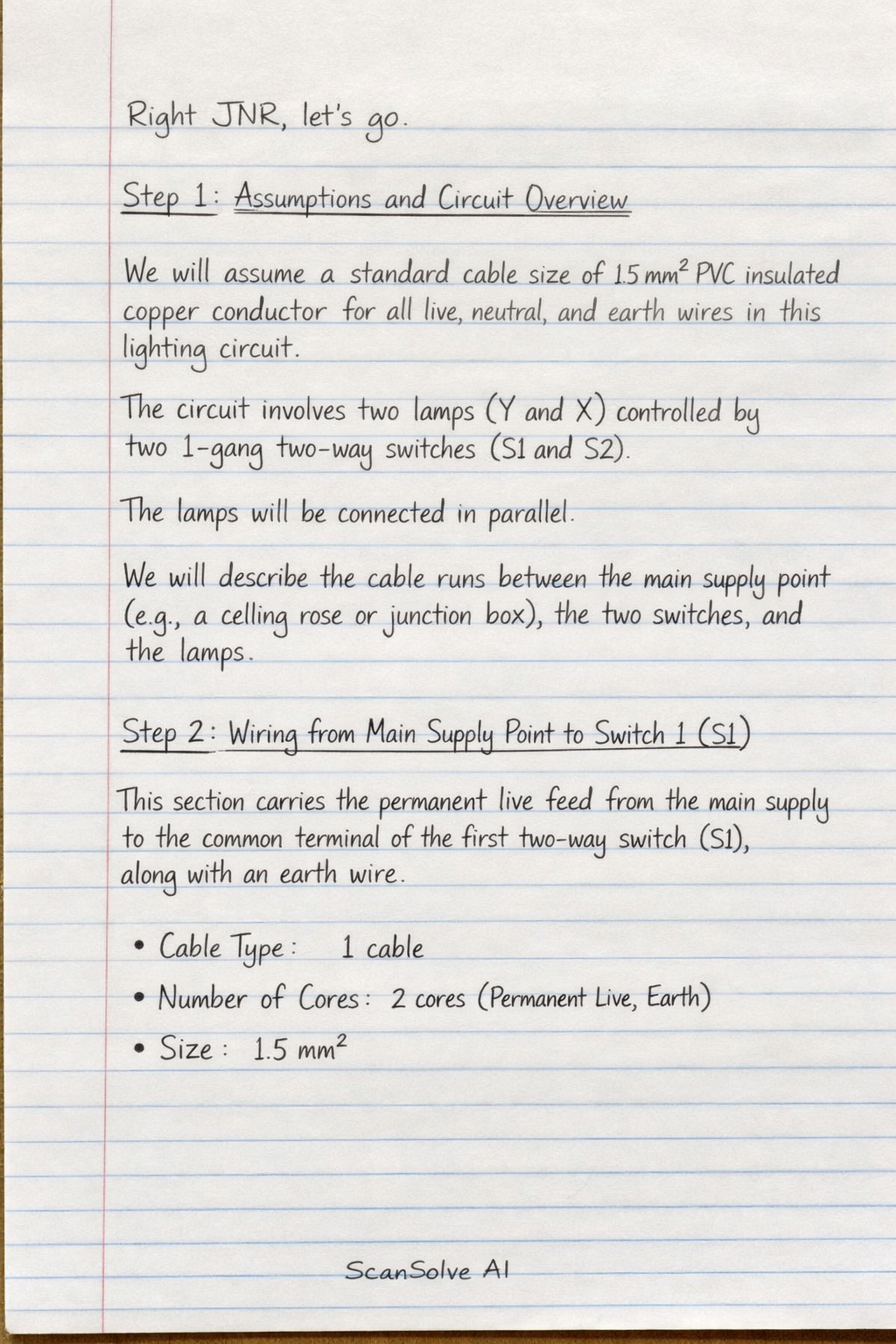

Right JNR, let's go. Step 1: Assumptions and Circuit Overview We will assume a standard cable size of 1.5 mm^2 PVC insulated copper conductor for all live, neutral, and earth wires in this lighting circuit. The circuit involves two lamps (Y and X) controlled by two 1-gang two-way switches (S1 and S2). The lamps will be connected in parallel. We will describe the cable runs between the main supply point (e.g., a ceiling rose or junction box), the two switches, and the lamps. Step 2: Wiring from Main Supply Point to Switch 1 (S1) This section carries the permanent live feed from the main supply to the common terminal of the first two-way switch (S1), along with an earth wire. • Cable Type: 1 cable • Number of Cores: 2 cores (Permanent Live, Earth) • Size: 1.5 mm^2 Step 3: Wiring Between Switch 1 (S1) and Switch 2 (S2) This section connects the two two-way switches. It carries the two 'strapper' (or 'traveler') wires between the switched terminals of S1 and S2, and an earth wire. • Cable Type: 1 cable • Number of Cores: 3 cores (Strapper 1, Strapper 2, Earth) • Size: 1.5 mm^2 Step 4: Wiring from Switch 2 (S2) to Lamps Y and X (via Main Supply Point) This section carries the 'switched live' feed from the common terminal of the second two-way switch (S2) back to the main supply point, which then distributes it to the lamps. An earth wire is also included. • Cable Type: 1 cable • Number of Cores: 2 cores (Switched Live, Earth) • Size: 1.5 mm^2 Step 5: Wiring from Main Supply Point to Lamps Y and X From the main supply point, the switched live (from Step 4), neutral (from the main supply), and earth wires are connected to each lamp. Since lamps Y and X are controlled together, they are wired in parallel. • For Lamp Y: 1 cable, 3 cores (Switched Live, Neutral, Earth), 1.5 mm^2 • For Lamp X: 1 cable, 3 cores (Switched Live, Neutral, Earth), 1.5 mm^2 Here is a summary of the cable requirements for the two-way switching circuit: Main Supply to Switch 1: 1 cable, 2 cores, 1.5 mm^2 Switch 1 to Switch 2: 1 cable, 3 cores, 1.5 mm^2 Switch 2 to Main Supply: 1 cable, 2 cores, 1.5 mm^2 Main Supply to Lamp Y: 1 cable, 3 cores, 1.5 mm^2 Main Supply to Lamp X: 1 cable, 3 cores, 1.5 mm^2 Send me the next one 📸
