Calculate the volume of H2 and O2 evolved at the electrode when Nacl is electrolysed using graphite electrodes at STP when 0.5 F electricity was released.

Chemistry

ScanSolve AI Answer

Step-by-step solution

5 steps

  1. Write the half-reactions for the electrolysis of NaOH\text{NaOH} solution using graphite electrodes.

    At the cathode (reduction): Water is reduced to hydrogen gas and hydroxide ions.

    2H2O(l)+2e−→H2(g)+2OH−(aq)2\text{H}_2\text{O}(l) + 2e^- \to \text{H}_2(g) + 2\text{OH}^-(aq)

    At the anode (oxidation): Hydroxide ions are oxidized to oxygen gas and water.

    4OH−(aq)→O2(g)+2H2O(l)+4e−4\text{OH}^-(aq) \to \text{O}_2(g) + 2\text{H}_2\text{O}(l) + 4e^-

  2. Determine the moles of electrons passed.

    The quantity of electricity released is 0.5 F0.5 \, \text{F}.
    One Faraday (1 F1 \, \text{F}) corresponds to 1 mole of electrons.
    Therefore, moles of electrons passed =0.5 mol e−= 0.5 \, \text{mol } e^-.

  3. Calculate the moles of H2\text{H}_2 produced.

    From the cathode reaction, 2 moles of electrons produce 1 mole of H2\text{H}_2.

    Moles of H2=0.5 mol e−×1 mol H22 mol e−=0.25 mol H2\text{Moles of H}_2 = 0.5 \, \text{mol } e^- \times \frac{1 \, \text{mol H}_2}{2 \, \text{mol } e^-} = 0.25 \, \text{mol H}_2

  4. Calculate the moles of O2\text{O}_2 produced.

    From the anode reaction, 4 moles of electrons produce 1 mole of O2\text{O}_2.

    Moles of O2=0.5 mol e−×1 mol O24 mol e−=0.125 mol O2\text{Moles of O}_2 = 0.5 \, \text{mol } e^- \times \frac{1 \, \text{mol O}_2}{4 \, \text{mol } e^-} = 0.125 \, \text{mol O}_2

  5. Convert moles of gases to volume at STP.

    At STP (Standard Temperature and Pressure), 1 mole of any ideal gas occupies 22.4 L22.4 \, \text{L}.

    Volume of H2\text{H}_2:

    Volume of H2=0.25 mol×22.4 L/mol=5.6 L\text{Volume of H}_2 = 0.25 \, \text{mol} \times 22.4 \, \text{L/mol} = 5.6 \, \text{L}

    Volume of O2\text{O}_2:

    Volume of O2=0.125 mol×22.4 L/mol=2.8 L\text{Volume of O}_2 = 0.125 \, \text{mol} \times 22.4 \, \text{L/mol} = 2.8 \, \text{L}

    The volume of H2\text{H}_2 released is 5.6 L\boxed{\text{5.6 L}} and the volume of O2\text{O}_2 released is 2.8 L\boxed{\text{2.8 L}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Chemistry Questions

QCalculate the volume of oxygen evolved at STP during the electrolysis of acidified water with a…QWhen molten Na hydroxide was electrolysed between inert electrodes, a gas was produced as a product…QWhen molten Na Hydride (NaH) was electrolysed between inert electrodes, a gas was produced. (1F…QDescribe the electrolysis of concentrated sodium chloride solution using graphite electrodes…QCalculate the volume in dm³ of hydrogen produced at s.t.p. during the electrolysis of dilute…
See all Chemistry questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

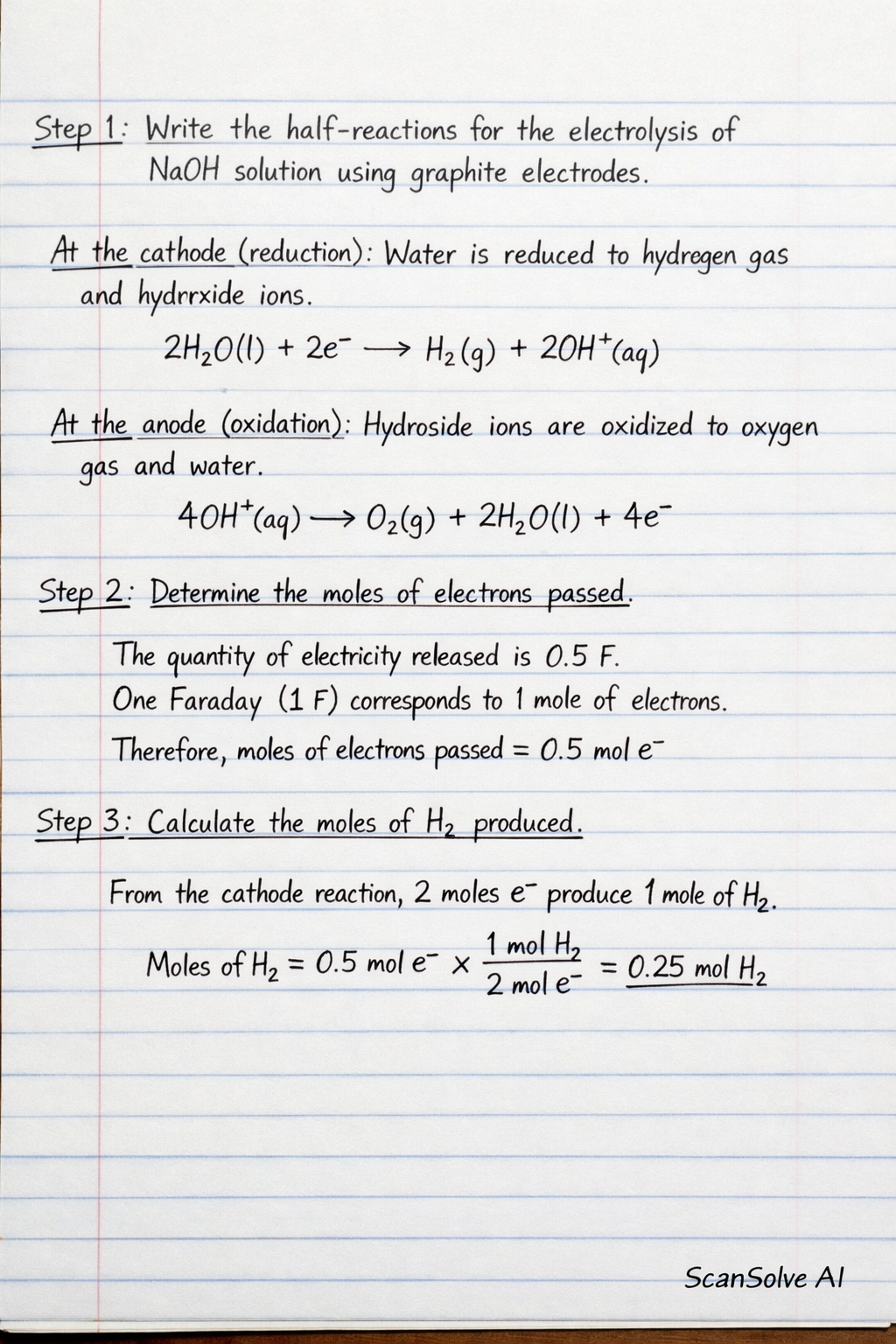

Handwritten step-by-step solution preview
