Calculate the range of wavelength correspondent to the baseband audio frequency range (20Hz-20kHz) and comment on the implications on the size of antenna requirements

Physics

ScanSolve AI Answer

Answer

15 km to 15,000 km\text{15 km to 15,000 km}

Step-by-step solution

2 steps
  1. Calculate the range of wavelengths.

    The baseband audio frequency range is 20 Hz20 \text{ Hz} to 20 kHz20 \text{ kHz}. The speed of electromagnetic waves (speed of light) c=3×108 m/sc = 3 \times 10^8 \text{ m/s}.

    For the lower frequency f1=20 Hzf_1 = 20 \text{ Hz}:

    λ1=cf1\lambda_1 = \frac{c}{f_1} λ1=3×108 m/s20 Hz\lambda_1 = \frac{3 \times 10^8 \text{ m/s}}{20 \text{ Hz}} λ1=1.5×107 m=15,000 km\lambda_1 = 1.5 \times 10^7 \text{ m} = 15,000 \text{ km}

    For the higher frequency f2=20 kHz=20×103 Hzf_2 = 20 \text{ kHz} = 20 \times 10^3 \text{ Hz}:

    λ2=cf2\lambda_2 = \frac{c}{f_2} λ2=3×108 m/s20×103 Hz\lambda_2 = \frac{3 \times 10^8 \text{ m/s}}{20 \times 10^3 \text{ Hz}} λ2=1.5×104 m=15 km\lambda_2 = 1.5 \times 10^4 \text{ m} = 15 \text{ km}

    The range of wavelength is 15 km to 15,000 km\boxed{\text{15 km to 15,000 km}}.

  2. Comment on the implications for antenna requirements.

    Antennas are typically designed to be a significant fraction of the wavelength (e.g., λ2\frac{\lambda}{2} or λ4\frac{\lambda}{4}) for efficient transmission and reception of electromagnetic waves. The calculated wavelengths for the baseband audio frequency range are extremely large, spanning from 15 kilometers to 15,000 kilometers. Building physical antennas of such immense sizes is practically impossible. Therefore, baseband audio signals are not transmitted directly as electromagnetic waves. Instead, they are used to modulate higher-frequency carrier waves, which have much shorter and more manageable wavelengths, allowing for practical antenna sizes.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

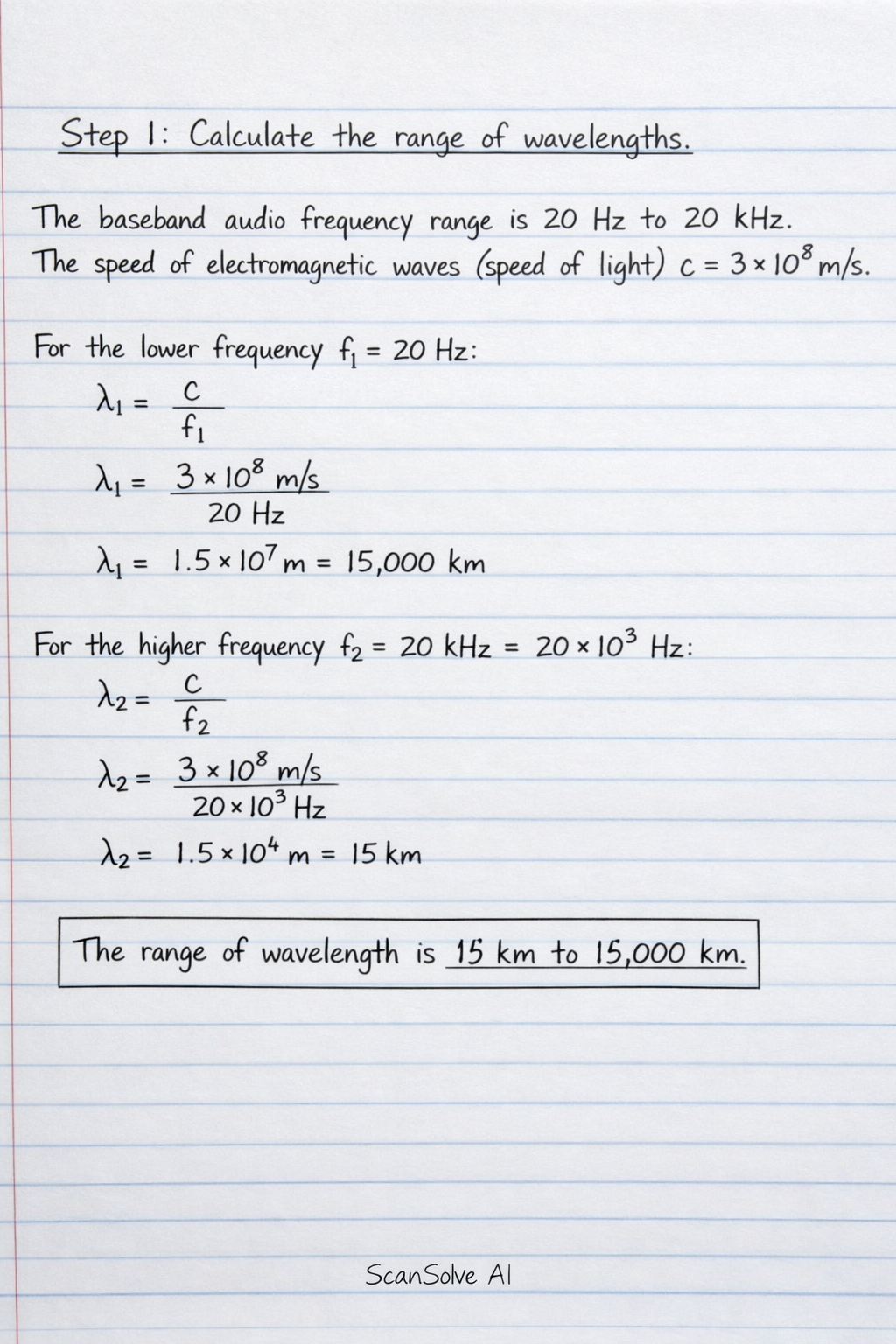

Handwritten step-by-step solution preview
