Explain how to observe control charts, identify in-control and out-of-control processes, and list indicators for each.

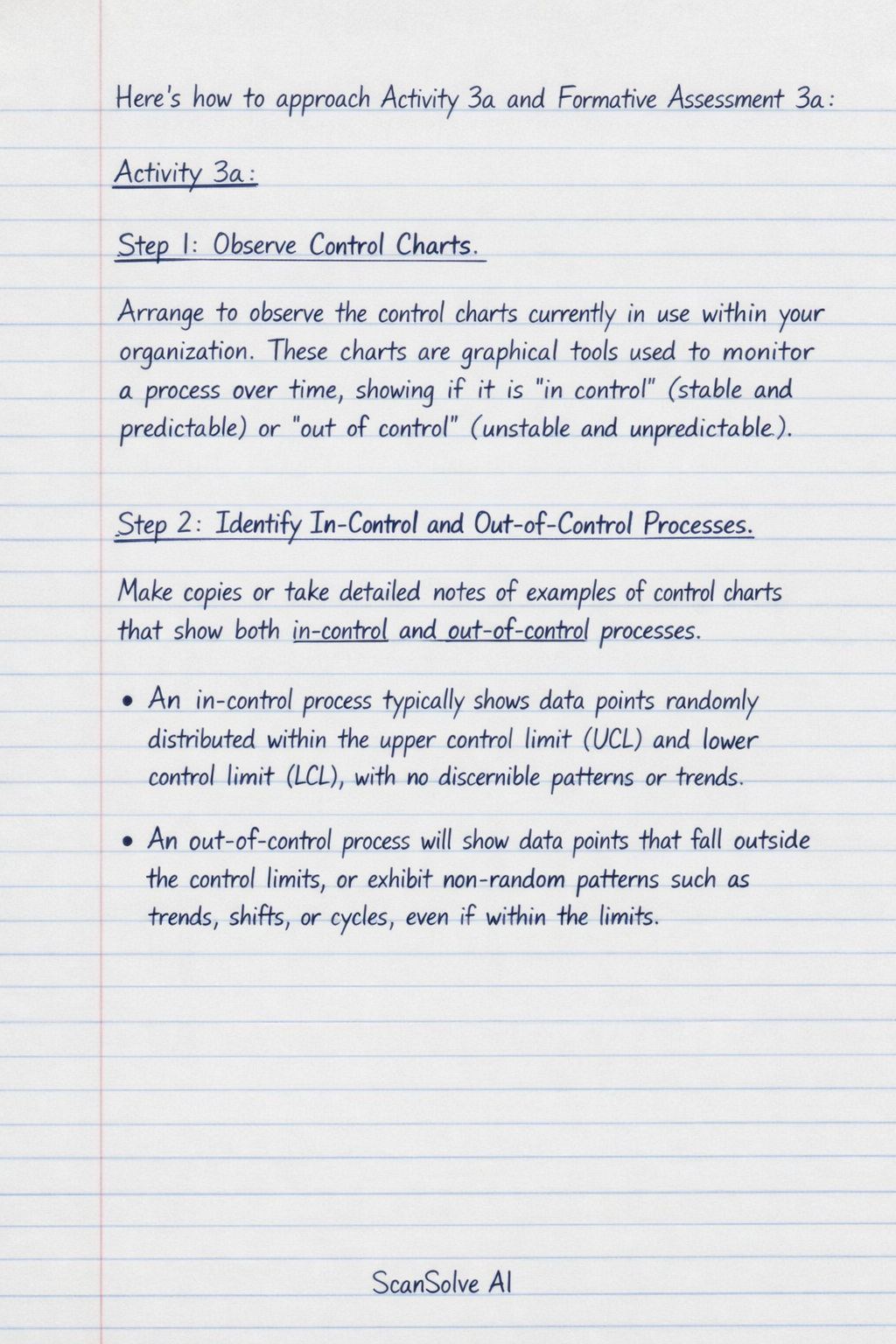

Here's how to approach Activity 3a and Formative Assessment 3a: Activity 3a: This activity focuses on understanding control charts within your organization. Step 1: Observe Control Charts. Arrange to observe the control charts currently in use within your organization. These charts are graphical tools used to monitor a process over time, showing if it is "in control" (stable and predictable) or "out of control" (unstable and unpredictable). Step 2: Identify In-Control and Out-of-Control Processes. Make copies or take detailed notes of examples of control charts that show both in-control and out-of-control processes. • An in-control process typically shows data points randomly distributed within the upper control limit (UCL) and lower control limit (LCL), with no discernible patterns or trends. • An out-of-control process will show data points that fall outside the control limits, or exhibit non-random patterns such as trends, shifts, or cycles, even if within the limits. Step 3: Identify Indicators. For both in-control and out-of-control charts, identify the indicators that signal the state of the process. • Indicators for out-of-control processes include: Any point outside the UCL or LCL. Seven or more consecutive points above or below the centreline. Seven or more consecutive points steadily increasing or decreasing. Non-random patterns like cycles or sudden shifts. • Indicators for in-control processes are the absence of these out-of-control signals, showing random variation within the control limits. Step 4: Notes and Presentation. Compile your observations and findings into comprehensive notes. Be prepared to present these to your facilitator, explaining what you observed, the types of charts used, and how you identified in-control versus out-of-control processes based on the indicators. Formative Assessment 3a: This assessment requires you to apply your understanding of control charts by working with actual data. Step 1: Obtain Data and Produce Charts. Collaborate with the person responsible for producing control charts in your organization. Obtain a set of data from a production line. Using company resources (e.g., quality department computer, statistical software), capture this data and produce the required control charts, specifically an R-chart and an X-bar chart, according to company standards. Step 2: Analyze the R-chart. The R-chart (Range chart) monitors the variability or spread of a process. 1. Centreline (R): This is the average of the sample ranges. To calculate it, sum all the ranges (R_i) from your subgroups and divide by the number of subgroups (k). R = _i=1^k R_ik 2. UCL and LCL values for the R chart: These are calculated using control chart constants (D_3 and D_4) which depend on the subgroup size (n). You will find these constants in a standard control chart constant table. UCL_R = D_4 R LCL_R = D_3 R 3. What the R chart tells you about the process: The R-chart indicates whether the process variability is stable and predictable. If all points are within the control limits and show no non-random patterns, the process variability is in control. If points fall outside the limits or show patterns, the variability is unstable, indicating a need for investigation into factors affecting consistency. Step 3: Analyze the X-bar chart. The X-bar chart (Average chart) monitors the central tendency or average of a process. 1. Centreline (X): This is the grand average of all the sample means. To calculate it, sum all the sample means (X_i) and divide by the number of subgroups (k), or sum all individual data points and divide by the total number of data points. X = _i=1^k X_ik 2. UCL and LCL values for the X-bar chart: These are calculated using the control chart constant A_2, which also depends on the subgroup size (n) and is found in the same constant table. UCL_X = X + A_2 R LCL_X = X - A_2 R 3. What the X-bar chart tells you about the process: The X-bar chart indicates whether the process average is stable and predictable. If all points are within the control limits and show no non-random patterns, the process average is in control. If points fall outside the limits or show patterns, the process average has shifted, indicating a need for investigation into factors affecting the mean output. Step 4: Prepare a Presentation. Based on your collected data, the generated charts, and your analysis of the centreline, UCL, LCL, and process interpretation for both the R-chart and X-bar chart, prepare a presentation. This presentation should clearly explain your findings to your facilitator, supervisor, and the Quality Manager. That's 2 down. 3 left today — send the next one.
