We read your photo as:

A) Identify the Cathode and Anode. b) If a current of 0.5 A was passed through the solution for 20 minutes, determine the volume of Oxygen liberated at STP. (Molar gas volume = 24 dm³)

Chemistry

ScanSolve AI Answer

Answer

b

0.0373 dm30.0373 \text{ dm}^3

Step-by-step solution

4 steps

Here's the solution to your questions:

Part a

On the diagram, identify the Cathode and Anode.

In an electrolytic cell, the electrodes are connected to a power source.

  • The cathode is the negative electrode, connected to the negative terminal of the power supply. Reduction occurs here.
  • The anode is the positive electrode, connected to the positive terminal of the power supply. Oxidation occurs here.

Based on the diagram:

  • The electrode on the left is connected to the negative terminal (shorter line) of the power source, so it is the cathode.
  • The electrode on the right is connected to the positive terminal (longer line) of the power source, so it is the anode.

Part b

0.0373 dm30.0373 \text{ dm}^3

If a current of 0.5 A0.5 \text{ A} was passed through the solution for 20 minutes20 \text{ minutes}, determine the volume of Oxygen liberated at STP. (Molar gas volume =24 dm3= 24 \text{ dm}^3).

The electrolysis of dilute copper(II) sulfate involves the following reaction at the anode (positive electrode), where water is oxidized to produce oxygen gas:

2H2O(l)⟶O2(g)+4H+(aq)+4e−2\text{H}_2\text{O}(\text{l}) \longrightarrow \text{O}_2(\text{g}) + 4\text{H}^+(\text{aq}) + 4\text{e}^-

From the reaction, 4 moles of electrons are required to produce 1 mole of oxygen gas.
We will use Faraday's constant F=96500 C/molF = 96500 \text{ C/mol} as indicated in your notes.

  1. Calculate the total charge (QQ) passed.

    The time must be in seconds.

    t=20 minutes×60 s/minute=1200 st = 20 \text{ minutes} \times 60 \text{ s/minute} = 1200 \text{ s} Q=I×tQ = I \times t Q=0.5 A×1200 sQ = 0.5 \text{ A} \times 1200 \text{ s} Q=600 CQ = 600 \text{ C}

  2. Calculate the number of moles of electrons (nen_e).

    ne=QFn_e = \frac{Q}{F} ne=600 C96500 C/moln_e = \frac{600 \text{ C}}{96500 \text{ C/mol}} ne≈0.0062176 moln_e \approx 0.0062176 \text{ mol}

  3. Calculate the number of moles of Oxygen (nO2n_{\text{O}_2}) produced.

    From the balanced equation, 4 moles of electrons produce 1 mole of O2_2.

    nO2=ne4n_{\text{O}_2} = \frac{n_e}{4} nO2=0.0062176 mol4n_{\text{O}_2} = \frac{0.0062176 \text{ mol}}{4} nO2≈0.0015544 moln_{\text{O}_2} \approx 0.0015544 \text{ mol}

  4. Calculate the volume of Oxygen liberated.

    Given Molar gas volume =24 dm3/mol= 24 \text{ dm}^3/\text{mol}.

    Volume of O2=nO2×Molar gas volume\text{Volume of O}_2 = n_{\text{O}_2} \times \text{Molar gas volume} Volume of O2=0.0015544 mol×24 dm3/mol\text{Volume of O}_2 = 0.0015544 \text{ mol} \times 24 \text{ dm}^3/\text{mol} Volume of O2≈0.0373056 dm3\text{Volume of O}_2 \approx 0.0373056 \text{ dm}^3

    Rounding to three significant figures:

    Volume of O2≈0.0373 dm3\text{Volume of O}_2 \approx \boxed{0.0373 \text{ dm}^3}
Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Chemistry Questions

QCalculate the volume of oxygen evolved at STP during the electrolysis of acidified water with a…QCalculate the volume of oxygen at STP which theoretically could be obtained from 50 cm³ solution of…QDuring the electrolysis of Acidified water, a current of 0.3A was passed for 10 minutes. Calculate…QIn an electrolysis, a current of 200 A was passed through molten oxide of metal Q for 58 minutes and…QCalculate the volume in dm³ of hydrogen produced at s.t.p. during the electrolysis of dilute…
See all Chemistry questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

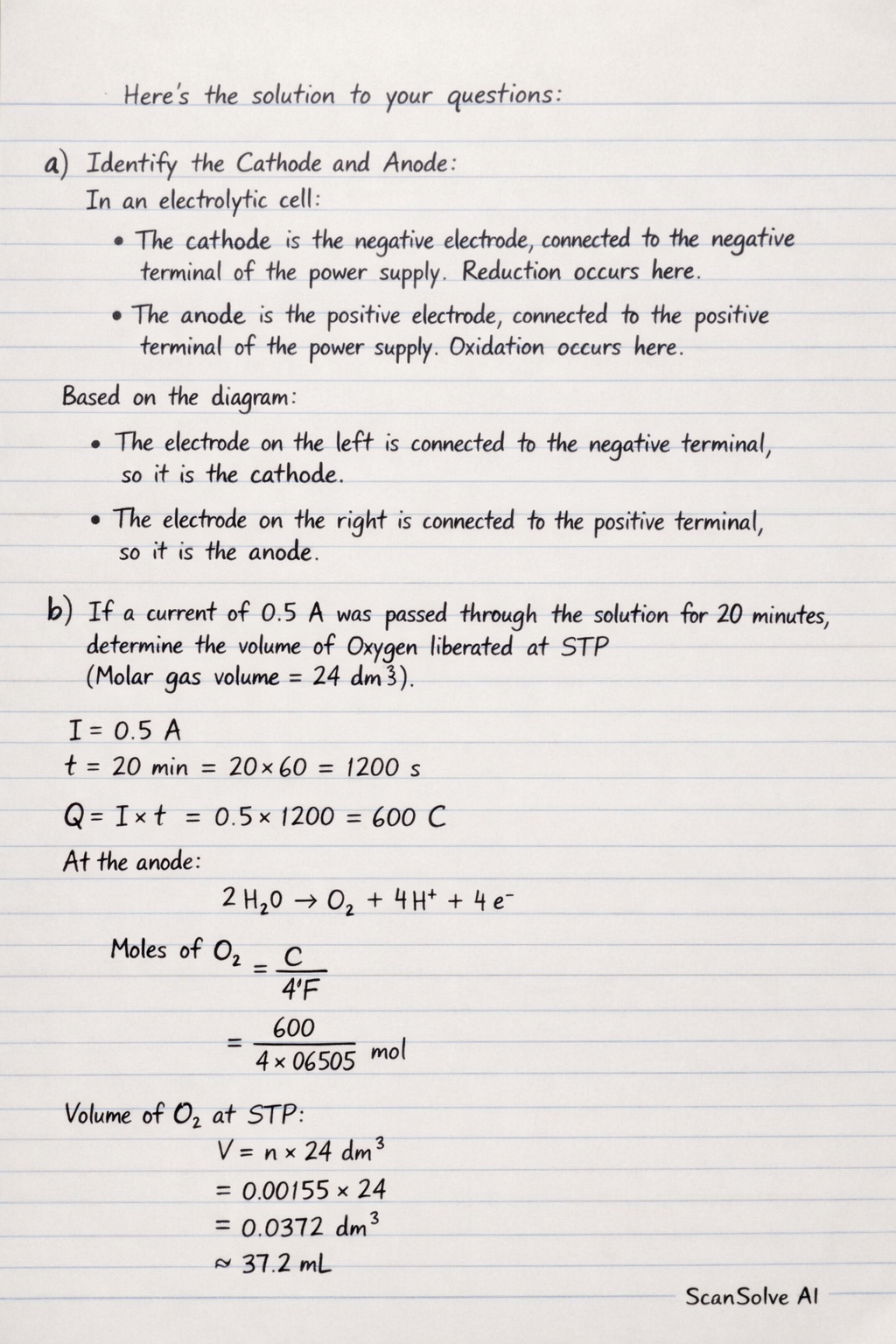

Handwritten step-by-step solution preview
