We read your photo as:

The diagram shows some reactions of butanoic acid. A, B, C and D are different substances. Identify by name A, B, C and D. Name and draw the displayed structure of E.

Chemistry

ScanSolve AI Answer

Step-by-step solution

4 steps

Here's the solution to question B8.

Part a· 2 steps

Butanoic acid reacts with sodium and sodium carbonate.

  1. Identify products from reaction with sodium.

    Butanoic acid reacts with sodium to produce hydrogen gas (Gas A) and sodium butanoate (Salt B).

    • A: Hydrogen
    • B: Sodium butanoate

  2. Identify products from reaction with sodium carbonate.

    Butanoic acid reacts with sodium carbonate to produce carbon dioxide gas (Gas C), water (Liquid D), and sodium butanoate (Salt B).

    • C: Carbon dioxide
    • D: Water

Part b· 2 steps

Butanoic acid reacts with methanol in the presence of heat to form an ester (organic liquid E) and water (Liquid D). This is an esterification reaction.

  1. Name the organic liquid E.

    The reaction of butanoic acid with methanol produces methyl butanoate.
    Name: Methyl butanoate

  2. Draw the displayed structure of E.

    Methyl butanoate has the formula CH3CH2CH2COOCH3\text{CH}_3\text{CH}_2\text{CH}_2\text{COOCH}_3.

    HHHOH∣∣∣∣∣∣H−C−C−C−C−O−C−H∣∣∣∣HHHH\begin{array}{ccccccc} \text{H} & \text{H} & \text{H} & \text{O} & & \text{H} \\ | & | & | & || & & | \\ \text{H} - \text{C} & - \text{C} & - \text{C} & - \text{C} & - \text{O} & - \text{C} & - \text{H} \\ | & | & | & & | \\ \text{H} & \text{H} & \text{H} & & \text{H} \end{array}
Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Chemistry Questions

QThis question concerns compounds A, B, C and D and processes I, II and III. Compound A is an…QIdentify A,B,C,D and E in the following sequence of reactionsQDraw the structures of butan-1-ol and hexanoic acid.QIdentify compound A and draw the reaction showing the dehydration of A to propene and the…QIdentify compounds A, B, C, and D starting from ethanol and following the given reaction pathway.
See all Chemistry questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

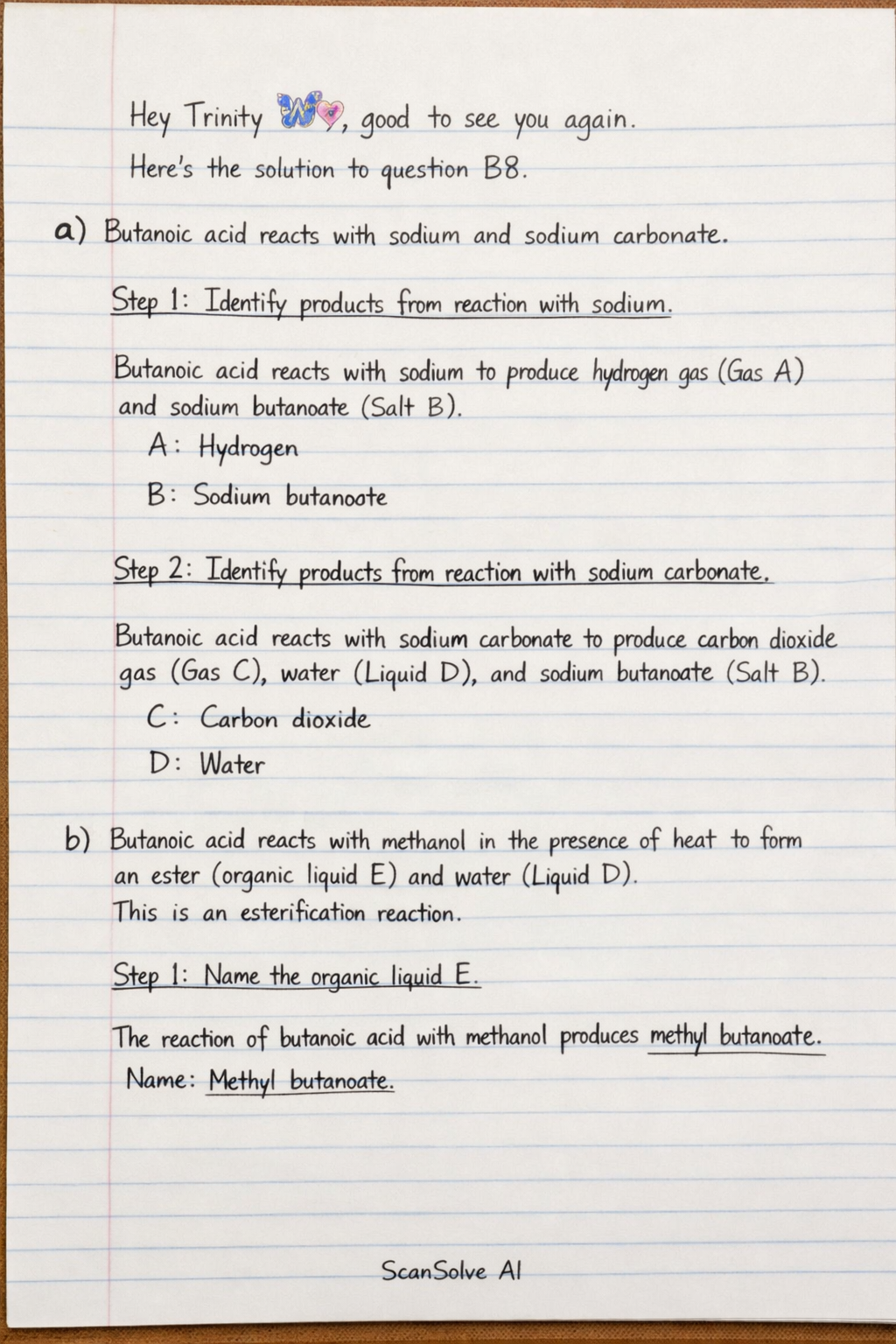

Handwritten step-by-step solution preview
