Answer

0.05 mm\text{0.05 mm}

Step-by-step solution

2 steps
  1. Identify the given dimension and its limits.

    The dimension is given as 50.00+0.05mm50.00 + 0.05 \text{mm}.
    This indicates a nominal size of 50.00mm50.00 \text{mm}.
    The upper limit (maximum permissible size) is 50.00+0.05=50.05mm50.00 + 0.05 = 50.05 \text{mm}.
    Since no lower deviation is specified, the lower limit (minimum permissible size) is assumed to be the nominal size, which is 50.00mm50.00 \text{mm}.

  2. Calculate the tolerance.

    Tolerance is the difference between the maximum permissible size and the minimum permissible size.

    Tolerance=Maximum size−Minimum size\text{Tolerance} = \text{Maximum size} - \text{Minimum size} Tolerance=50.05mm−50.00mm\text{Tolerance} = 50.05 \text{mm} - 50.00 \text{mm} Tolerance=0.05mm\text{Tolerance} = 0.05 \text{mm}

    The tolerance is 0.05 mm\text{0.05 mm}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

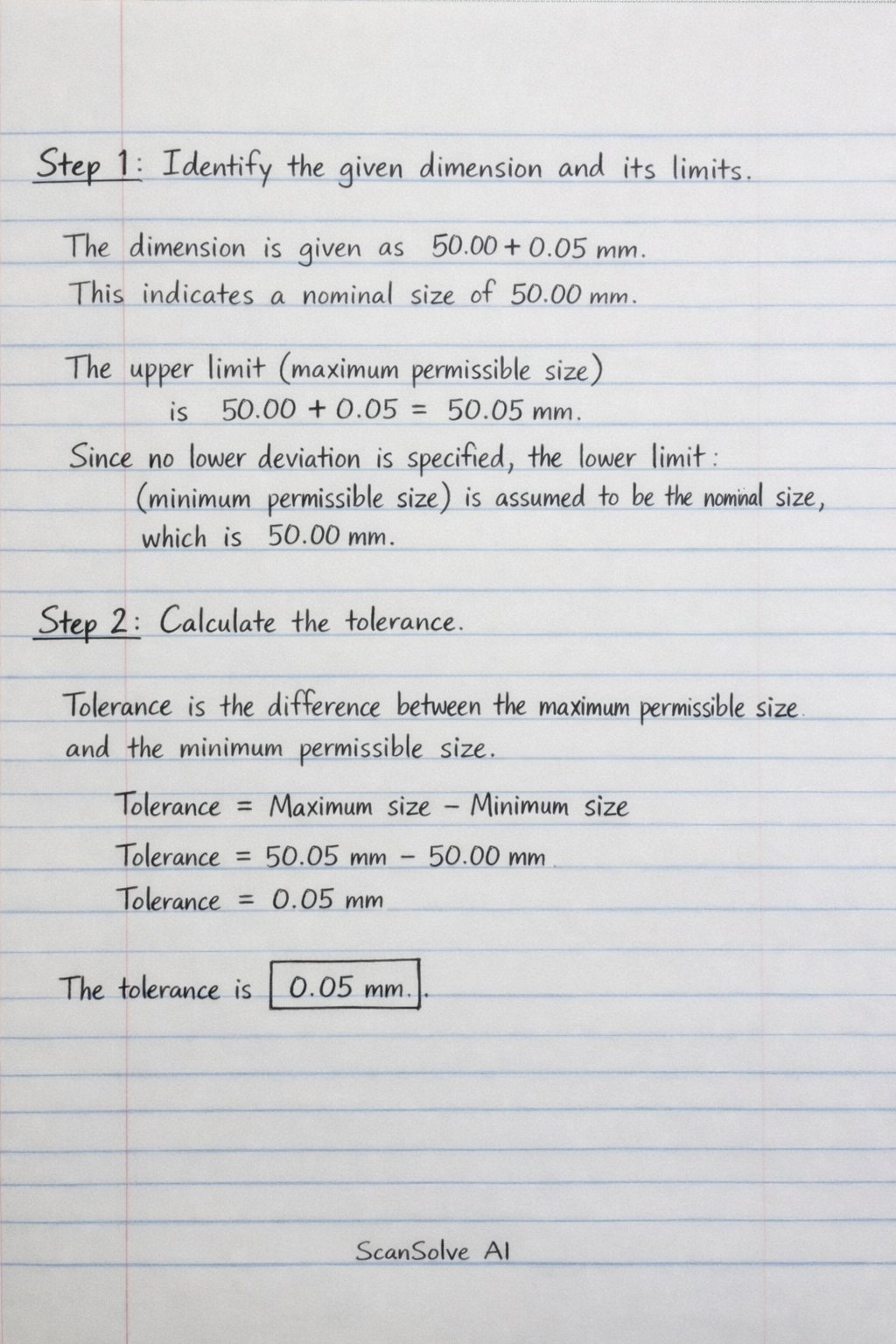

Handwritten step-by-step solution preview
