Describe the differences between a three-jaw chuck and a four-jaw chuck that you should consider when selecting a chuck for machining.

Here are the solutions to the questions:

C. Describe the differences between a three-jaw chuck and a four-jaw chuck that you should consider when selecting a chuck for machining.

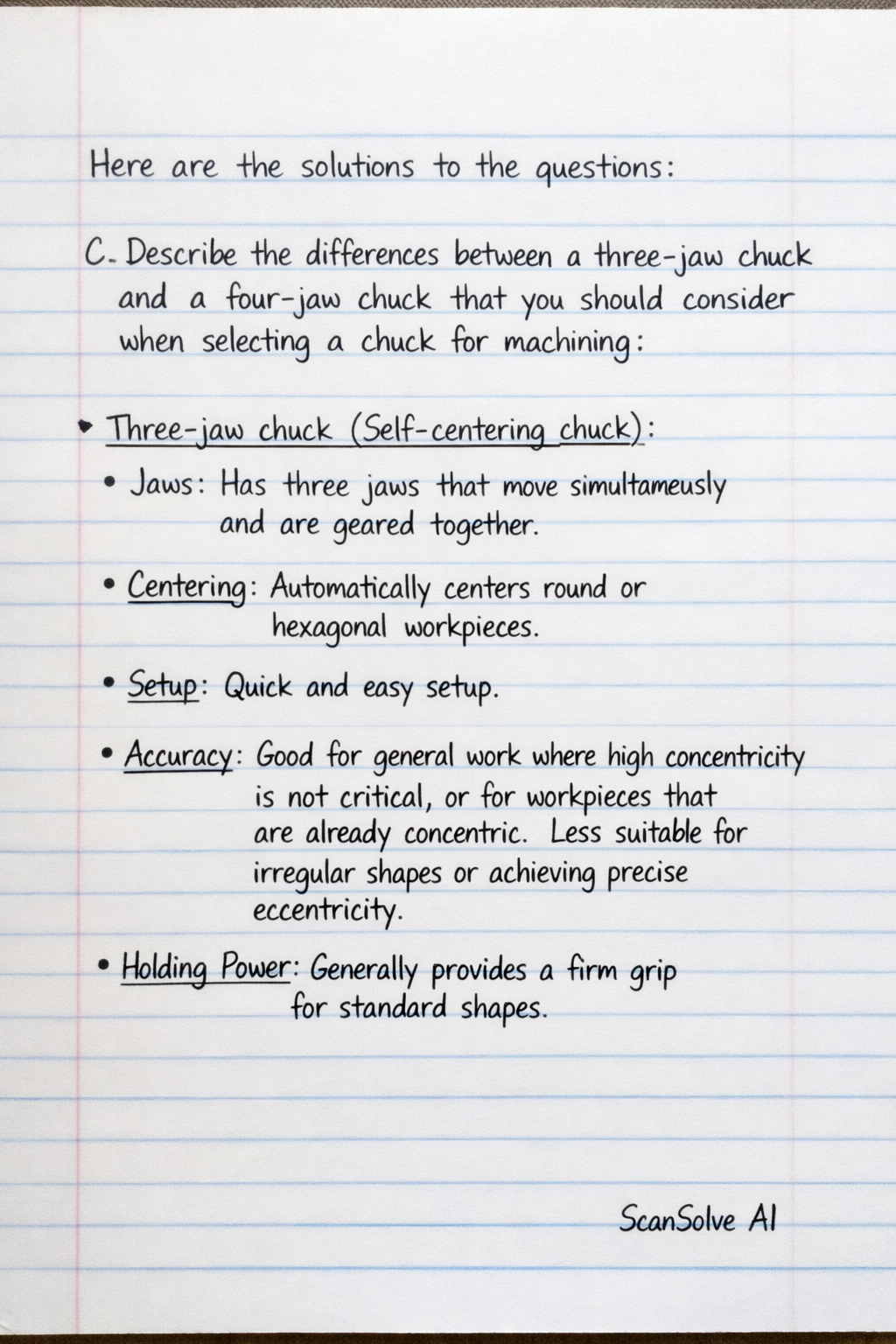

• Three-jaw chuck (Self-centering chuck):

  • Jaws: Has three jaws that move simultaneously and are geared together.
  • Centering: Automatically centers round or hexagonal workpieces.
  • Setup: Quick and easy setup.
  • Accuracy: Good for general work where high concentricity is not critical, or for workpieces that are already concentric. Less suitable for irregular shapes or achieving precise eccentricity.
  • Holding Power: Generally provides a firm grip for standard shapes.

• Four-jaw chuck (Independent chuck):

  • Jaws: Has four jaws that can be adjusted individually using a chuck key.
  • Centering: Does not self-center; requires manual centering of the workpiece.
  • Setup: Slower and more complex setup, as each jaw must be adjusted.
  • Accuracy: Allows for very precise centering of workpieces, including eccentric work, and can hold irregular shapes.
  • Holding Power: Provides a very strong and versatile grip, especially for non-cylindrical or heavy workpieces.

When selecting a chuck, consider:

1. Workpiece Shape: For round or hexagonal parts requiring quick setup, a three-jaw chuck is suitable. For irregular shapes or square/rectangular parts, a four-jaw chuck is necessary.
2. Required Concentricity/Precision: If high precision or eccentric machining is needed, a four-jaw chuck is preferred. For general turning, a three-jaw chuck is sufficient.
3. Setup Time: For high-volume production of standard parts, the quick setup of a three-jaw chuck is advantageous. For one-off jobs or complex setups, the four-jaw chuck's versatility outweighs its longer setup time.

a. While performing turning operation of a hollow tube on a lathe, you are required to use a mandrel for support. Describe TWO types of mandrels that you would use in this operation.

Mandrels are used to support hollow workpieces from their internal diameter, allowing the external surface to be machined concentrically.

1. Solid/Plain Mandrel:

   • Description: This is a solid, slightly tapered shaft, typically hardened and ground. The workpiece, which has a pre-drilled or bored hole, is pressed onto the tapered mandrel.
   • Application: Used for workpieces with a consistent internal diameter that can be pressed onto the taper. It provides rigid support for machining the outer surface.

2. Expanding Mandrel:

   • Description: This type of mandrel has a body with segments or a sleeve that can be expanded radially to grip the internal diameter of the workpiece. Expansion is usually achieved by tightening a screw that draws a tapered plug into a tapered bore, or by mechanical wedges.
   • Application: Ideal for workpieces where the internal diameter needs to be held precisely without damage, or for parts with slight variations in their bore size. It offers excellent concentricity and is quick to load and unload.

b. As a technician setting up a lathe for a machining operation, you should correctly determine and control key machining parameters. Discuss the following parameters as used in lathe machining:
i. Feed rate
ii. Cutting speed
iii. Depth of cut

i. Feed rate: * Definition: The distance the cutting tool advances along the workpiece for each revolution of the workpiece. It determines how much material is removed per revolution in the direction of tool travel. * Units: Typically measured in millimeters per revolution (mm/rev) or inches per revolution (ipr). * Effect: A higher feed rate increases the material removal rate but generally results in a rougher surface finish. A lower feed rate produces a finer surface finish but increases machining time. It also affects chip formation and cutting forces.

ii. Cutting speed: * Definition: The tangential speed of the workpiece surface relative to the cutting tool at the point of contact. It is the primary factor determining the rate at which material is sheared. * Units: Typically measured in meters per minute (m/min) or feet per minute (sfpm - surface feet per minute). * Formula: For a workpiece of diameter $D$ (in mm) rotating at $N$ revolutions per minute (rpm), the cutting speed $V_c$ (in m/min) is given by: $V_c = \frac{\pi D N}{1000}$ * Effect: Higher cutting speeds generally lead to faster material removal and shorter machining times, but they also increase heat generation, which can reduce tool life and degrade surface finish. Lower cutting speeds prolong tool life but increase machining time.

iii. Depth of cut: * Definition: The amount of material removed from the workpiece surface in a single pass of the cutting tool. It is the radial distance the cutting tool penetrates into the workpiece. * Units: Typically measured in millimeters (mm) or inches (in). * Effect: A larger depth of cut increases the material removal rate significantly, reducing the number of passes required. However, it also increases cutting forces, power consumption, and heat generation, which can lead to tool deflection, vibration (chatter), and a rougher surface finish. Smaller depths of cut are used for finishing passes to achieve high dimensional accuracy and fine surface finishes.

8. As a technician responsible for selecting cutting tools for machining operations, you are required to understand the key material properties. Explain FIVE material properties that you should consider when selecting materials for cutting tools.

9. Hardness:

   • Explanation: The ability of a material to resist plastic deformation, indentation, and scratching. A cutting tool must be significantly harder than the workpiece material to effectively cut it. High hardness ensures the cutting edge retains its shape and sharpness during machining.

10. Hot Hardness (Red Hardness):

    • Explanation: The ability of a material to retain its hardness and strength at elevated temperatures. During machining, significant heat is generated at the tool-workpiece interface. A tool with good hot hardness will not soften or lose its cutting ability at these high temperatures, preventing premature tool wear and failure.

11. Toughness:

    • Explanation: The ability of a material to absorb energy and deform plastically without fracturing. Cutting tools are subjected to impact forces, especially during interrupted cuts or when encountering hard spots in the workpiece. Good toughness prevents chipping or catastrophic breakage of the cutting edge.

12. Wear Resistance:

    • Explanation: The ability of a material to resist the gradual loss of material from its surface due to friction, abrasion, adhesion, and diffusion during cutting. High wear resistance ensures a longer tool life and consistent cutting performance, reducing the frequency of tool changes and regrinding.

13. Chemical Stability/Inertness:

    • Explanation: The resistance of the tool material to chemical reactions with the workpiece material or the cutting fluid at high temperatures. Chemical reactions can lead to crater wear (diffusion of tool material into the chip) or the formation of a built-up edge, both of which degrade tool performance and surface finish. A chemically stable tool material minimizes these interactions.
