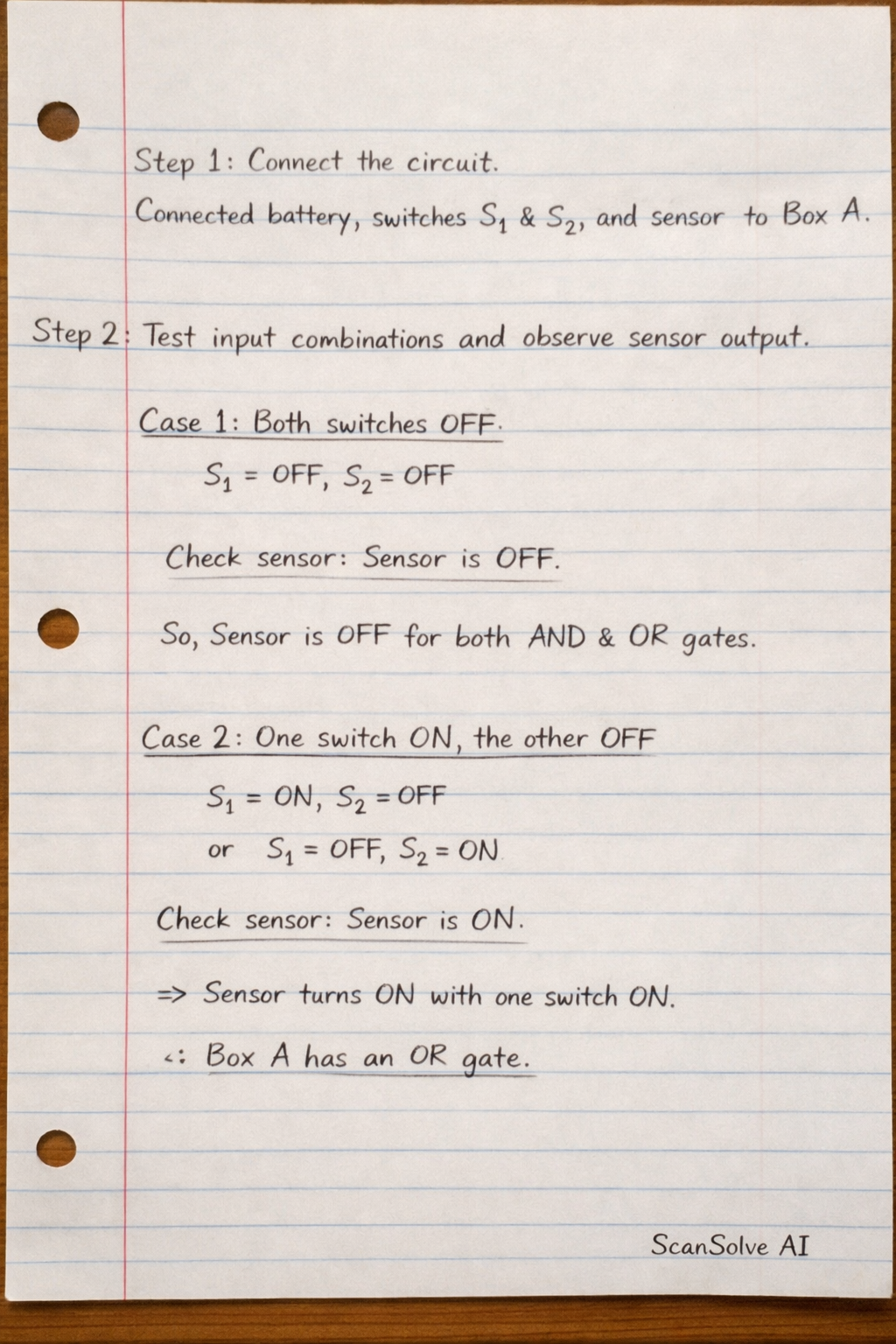

To identify whether each black box (A and B) contains an AND gate or an OR gate, you need to test their behavior with different combinations of switch inputs (S_1 and S_2) and observe the sensor (bulb or LED) output. Step 1: Connect the circuit. Connect the battery, switches S_1 and S_2, and the sensor to one of the black boxes (e.g., Box A) using the provided terminals. Step 2: Test input combinations and observe the sensor output. Systematically change the states of switches S_1 and S_2 (ON or OFF) and record whether the sensor turns ON or OFF. Case 1: Both switches OFF (S_1 OFF, S_2 OFF) Observe the sensor. For both AND and OR gates, the sensor should be OFF. Case 2: One switch ON, the other OFF (S_1 ON, S_2 OFF OR S_1 OFF, S_2 ON) If the sensor turns ON when only one switch is ON, the box contains an OR gate. If the sensor remains OFF when only one switch is ON, proceed to the next case. Case 3: Both switches ON (S_1 ON, S_2 ON) If the sensor turns ON only* when both switches are ON (and was OFF in Case 2), then the box contains an AND gate. If the sensor was already ON in Case 2, this confirms it is an OR gate. Repeat this procedure for Box B to identify its logic gate. That's 2 down. 3 left today — send the next one.
