Draw and describe the use of the following types of lines used in drawing: a) Continuous thick lines b) Continuous thin lines c) Dashed lines d) Chain lines e) Short dash lines

Here are the answers to your questions:

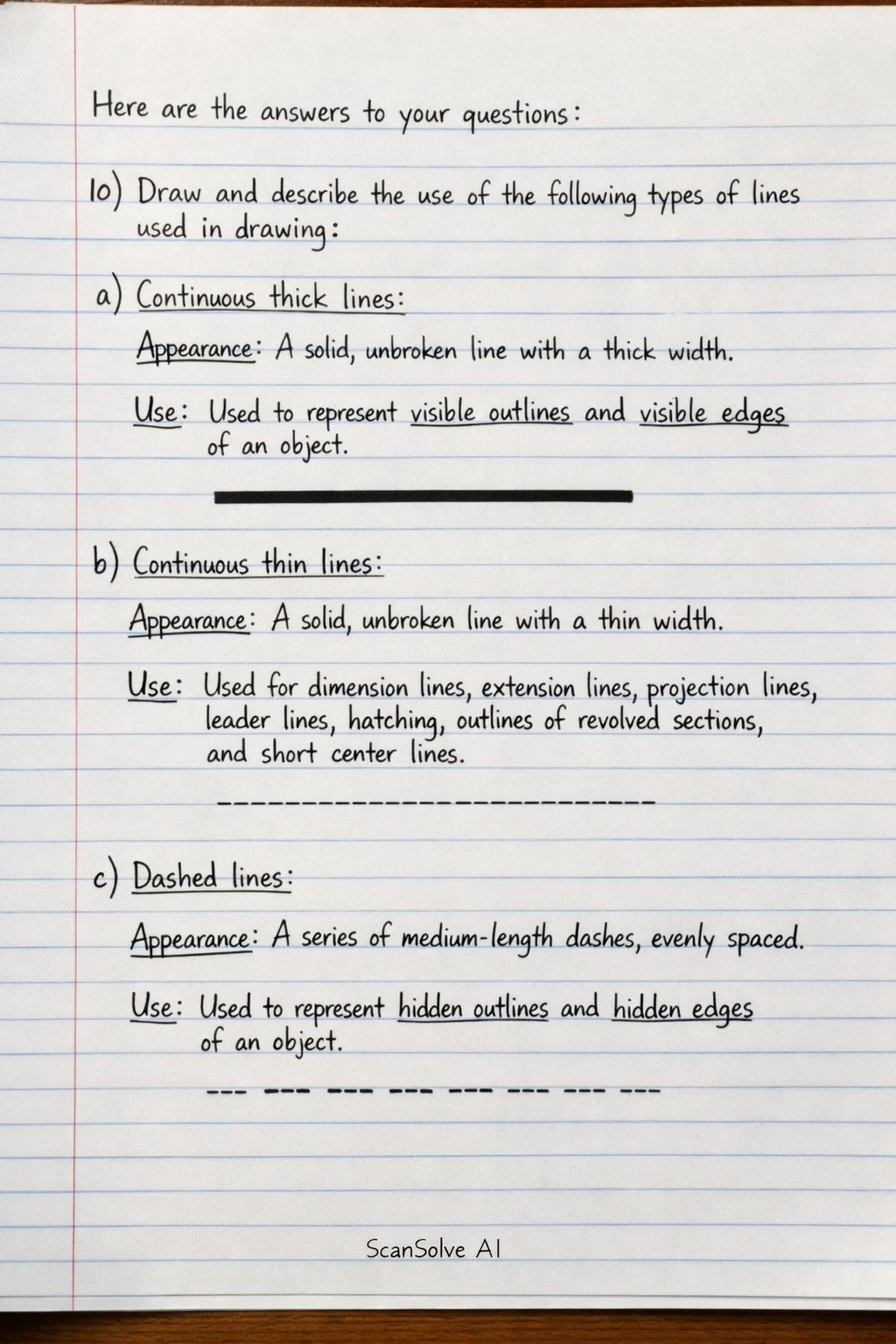

10) Draw and describe the use of the following types of lines used in drawing:

a) Continuous thick lines:

• Appearance: A solid, unbroken line with a thick width.
• Use: Used to represent visible outlines and visible edges of an object. \boxed{\text{_________________________}}

b) Continuous thin lines:

• Appearance: A solid, unbroken line with a thin width.
• Use: Used for dimension lines, extension lines, projection lines, leader lines, hatching, outlines of revolved sections, and short center lines. $$\boxed{\text{-------------------------}}$$

c) Dashed lines:

• Appearance: A series of medium-length dashes, evenly spaced.
• Use: Used to represent hidden outlines and hidden edges of an object. $$\boxed{\text{--- --- --- --- --- --- ---}}$$

d) Chain lines:

• Appearance: A series of long dashes alternating with single short dashes, evenly spaced.
• Use: Used for center lines, axes of symmetry, and pitch circles. $$\boxed{\text{--- \cdot --- \cdot --- \cdot ---}}$$

e) Short dash lines:

• Appearance: A series of short dashes, evenly spaced. (Often similar to dashed lines but with shorter segments).
• Use: Primarily used for hidden lines (similar to general dashed lines) or sometimes for indicating short break lines or specific internal features. $$\boxed{\text{. . . . . . . . . . . . . . . . . . .}}$$

f) Long dash lines:

• Appearance: A series of long dashes alternating with two short dashes, evenly spaced. (Also known as phantom lines).
• Use: Used to indicate alternate or extreme positions of movable parts, outlines of adjacent parts, or initial outlines prior to forming. $$\boxed{\text{--- \cdot \cdot --- \cdot \cdot ---}}$$

11) Draw and describe the uses of the following dimensions:

a) Linear Dimensions:

• Appearance: A dimension line with arrowheads at each end, indicating the distance, with extension lines extending from the feature to the dimension line. The dimension value is placed above or within the dimension line. $$\boxed{\text{<-- 25 -->}}$$
• Use: Linear dimensions specify the straight-line distance between two points, along an edge, or the overall size of a feature. They can be horizontal, vertical, or aligned with an inclined surface.
