Figure 2.41 illustrates the assembly of a shaft support. The components are numbered 1, 2, 3, and 4. Identify the type of drawing and list the different parts shown in the figure.

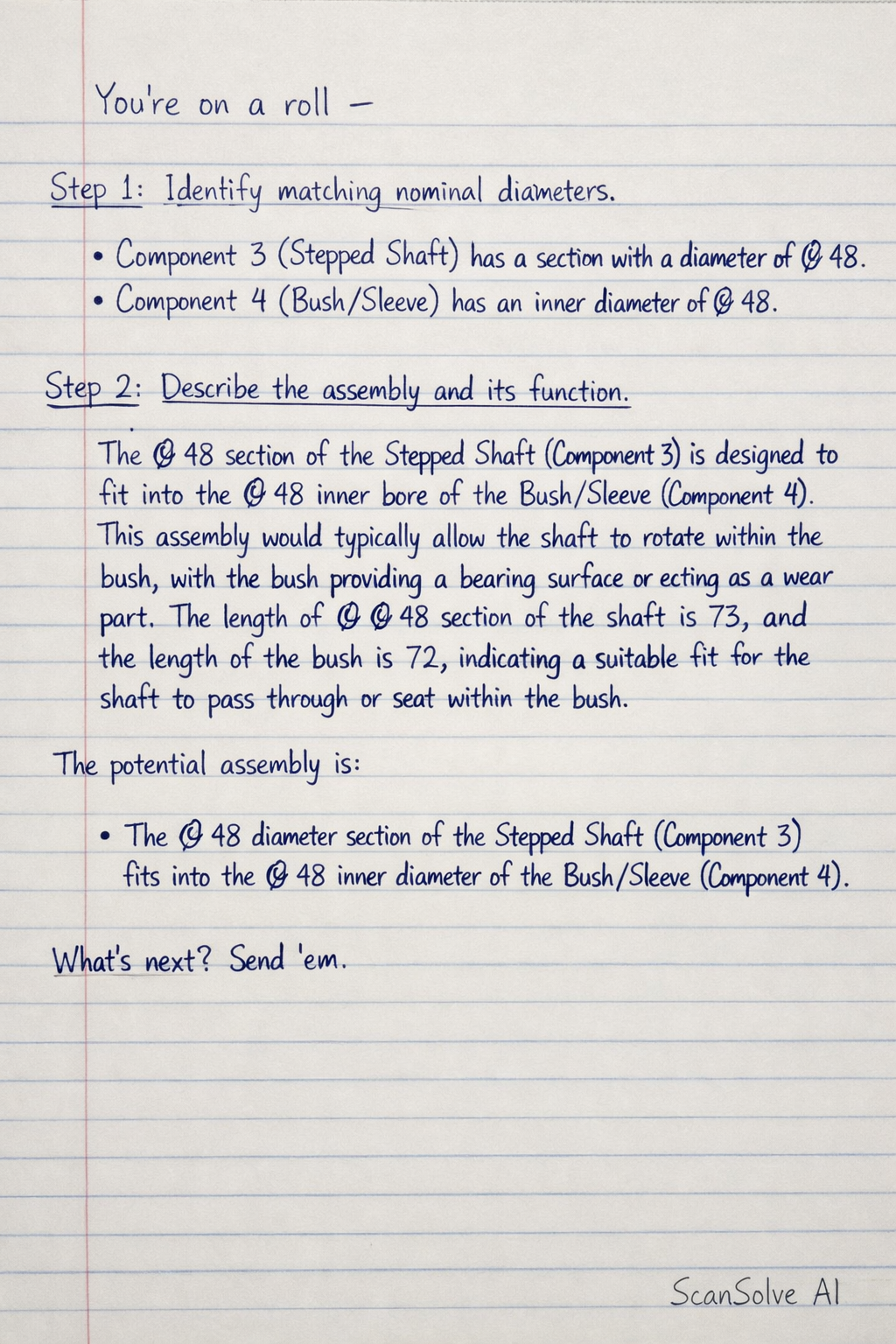

Based on the dimensions in Figure 2.41, the most evident assembly is between Component 3 (Stepped Shaft) and Component 4 (Bush/Sleeve). Step 1: Identify matching nominal diameters. • Component 3 (Stepped Shaft) has a section with a diameter of 48. • Component 4 (Bush/Sleeve) has an inner diameter of 48. Step 2: Describe the assembly and its function. The 48 section of the Stepped Shaft (Component 3) is designed to fit into the 48 inner bore of the Bush/Sleeve (Component 4). This assembly would typically allow the shaft to rotate within the bush, with the bush providing a bearing surface or acting as a wear part. The length of the 48 section of the shaft is 73, and the length of the bush is 72, indicating a suitable fit for the shaft to pass through or seat within the bush. The potential assembly is: The 48 diameter section of the Stepped Shaft (Component 3) fits into the 48 inner diameter of the Bush/Sleeve (Component 4). What's next? Send 'em.
