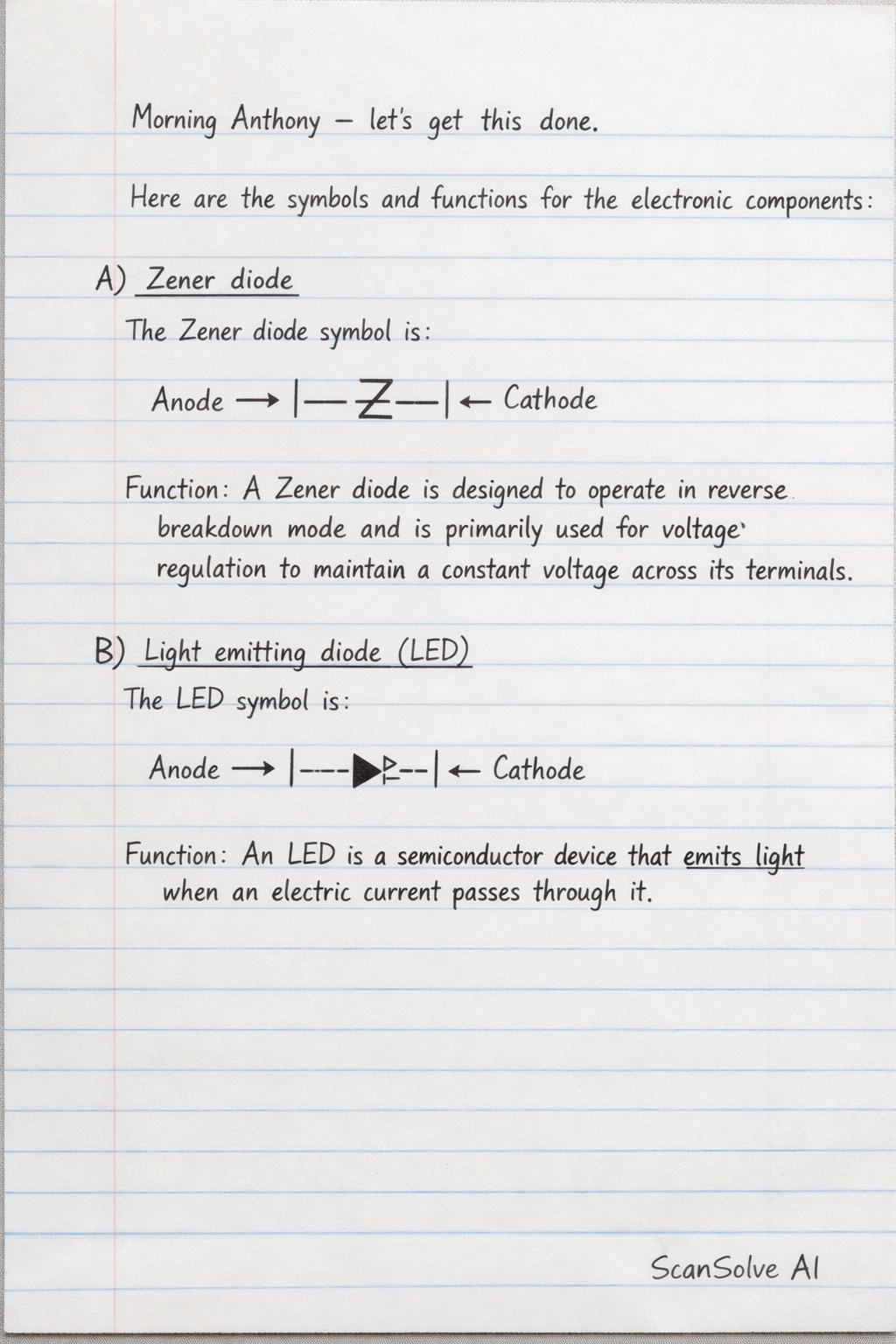

Morning Anthony — let's get this done. Here are the symbols and functions for the electronic components: A) Zener diode The Zener diode symbol is: Anode | -- Z -- | Cathode Function: A Zener diode is designed to operate in reverse breakdown mode and is primarily used for voltage regulation to maintain a constant voltage across its terminals. B) Light emitting diode (LED) The LED symbol is: Anode | -- -- | Cathode with two arrows pointing away from the diode Function: An LED is a semiconductor device that emits light when an electric current passes through it. C) Photo diode The photodiode symbol is: Anode | -- -- | Cathode with two arrows pointing towards the diode Function: A photodiode is a semiconductor device that converts light into an electrical current. Send me the next one 📸
