This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.
ScanSolve AI Answer

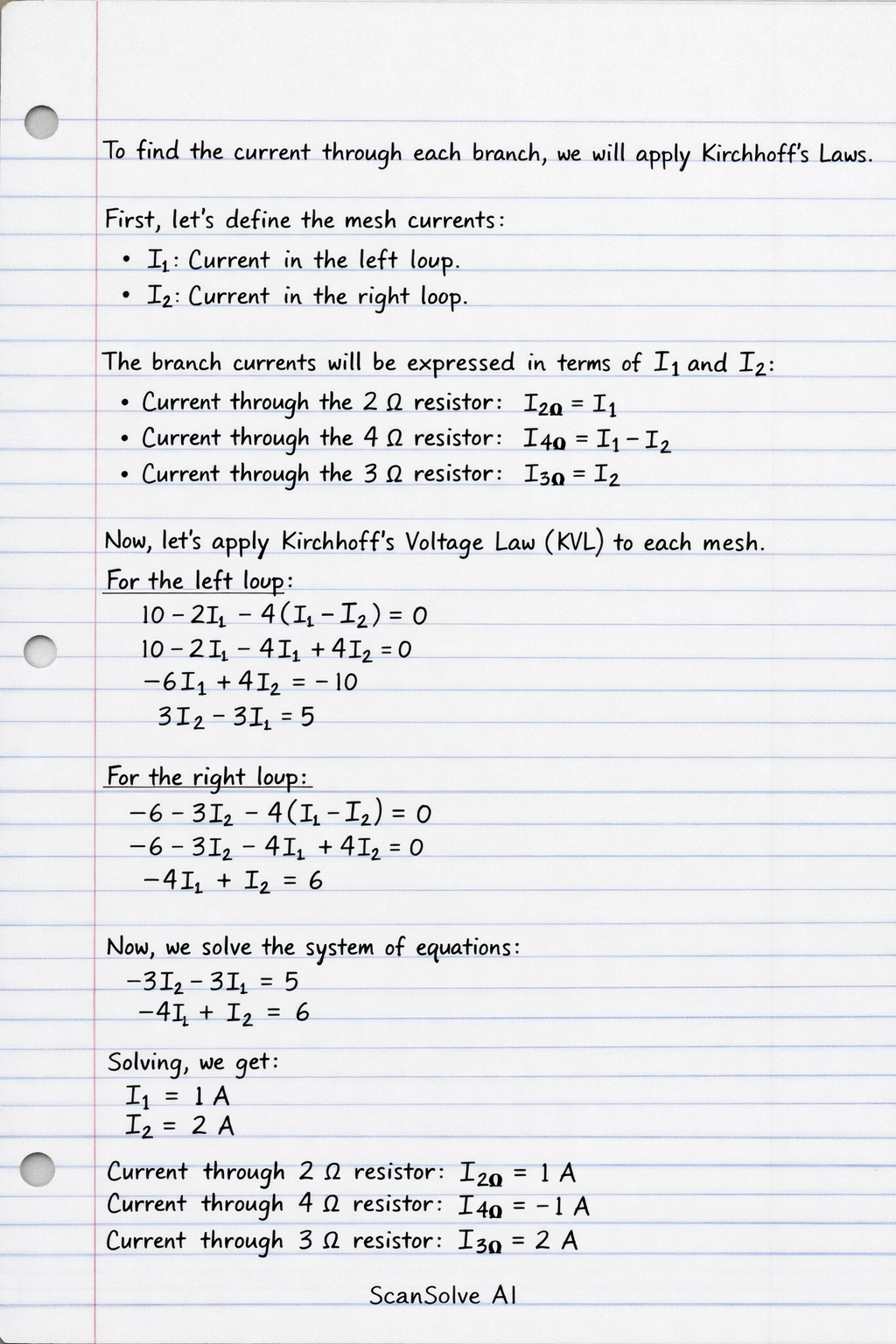

To find the current through each branch, we will apply Kirchhoff's Laws (KCL and KVL). First, let's define the mesh currents. We will use two clockwise mesh currents: I_1: Current in the left loop. I_2: Current in the right loop. The branch currents will be expressed in terms of I_1 and I_2: Current through the 2 resistor: I_2 = I_1 (flowing right). Current through the 4 resistor: I_4 = I_1 - I_2 (flowing downwards). Current through the 3 $\
