Here's the solution to the spring problem:

Part a· 3 steps

the spring constant.

  1. Identify the forces acting on the mass at equilibrium.

    When the mass hangs in equilibrium, the upward force exerted by the spring (spring force, FsF_s) balances the downward gravitational force (FgF_g) acting on the mass.

    Fs=FgF_s = F_g
  2. Express the forces in terms of known quantities.

    The spring force is given by Hooke's Law: Fs=kxF_s = kx, where kk is the spring constant and xx is the extension.
    The gravitational force is: Fg=mgF_g = mg, where mm is the mass and gg is the acceleration due to gravity.
    Given:
    m=0,5 kgm = 0,5 \text{ kg}
    x=10 cm=0,1 mx = 10 \text{ cm} = 0,1 \text{ m} (converting cm to m)
    g=10 m/s2g = 10 \text{ m/s}^2

  3. Equate the forces and solve for the spring constant (kk).

    kx=mgkx = mg k(0,1 m)=(0,5 kg)(10 m/s2)k(0,1 \text{ m}) = (0,5 \text{ kg})(10 \text{ m/s}^2) k(0,1 m)=5 Nk(0,1 \text{ m}) = 5 \text{ N} k=5 N0,1 mk = \frac{5 \text{ N}}{0,1 \text{ m}} k=50 N/mk = 50 \text{ N/m}

    The spring constant is 50 N/m\boxed{\text{50 N/m}}.

Part b

0,628 s\text{0,628 s}

the period of oscillation.

  1. Use the formula for the period of oscillation of a mass-spring system.

    The period of oscillation (TT) for a mass mm attached to a spring with constant kk is given by:

    T=2πmkT = 2\pi \sqrt{\frac{m}{k}}
  2. Substitute the known values and calculate the period.

    m=0,5 kgm = 0,5 \text{ kg}
    k=50 N/mk = 50 \text{ N/m} (from part a)

    T=2π0,5 kg50 N/mT = 2\pi \sqrt{\frac{0,5 \text{ kg}}{50 \text{ N/m}}} T=2π0,01 s2T = 2\pi \sqrt{0,01 \text{ s}^2} T=2π(0,1 s)T = 2\pi (0,1 \text{ s}) T=0,2π sT = 0,2\pi \text{ s}

    Using π≈3,14159\pi \approx 3,14159:

    T≈0,2×3,14159 sT \approx 0,2 \times 3,14159 \text{ s} T≈0,628 sT \approx 0,628 \text{ s}

    The period of oscillation is 0,628 s\boxed{\text{0,628 s}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

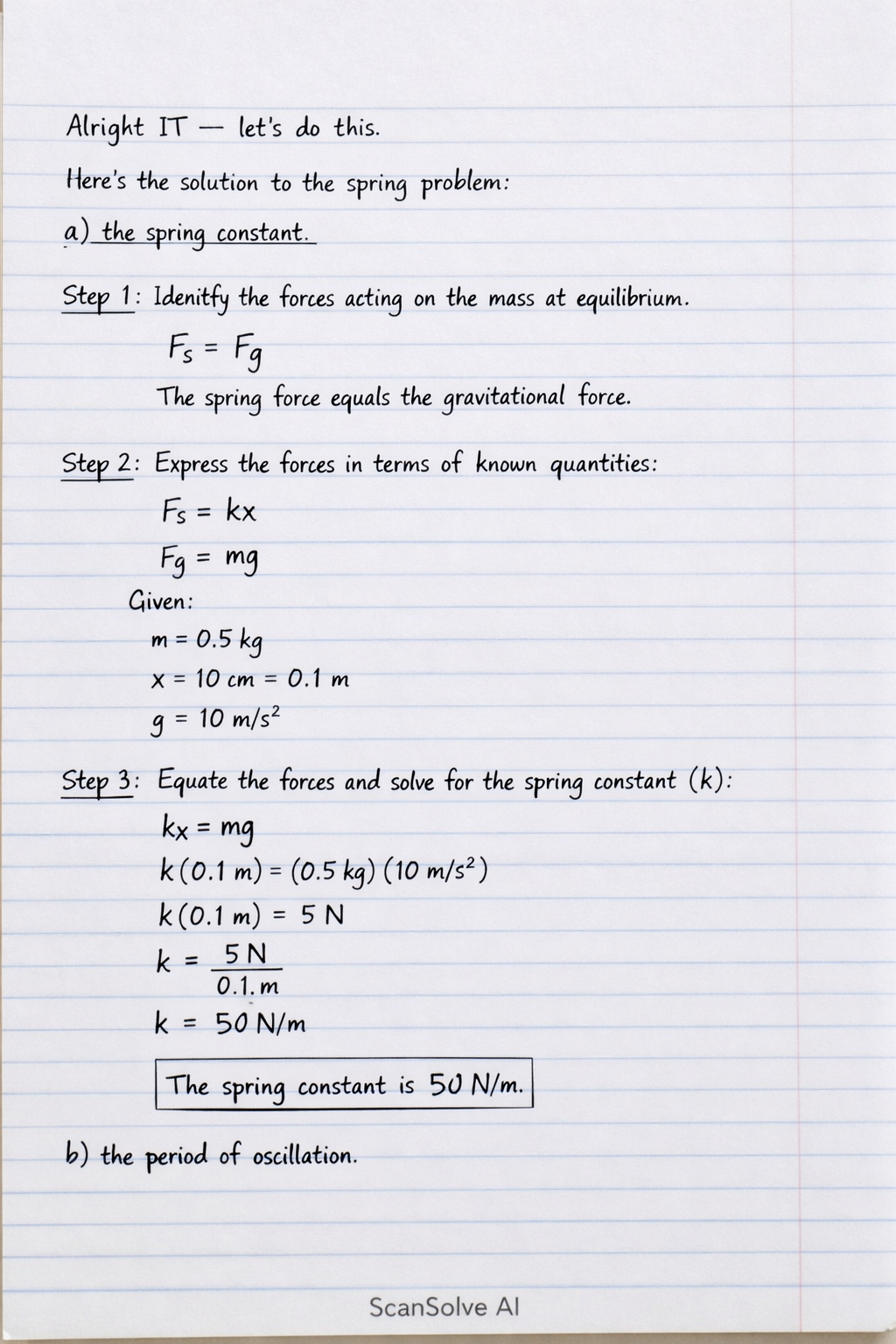

Handwritten step-by-step solution preview
