1.1 State FIVE steps that must be applied when using Maximum Power Transfer theorem.

Question

1.1 State FIVE steps that must be applied when using Maximum Power Transfer theorem.

Asked on April 1, 2026Mathematics

This mathematics problem involves applying core mathematical principles and formulas. Below you will find a complete step-by-step solution with detailed explanations for each step, helping you understand not just the answer but the method behind it.

Accepted Answer · 2026-04-01T17:35:37.875Z

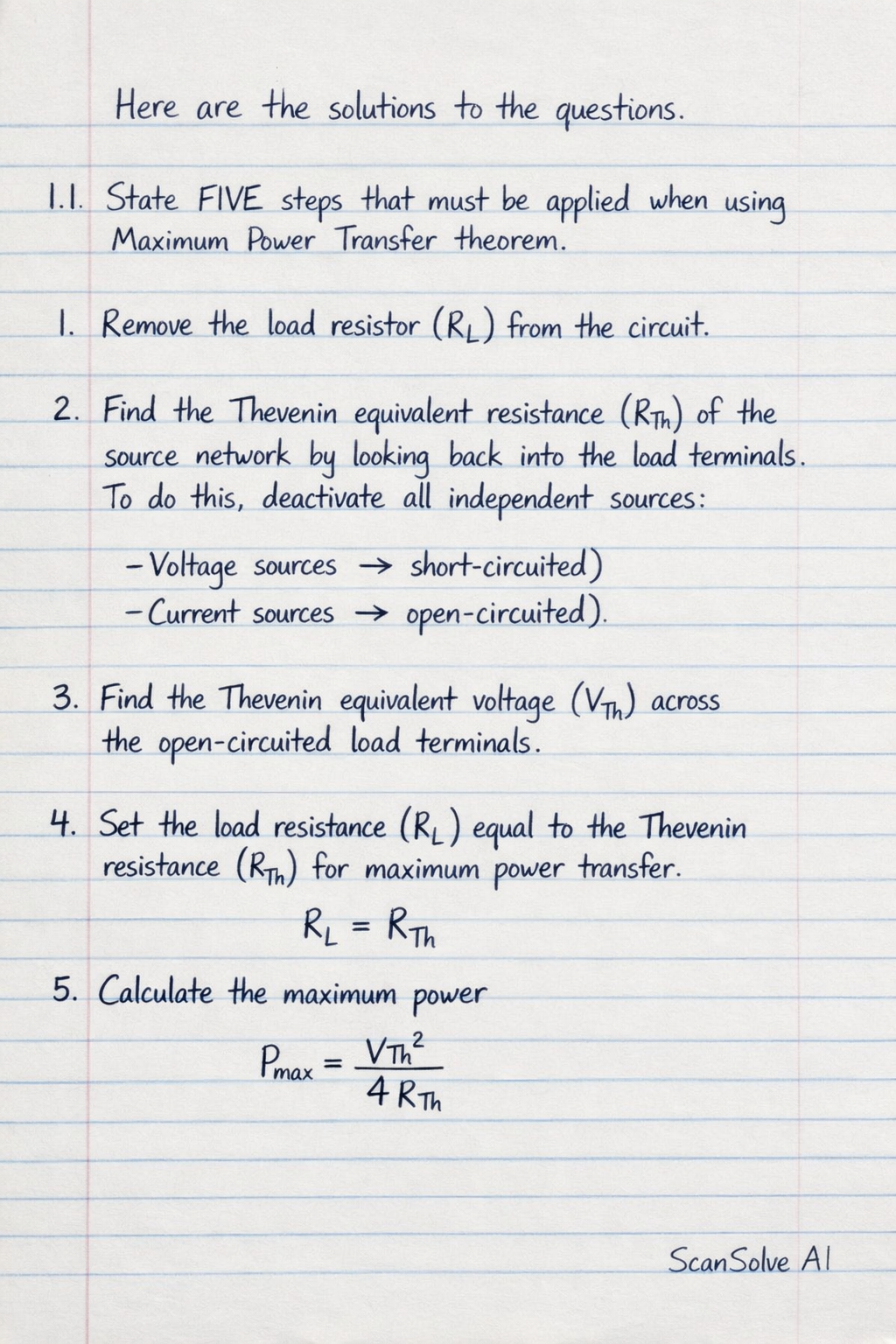

Here are the solutions to the questions. 1.1 State FIVE steps that must be applied when using Maximum Power Transfer theorem. 1. Remove the load resistor ($R_L$) from the circuit. 2. Find the Thevenin equivalent resistance ($R_{Th}$) of the source network by looking back into the load terminals. To do this, deactivate all independent sources (voltage sources are short-circuited, current sources are open-circuited). 3. Find the Thevenin equivalent voltage ($V_{Th}$) across the open-circuited load terminals. 4. Set the load resistance ($R_L$) equal to the Thevenin resistance ($R_{Th}$) for maximum power transfer. 5. Calculate the maximum power

Accepted Answer · 2026-04-01T17:35:37.875Z

Here are the solutions to the questions. 1.1 State FIVE steps that must be applied when using Maximum Power Transfer theorem. 1. Remove the load resistor ($R_L$) from the circuit. 2. Find the Thevenin equivalent resistance ($R_{Th}$) of the source network by looking back into the load terminals. To do this, deactivate all independent sources (voltage sources are short-circuited, current sources are open-circuited). 3. Find the Thevenin equivalent voltage ($V_{Th}$) across the open-circuited load terminals. 4. Set the load resistance ($R_L$) equal to the Thevenin resistance ($R_{Th}$) for maximum power transfer. 5. Calculate the maximum power
