A polygon has an interior angle sum of 1260^. Calculate the number of sides it has.

Mathematics

ScanSolve AI Answer

Answers

2 parts
8

n=9n = 9

9

n=12n = 12

Step-by-step solution

5 steps

Here are the solutions to the geometry problems.

Part 8· 3 steps

A polygon has an interior angle sum of 1260∘1260^\circ. Calculate the number of sides it has.

  1. Use the formula for the sum of interior angles of a polygon, which is (n−2)×180∘(n-2) \times 180^\circ, where nn is the number of sides.

    (n−2)×180∘=1260∘(n-2) \times 180^\circ = 1260^\circ
  2. Divide both sides by 180∘180^\circ.

    n−2=1260180n-2 = \frac{1260}{180} n−2=7n-2 = 7
  3. Add 2 to both sides to solve for nn.

    n=7+2n = 7 + 2 n=9n = 9

    The polygon has 9 sides. It is a nonagon.

    n=9\boxed{n = 9}

Part 9

n=12n = 12

One angle of a regular polygon measures 150∘150^\circ. Find the number of sides.

  1. For a regular polygon, each interior angle and its corresponding exterior angle sum to 180∘180^\circ.

    Calculate the measure of one exterior angle.

    Exterior Angle=180∘−Interior Angle\text{Exterior Angle} = 180^\circ - \text{Interior Angle} Exterior Angle=180∘−150∘\text{Exterior Angle} = 180^\circ - 150^\circ Exterior Angle=30∘\text{Exterior Angle} = 30^\circ
  2. The sum of the exterior angles of any polygon is 360∘360^\circ.

    For a regular polygon, all exterior angles are equal. The number of sides nn can be found by dividing 360∘360^\circ by the measure of one exterior angle.

    n=360∘Exterior Anglen = \frac{360^\circ}{\text{Exterior Angle}} n=360∘30∘n = \frac{360^\circ}{30^\circ} n=12n = 12

    The regular polygon has 12 sides. It is a dodecagon.

    n=12\boxed{n = 12}

Part 10

Draw a regular Octagon.

A regular octagon is a polygon with 8 equal sides and 8 equal interior angles. Each interior angle of a regular octagon measures 135∘135^\circ.

Here's how to draw a regular octagon using a compass and ruler (inscribing it in a circle):

  1. Draw a Circle: Use a compass to draw a circle. Mark its center point.
  2. Draw Perpendicular Diameters: Draw a horizontal diameter and a vertical diameter through the center of the circle. These two diameters will divide the circle into four 90∘90^\circ sectors.
  3. Bisect the Angles: Bisect each of the four 90∘90^\circ angles. To do this, place the compass point on the center, open it to any convenient radius, and draw arcs that intersect the circle and the existing diameters. Then, from the intersection points on the circle, draw two more arcs that intersect each other within each 90∘90^\circ sector. Draw a line from the center through this intersection point to the circumference. This will create lines that divide each 90∘90^\circ angle into two 45∘45^\circ angles.
  4. Mark Vertices: You will now have 8 equally spaced points on the circumference of the circle where the lines intersect the circle. These points are the vertices of the regular octagon.
  5. Connect the Vertices: Use a ruler to connect these 8 points consecutively with straight line segments. These segments will form the 8 equal sides of the regular octagon.

(Since I cannot physically draw, this description outlines the steps for construction.)

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

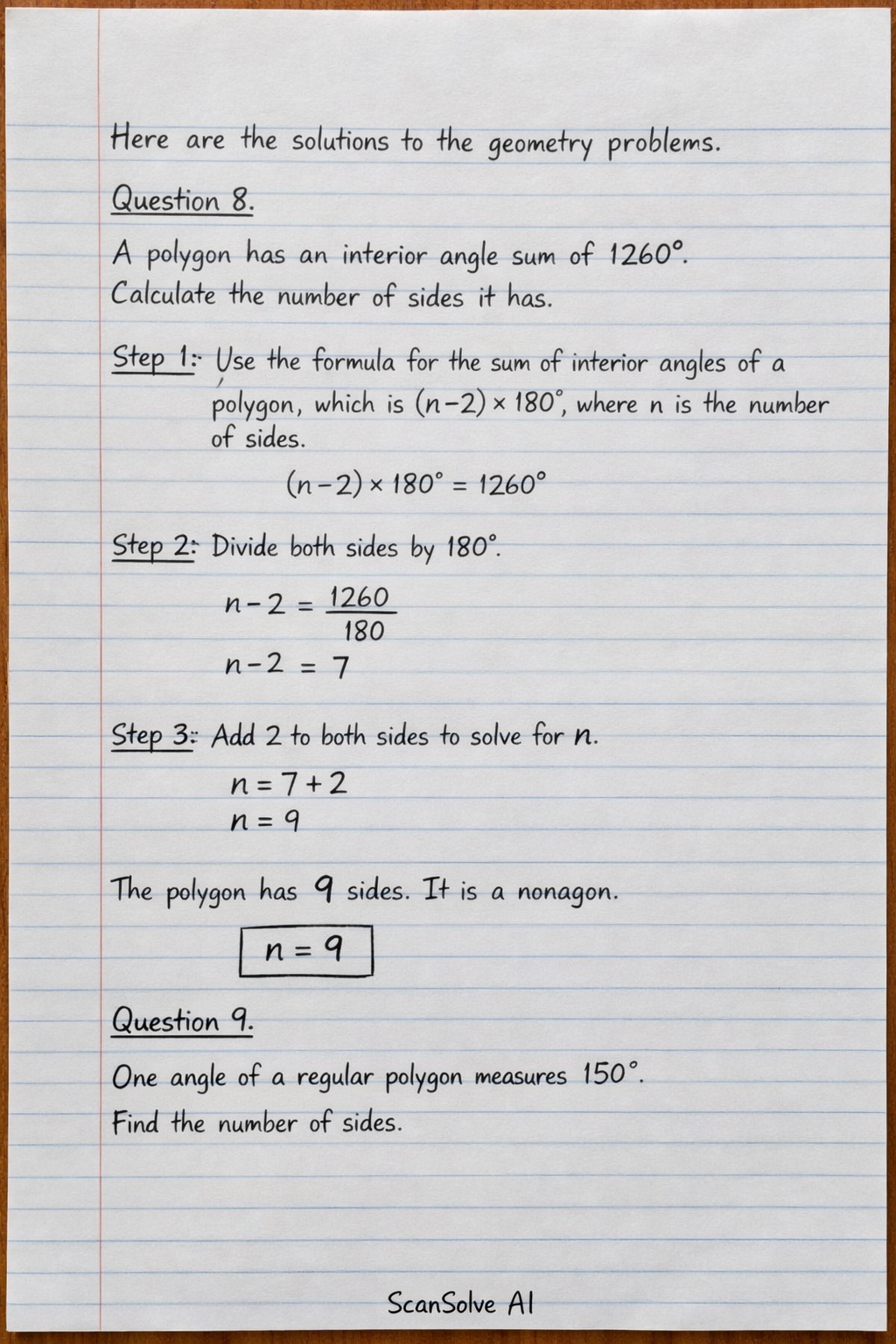

Handwritten step-by-step solution preview
