Calculate, with reasons, the angles marked x and y.

Question

ScanSolve AI Tutor · Accepted Answer

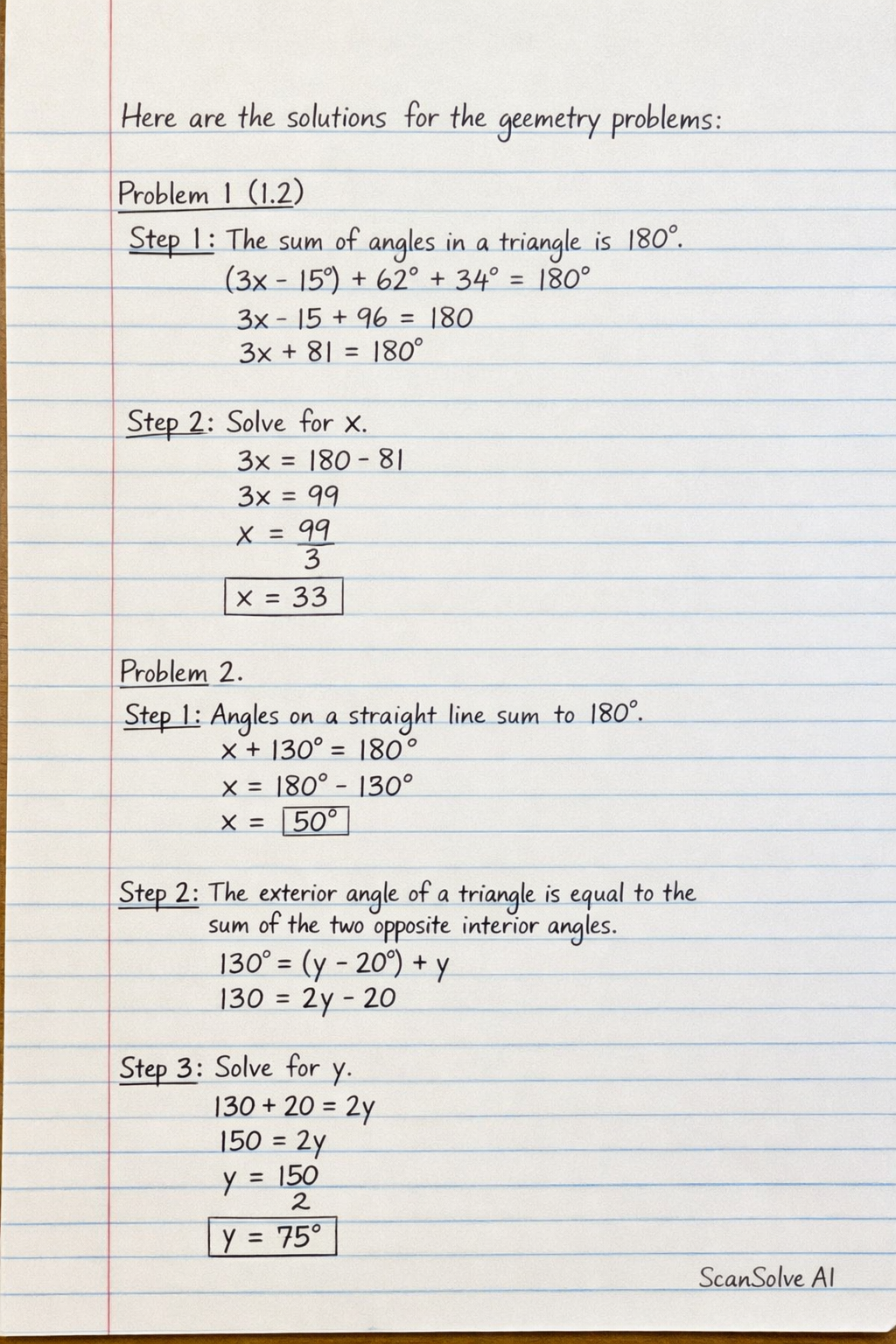

Here are the solutions for the geometry problems:

** (Top left triangle, labeled "1.2")**

The sum of angles in a triangle is $180^\circ$ .
$(3x - 15^\circ) + 62^\circ + 34^\circ = 180^\circ$ $3x - 15 + 96 = 180$ $3x + 81 = 180$
Solve for $x$ .
$3x = 180 - 81$ $3x = 99$ $x = \frac{99}{3}$ $x = \boxed{33}$
** (Top right triangle)**
Angles on a straight line sum to $180^\circ$ .
The interior angle $x$ and the exterior angle $130^\circ$ form a linear pair.
$x + 130^\circ = 180^\circ$ $x = 180^\circ - 130^\circ$ $x = \boxed{50^\circ}$
The exterior angle of a triangle is equal to the sum of the two opposite interior angles.
$130^\circ = (y - 20^\circ) + y$ $130 = 2y - 20$
Solve for $y$ .
$130 + 20 = 2y$ $150 = 2y$ $y = \frac{150}{2}$ $y = \boxed{75^\circ}$
** (Middle left figure)**
Lines AB and DC are parallel (indicated by arrows).
BC is a transversal. Consecutive interior angles sum to $180^\circ$ .
$\angle ABC + \angle BCD = 180^\circ$ $y + 90^\circ = 180^\circ$ $y = 180^\circ - 90^\circ$ $y = \boxed{90^\circ}$
In $\triangle BCE$ , the sum of angles is $180^\circ$ .
$\angle BEC = 180^\circ - \angle BCE - \angle CBE$ $\angle BEC = 180^\circ - 90^\circ - 40^\circ$ $\angle BEC = 50^\circ$
Assuming the arrow on DE indicates that DE is parallel to BC.
If DE || BC, then $\angle DEC$ and $\angle BCE$ are consecutive interior angles, so they sum to $180^\circ$ .
$x + 90^\circ = 180^\circ$ $x = 180^\circ - 90^\circ$ $x = \boxed{90^\circ}$
** (Middle right, labeled "10.3")**
The two horizontal lines are parallel.
The angles $6c - 40^\circ$ and $2c - 20^\circ$ are consecutive interior angles, so they sum to $180^\circ$ .
$(6c - 40^\circ) + (2c - 20^\circ) = 180^\circ$ $8c - 60 = 180$
Solve for $c$ .
$8c = 180 + 60$ $8c = 240$ $c = \frac{240}{8}$ $c = \boxed{30}$
Angle $d$ and the angle $6c - 40^\circ$ are vertically opposite angles, so they are equal.
$d = 6c - 40^\circ$ $d = 6(30) - 40$ $d = 180 - 40$ $d = \boxed{140^\circ}$
** (Bottom left, intersecting lines)**
Vertically opposite angles are equal.
$t + 30^\circ = 60^\circ$
Solve for $t$ .
$t = 60 - 30$ $t = \boxed{30}$
** (Bottom left triangle)**
The markings on the sides indicate that all three sides of the triangle are equal, meaning it is an equilateral triangle.
All angles in an equilateral triangle are $60^\circ$ .
$2x - 30^\circ = 60^\circ$
Solve for $x$ .
$2x = 60 + 30$ $2x = 90$ $x = \frac{90}{2}$ $x = \boxed{45}$
** (Bottom middle, angles on a straight line)**
Angles on a straight line sum to $180^\circ$ .
The square symbol indicates a $90^\circ$ angle.
$20^\circ + 90^\circ + a = 180^\circ$ $110^\circ + a = 180^\circ$
Solve for $a$ .
$a = 180^\circ - 110^\circ$ $a = \boxed{70^\circ}$
** (Bottom right triangle, labeled "10.2")**
The interior angle adjacent to the $130^\circ$ exterior angle forms a linear pair, so it is $180^\circ - 130^\circ = 50^\circ$ .
This is the vertex angle of the isosceles triangle.
The markings indicate that the triangle is isosceles, and the two angles marked $b$ are the base angles, which are equal.
The sum of angles in a triangle is $180^\circ$ .
$b + b + 50^\circ = 180^\circ$ $2b + 50 = 180$
Solve for $b$ .
$2b = 180 - 50$ $2b = 130$ $b = \frac{130}{2}$ $b = \boxed{65^\circ}$
