We read your photo as:

Draw a line LPQ = 7.5cm and construct a perpendicular at A to B

Mathematics

ScanSolve AI Answer

Step-by-step solution

5 steps

Here are the steps to draw a line segment PQ of 7.5 cm and construct its perpendicular bisector. I will assume "construct a perpendicular" refers to constructing a perpendicular bisector of PQ, as the phrase "at A to B" is unclear in the context of line segment PQ.

  1. Draw a line segment PQ that is 7.5 cm7.5 \text{ cm} long using a ruler.

    Mark the endpoints as P and Q.

  2. Place the compass needle at point P.

    Open the compass to a radius greater than half the length of PQ (i.e., greater than 3.75 cm3.75 \text{ cm}). Draw an arc above and an arc below the line segment PQ.

  3. Without changing the compass radius, place the compass needle at point Q.

    Draw an arc above and an arc below the line segment PQ, ensuring these arcs intersect the previously drawn arcs.

  4. Label the two points where the arcs intersect as R and S.

  5. Use a ruler to draw a straight line connecting point R and point S.

    This line RS is the perpendicular bisector of PQ, and it will pass through the midpoint of PQ.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Mathematics Questions

QTo draw for me 90 degrees angle from a line p and q which is 7 centimetersQConstruct triangle PQR where PQ = 7.5 cm, PR = 9 cm, and angle QPR = 135 degrees. Then construct the…QConstruct a triangle PQR such that PQ=6cm and angle PQR=70 degrees. Construct the perpendicular…QExample 10.1 A, B is a line segment and the line is perpendicular bisector to point P. Show that P…QUsing a compass, go through the steps for constructing a line labelled CD perpendicular to both…
See all Mathematics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

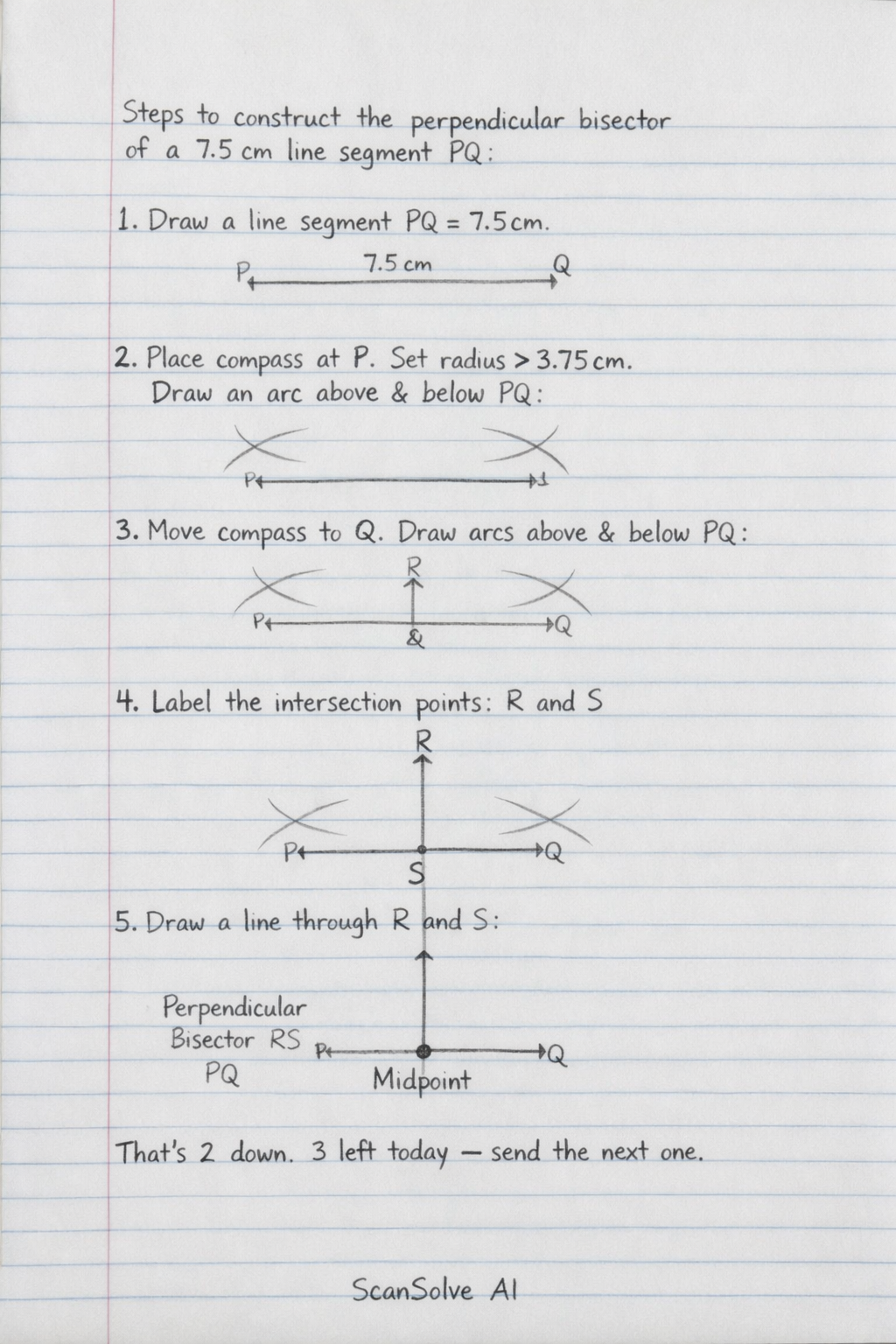

Handwritten step-by-step solution preview
