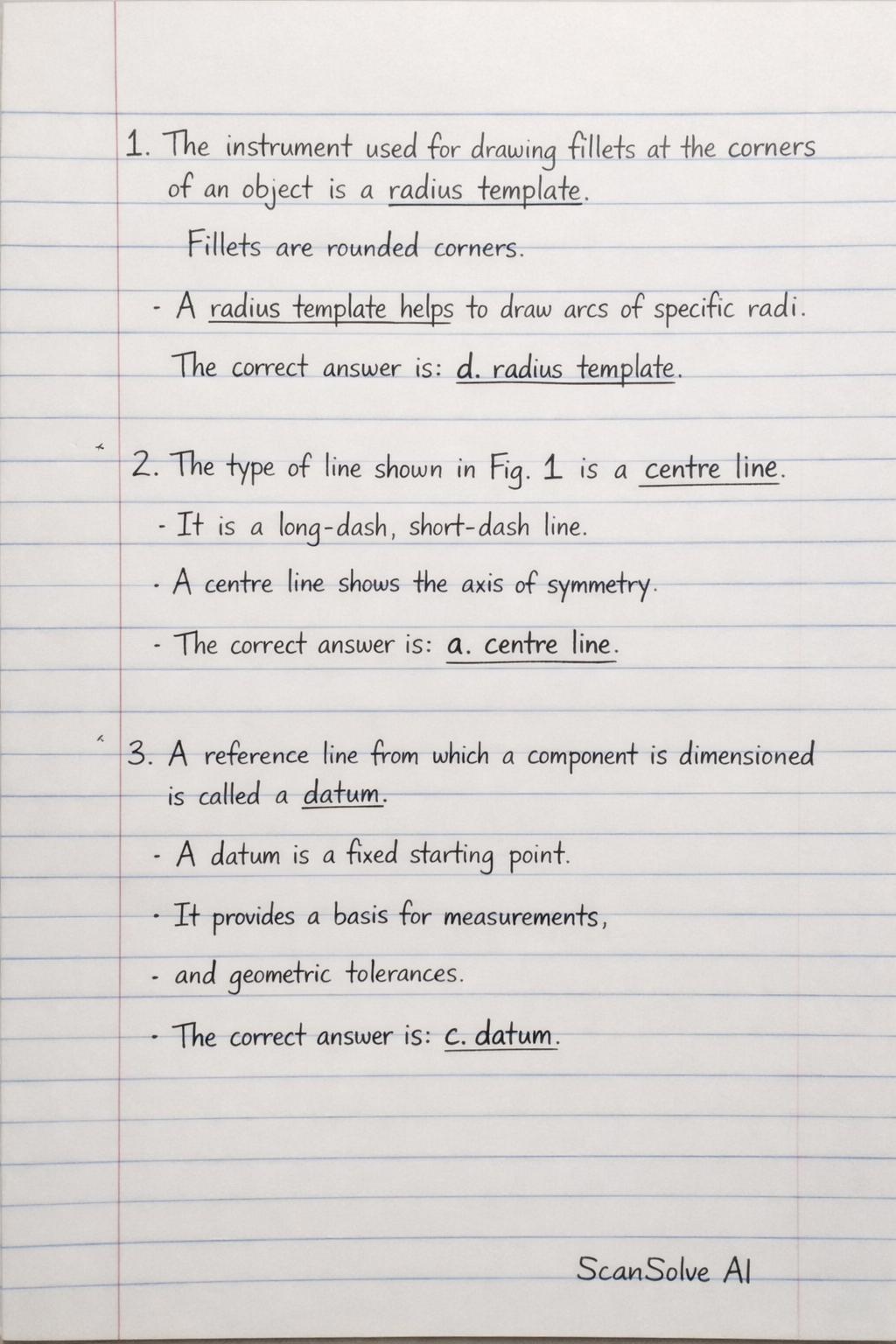

Here are the solutions to the questions from the image: 1. The instrument used for drawing fillets at the corners of an object is a radius template. Fillets are rounded corners, and a radius template helps draw arcs of specific radii. The correct answer is d. radius template. 2. The type of line shown in Fig. 1 (a long-dash, short-dash line) is a centre line. It is used to indicate the axis of symmetry or the center of circles and arcs. The correct answer is a. centre line. 3. A reference line on a drawing from which a component is dimensioned is called a datum. A datum provides a basis for measurements and geometric tolerances. The correct ✂️ _That answer was long and got cut off. Reply continue and I'll finish it._
