Calculate the shape descriptors: Sphericity, Aspect Ratio, Elongation Ratio, and Flatness Ratio given Length (7.0 mm), Width (2.5 mm), and Thickness (2.0 mm).

Mathematics

ScanSolve AI Answer

Answers

4 parts
a(i)
0.467
a(ii)
0.357
a(iii)
2.8
a(iv)
0.8

Step-by-step solution

12 steps

Here is the solution to the exam question:

Part a(i)· 3 steps

Sphericity (SS)

Calculate the shape descriptors

Given dimensions:

  • Length (LL) = 7.0 mm7.0 \text{ mm}
  • Width (WW) = 2.5 mm2.5 \text{ mm}
  • Thickness (TT) = 2.0 mm2.0 \text{ mm}

  1. State the formula for Sphericity.

    S=(LWT)1/3LS = \frac{(LWT)^{1/3}}{L}

  2. Substitute the given values into the formula.

    S=(7.0 mm×2.5 mm×2.0 mm)1/37.0 mmS = \frac{(7.0 \text{ mm} \times 2.5 \text{ mm} \times 2.0 \text{ mm})^{1/3}}{7.0 \text{ mm}} S=(35.0 mm3)1/37.0 mmS = \frac{(35.0 \text{ mm}^3)^{1/3}}{7.0 \text{ mm}} S=3.271 mm7.0 mmS = \frac{3.271 \text{ mm}}{7.0 \text{ mm}}

  3. Calculate the Sphericity.

    S≈0.467S \approx 0.467

    The sphericity is:

    0.467\boxed{0.467}

Part a(ii)0.357

Aspect Ratio (RaR_a)

  1. State the formula for Aspect Ratio.

    Ra=WLR_a = \frac{W}{L}

  2. Substitute the given values into the formula.

    Ra=2.5 mm7.0 mmR_a = \frac{2.5 \text{ mm}}{7.0 \text{ mm}}

  3. Calculate the Aspect Ratio.

    Ra≈0.357R_a \approx 0.357

    The aspect ratio is:

    0.357\boxed{0.357}

Part a(iii)2.8

Elongation Ratio (ReR_e)

  1. State the formula for Elongation Ratio.

    Re=LWR_e = \frac{L}{W}

  2. Substitute the given values into the formula.

    Re=7.0 mm2.5 mmR_e = \frac{7.0 \text{ mm}}{2.5 \text{ mm}}

  3. Calculate the Elongation Ratio.

    Re=2.8R_e = 2.8

    The elongation ratio is:

    2.8\boxed{2.8}

Part a(iv)0.8

Flatness Ratio (RfR_f)

  1. State the formula for Flatness Ratio.

    Rf=TWR_f = \frac{T}{W}

  2. Substitute the given values into the formula.

    Rf=2.0 mm2.5 mmR_f = \frac{2.0 \text{ mm}}{2.5 \text{ mm}}

  3. Calculate the Flatness Ratio.

    Rf=0.8R_f = 0.8

    The flatness ratio is:

    0.8\boxed{0.8}

Part b

Briefly explain what the calculated Elongation Ratio (ReR_e) tells you about the shape of this rice grain.

The calculated Elongation Ratio (Re=2.8R_e = 2.8) indicates that the rice grain is significantly elongated. Specifically, its length is 2.8 times greater than its width, confirming it has a long, slender shape rather than being round or flat.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Mathematics Questions

QHow many square units in each shape? 2. Measure and label the length and the width of the sides. 3…QDetermine the ratio of the linear dimensions (e.g., radii or heights) of the similar cylinders.QCalculate the area of each of the following shapes:QState the mathematical names of these shapes. (a) Shape A, (b) Shape B, (c) Shape C. Calculate the…QCalculate the volumes of the following shapes: a) Rectangular prism, b) Cylinder, c) Triangular…
See all Mathematics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

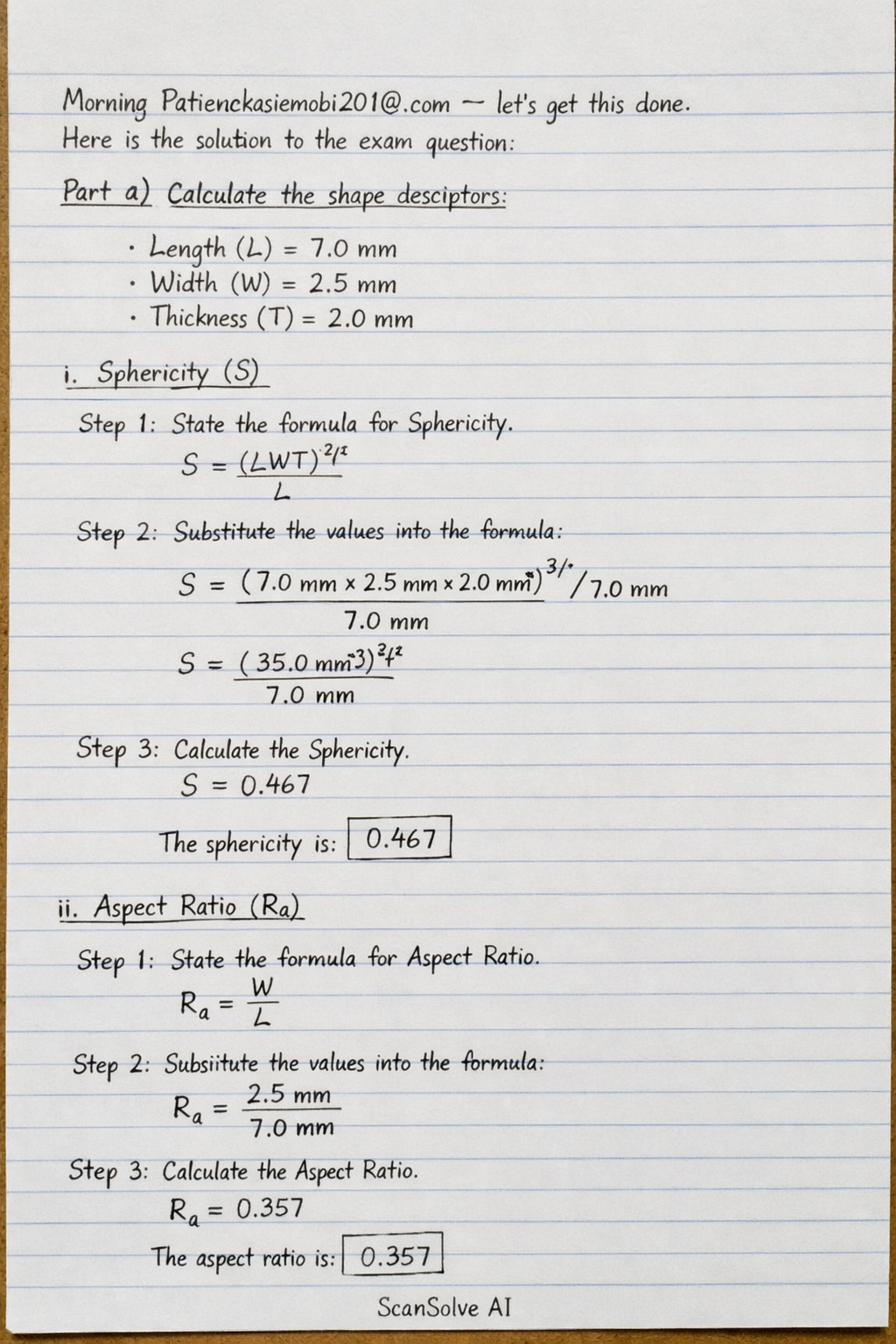

Handwritten step-by-step solution preview
