My apologies if you missed them in the previous message. Here are the solutions for questions 17-20 again:

Part 17· 3 steps

  1. Identify the given current equation and resistance, and the formulas for mean power.

    The alternating current is I=3sin⁡(50t)I = 3 \sin (50t). From this, the peak current is Ipeak=3 AI_{peak} = 3 \text{ A}.
    The resistive load is R=10 ΩR = 10 \text{ Ω}.
    The mean power dissipated in a resistive load is Pmean=Irms2RP_{mean} = I_{rms}^2 R.

  2. Calculate the RMS current from the peak current.

    The relationship between RMS current (IrmsI_{rms}) and peak current (IpeakI_{peak}) is Irms=Ipeak2I_{rms} = \frac{I_{peak}}{\sqrt{2}}.

    Irms=3 A2I_{rms} = \frac{3 \text{ A}}{\sqrt{2}}
  3. Substitute the RMS current and resistance into the mean power formula.

    Pmean=(32)2×10 ΩP_{mean} = \left(\frac{3}{\sqrt{2}}\right)^2 \times 10 \text{ Ω} Pmean=92×10 WP_{mean} = \frac{9}{2} \times 10 \text{ W} Pmean=4.5×10 WP_{mean} = 4.5 \times 10 \text{ W} Pmean=45 WP_{mean} = 45 \text{ W}

    The mean power dissipated is 45 W\boxed{\text{}45 \text{ W}}.

Part 18

23.6 A\text{}23.6 \text{ A}

  1. Identify the given power and RMS voltage, and the formulas for power and peak current.

    Power of the heater P=4.0 kW=4000 WP = 4.0 \text{ kW} = 4000 \text{ W}.
    RMS voltage of the supply Vrms=240 VV_{rms} = 240 \text{ V}.
    The power in an AC circuit is P=VrmsIrmsP = V_{rms} I_{rms}.
    The relationship between RMS current and peak current is Ipeak=Irms2I_{peak} = I_{rms} \sqrt{2}.

  2. Calculate the RMS current.

    Irms=PVrmsI_{rms} = \frac{P}{V_{rms}} Irms=4000 W240 VI_{rms} = \frac{4000 \text{ W}}{240 \text{ V}} Irms=40024 A=503 A≈16.67 AI_{rms} = \frac{400}{24} \text{ A} = \frac{50}{3} \text{ A} \approx 16.67 \text{ A}
  3. Calculate the peak current.

    Ipeak=Irms2I_{peak} = I_{rms} \sqrt{2} Ipeak=503 A×2I_{peak} = \frac{50}{3} \text{ A} \times \sqrt{2} Ipeak≈16.67 A×1.414I_{peak} \approx 16.67 \text{ A} \times 1.414 Ipeak≈23.57 AI_{peak} \approx 23.57 \text{ A}

    The peak current drawn is 23.6 A\boxed{\text{}23.6 \text{ A}}.

Part 19

4107 turns\text{}4107 \text{ turns}

  1. Identify the given voltages and secondary turns, and the transformer turns ratio formula.

    Primary voltage Vp=220 VV_p = 220 \text{ V}.
    Secondary voltage Vs=7.5 VV_s = 7.5 \text{ V}.
    Number of turns on the secondary coil Ns=140N_s = 140 turns.
    For an ideal transformer, the ratio of voltages is equal to the ratio of turns: VpVs=NpNs\frac{V_p}{V_s} = \frac{N_p}{N_s}.

  2. Rearrange the formula to solve for the number of turns on the primary coil (NpN_p) and substitute the values.

    Np=Ns×VpVsN_p = N_s \times \frac{V_p}{V_s} Np=140 turns×220 V7.5 VN_p = 140 \text{ turns} \times \frac{220 \text{ V}}{7.5 \text{ V}} Np=140×29.333...N_p = 140 \times 29.333... Np≈4106.67N_p \approx 4106.67

    Since the number of turns must be an integer, we round to the nearest whole number.
    The number of turns on the primary coil is 4107 turns\boxed{\text{}4107 \text{ turns}}.

Part 20

0.125 A\text{}0.125 \text{ A}

  1. Identify the given voltages and secondary current, and the power conservation formula for an ideal transformer.

    Primary voltage Vp=240 VV_p = 240 \text{ V}.
    Secondary voltage Vs=15 VV_s = 15 \text{ V}.
    Secondary current Is=2.0 AI_s = 2.0 \text{ A}.
    For an ideal transformer, the power in the primary coil equals the power in the secondary coil: Pp=PsP_p = P_s.
    This can be written as VpIp=VsIsV_p I_p = V_s I_s.

  2. Rearrange the formula to solve for the primary current (IpI_p) and substitute the values.

    Ip=VsIsVpI_p = \frac{V_s I_s}{V_p} Ip=(15 V)×(2.0 A)240 VI_p = \frac{(15 \text{ V}) \times (2.0 \text{ A})}{240 \text{ V}} Ip=30 W240 VI_p = \frac{30 \text{ W}}{240 \text{ V}} Ip=18 AI_p = \frac{1}{8} \text{ A} Ip=0.125 AI_p = 0.125 \text{ A}

    The current drawn from the primary coil is 0.125 A\boxed{\text{}0.125 \text{ A}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

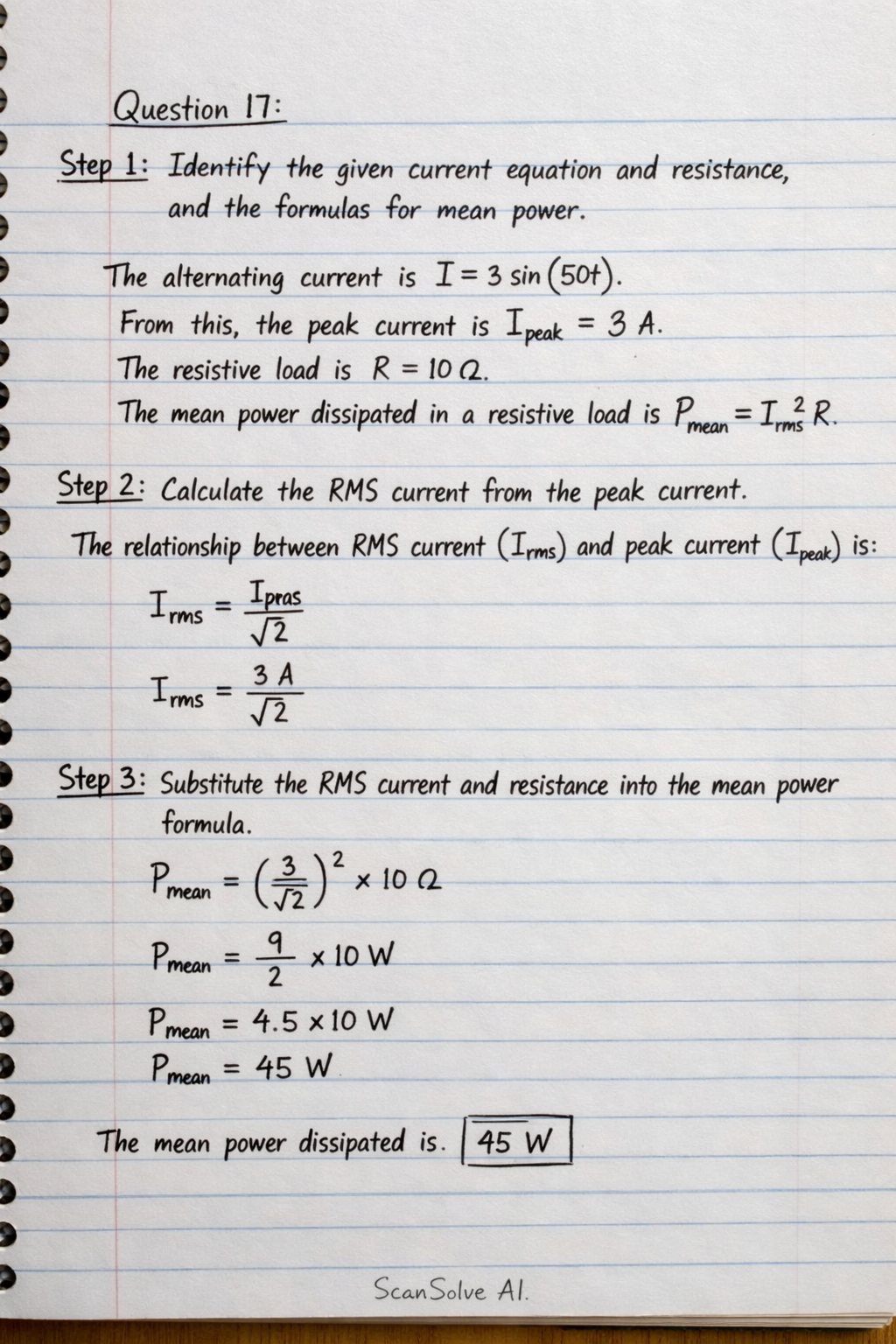

Handwritten step-by-step solution preview
