This physics problem tests your understanding of fundamental physical laws and their applications. The step-by-step solution below breaks down the problem using relevant equations and physical reasoning.
ScanSolve AI Answer

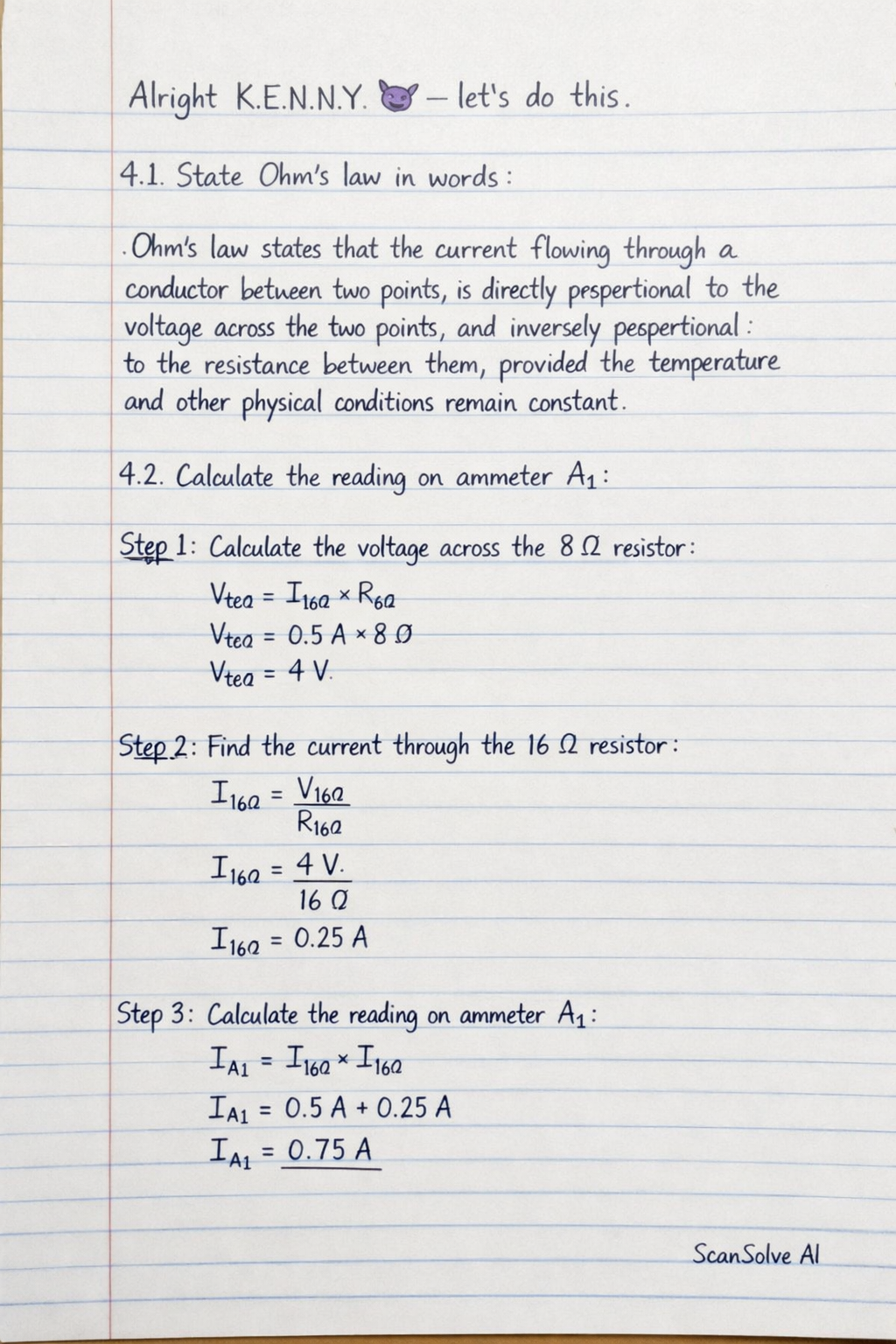

Alright K.E.N.N.Y.😈 — let's do this. 4.1 State Ohm's law in words. Ohm's law states that the current flowing through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance between them, provided the temperature and other physical conditions remain constant. 4.2 Calculate the reading on ammeter A_1. Step 1: Calculate the voltage across the 8 \, resistor. V_8 = I_8 × R_8 = 0.5 \, A × 8 \, = 4 \, V Step 2: Calculate the current through the 16 \, resistor. Since the 8 \, and 16 \, resistors are in parallel, the voltage across them is the same. I_16 = V_16R_16 = (4 \, V)/(16 \, ) = 0.25 \, A Step 3: The reading on ammeter A_1 is the total current flowing out of the parallel combination of 8 \, and 16 \, resistors. I_A1 = I_8 + I_16 = 0.5 \, A +
