We read your photo as:

A light ray travels from oil (n=2) into glass (n=1.5). If the angle of incidence is 30 degrees, what is the angle of refraction?

Physics

ScanSolve AI Answer

Answer

r≈41.81∘r \approx 41.81^\circ

Step-by-step solution

5 steps

  1. Identify the given values.

    The light ray is incident from Oil into Glass.
    The refractive index of Oil is noil=63=2n_{oil} = \frac{6}{3} = 2.
    The refractive index of Glass is nglass=32=1.5n_{glass} = \frac{3}{2} = 1.5.
    The angle of incidence in Oil is θoil=30∘\theta_{oil} = 30^\circ.
    The angle of refraction in Glass is rr.

  2. Apply Snell's Law.

    Snell's Law states n1sin⁡θ1=n2sin⁡θ2n_1 \sin \theta_1 = n_2 \sin \theta_2.
    In this case, noilsin⁡θoil=nglasssin⁡rn_{oil} \sin \theta_{oil} = n_{glass} \sin r.

  3. Substitute the values into Snell's Law.

    2×sin⁡30∘=1.5×sin⁡r2 \times \sin 30^\circ = 1.5 \times \sin r

  4. Solve for sin⁡r\sin r.

    We know that sin⁡30∘=0.5\sin 30^\circ = 0.5.

    2×0.5=1.5×sin⁡r2 \times 0.5 = 1.5 \times \sin r 1=1.5×sin⁡r1 = 1.5 \times \sin r sin⁡r=11.5\sin r = \frac{1}{1.5} sin⁡r=132\sin r = \frac{1}{\frac{3}{2}} sin⁡r=23\sin r = \frac{2}{3}

  5. Calculate the angle rr.

    r=arcsin⁡(23)r = \arcsin\left(\frac{2}{3}\right) r≈41.81∘r \approx 41.81^\circ

    The value of rr is approximately 41.81∘41.81^\circ.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QThe figure below shows a ray of light passing from glass to air at an angle of 60° to the interface…QA ray of light makes a glancing angle of incidence of 60° with a flat glass surface. Given that the…QA ray of light travels from air to glass. i) Determine the angle of incidence. ii) Calculate the…QLight is incident on an air glass boundary at an angle of incidence of 400. If the refractive index…QFigure 8 shows a ray of light ray travelling from air to glass. Determine the angle of incidence…
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

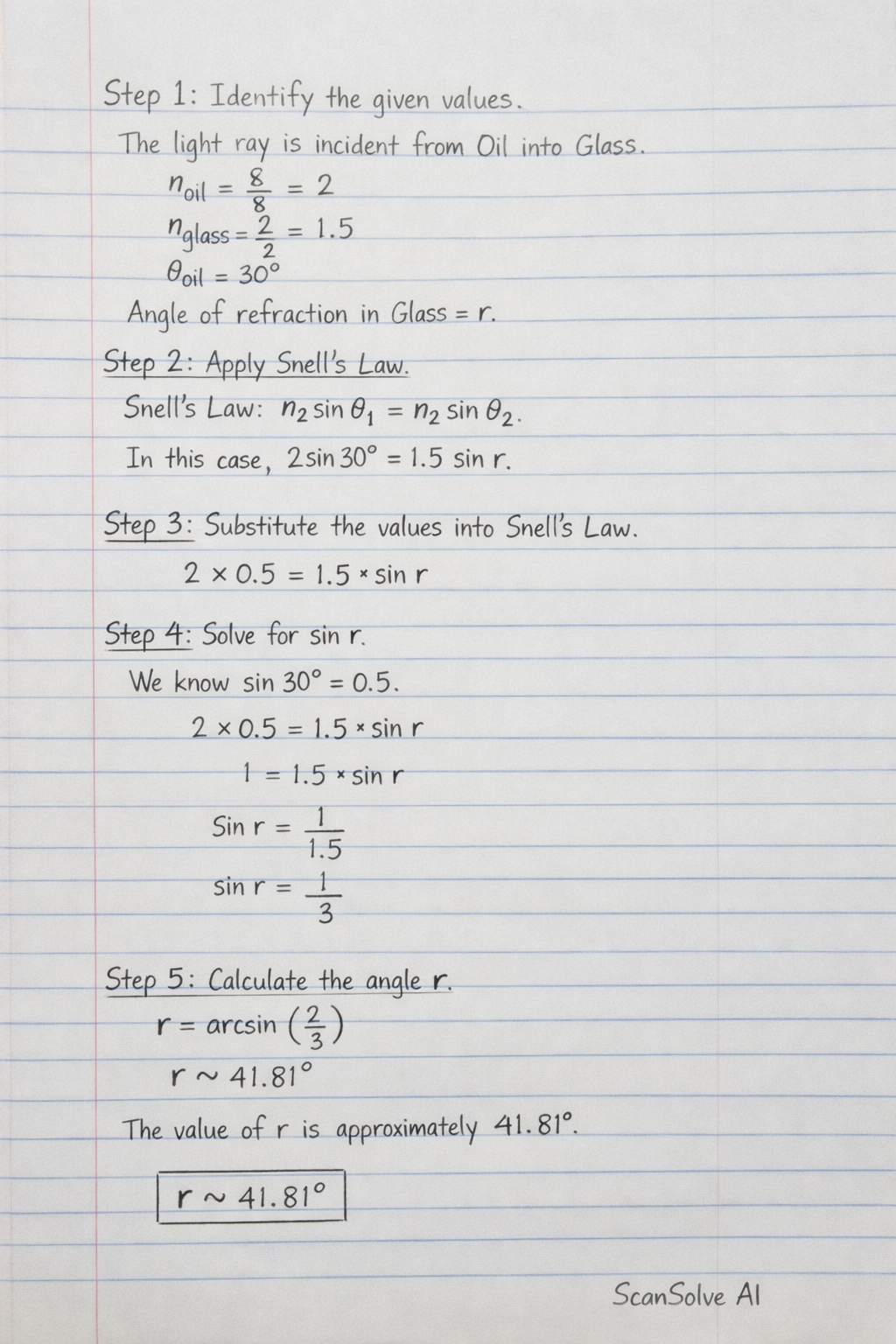

Handwritten step-by-step solution preview
