A radio signal of length L, emits a signal of wavelength λ and power P. These equation quantities are related by P = K I² [L/λ]² where I is current. Determine the S.I unit of K

Physics

ScanSolve AI Answer

Answer

WA2\frac{\text{W}}{\text{A}^2}

Step-by-step solution

4 steps

To determine the SI unit of KK, we need to analyze the given equation and the SI units of each variable.

The given equation is:

P=KI2[Lλ]2P = KI^2 \left[\frac{L}{\lambda}\right]^2
  1. Identify the SI units of the known quantities.

    • PP (Power) has the SI unit of Watt (W).
    • II (Current) has the SI unit of Ampere (A).
    • LL (Length) has the SI unit of meter (m).
    • λ\lambda (Wavelength) has the SI unit of meter (m).
  2. Substitute the units into the equation.

    We want to find the unit of KK. Let [X][X] denote the unit of quantity XX.

    [P]=[K][I]2[Lλ]2[P] = [K] [I]^2 \left[\frac{L}{\lambda}\right]^2

    Substitute the known units:

    W=[K](A)2[mm]2\text{W} = [K] (\text{A})^2 \left[\frac{\text{m}}{\text{m}}\right]^2
  3. Simplify the units.

    The term [mm]2\left[\frac{\text{m}}{\text{m}}\right]^2 simplifies to (1)2=1(1)^2 = 1, as it is a ratio of two lengths, making it dimensionless.
    So the equation becomes:

    W=[K]⋅A2⋅1\text{W} = [K] \cdot \text{A}^2 \cdot 1 W=[K]⋅A2\text{W} = [K] \cdot \text{A}^2
  4. Solve for the unit of KK.

    Divide both sides by A2\text{A}^2:

    [K]=WA2[K] = \frac{\text{W}}{\text{A}^2}

    The SI unit of KK is WA2\boxed{\frac{\text{W}}{\text{A}^2}}.

    Alternatively, we can express this in terms of base SI units:
    Since 1 W=1Js1 \text{ W} = 1 \frac{\text{J}}{\text{s}} and 1 J=1 N⋅m=1kg⋅ms2⋅m=1kg⋅m2s21 \text{ J} = 1 \text{ N} \cdot \text{m} = 1 \frac{\text{kg} \cdot \text{m}}{\text{s}^2} \cdot \text{m} = 1 \frac{\text{kg} \cdot \text{m}^2}{\text{s}^2},
    Then 1 W=1kg⋅m2s31 \text{ W} = 1 \frac{\text{kg} \cdot \text{m}^2}{\text{s}^3}.
    So, the unit of KK can also be expressed as:

    [K]=kg⋅m2/s3A2=kg⋅m2⋅s−3⋅A−2[K] = \frac{\text{kg} \cdot \text{m}^2/\text{s}^3}{\text{A}^2} = \text{kg} \cdot \text{m}^2 \cdot \text{s}^{-3} \cdot \text{A}^{-2}
Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

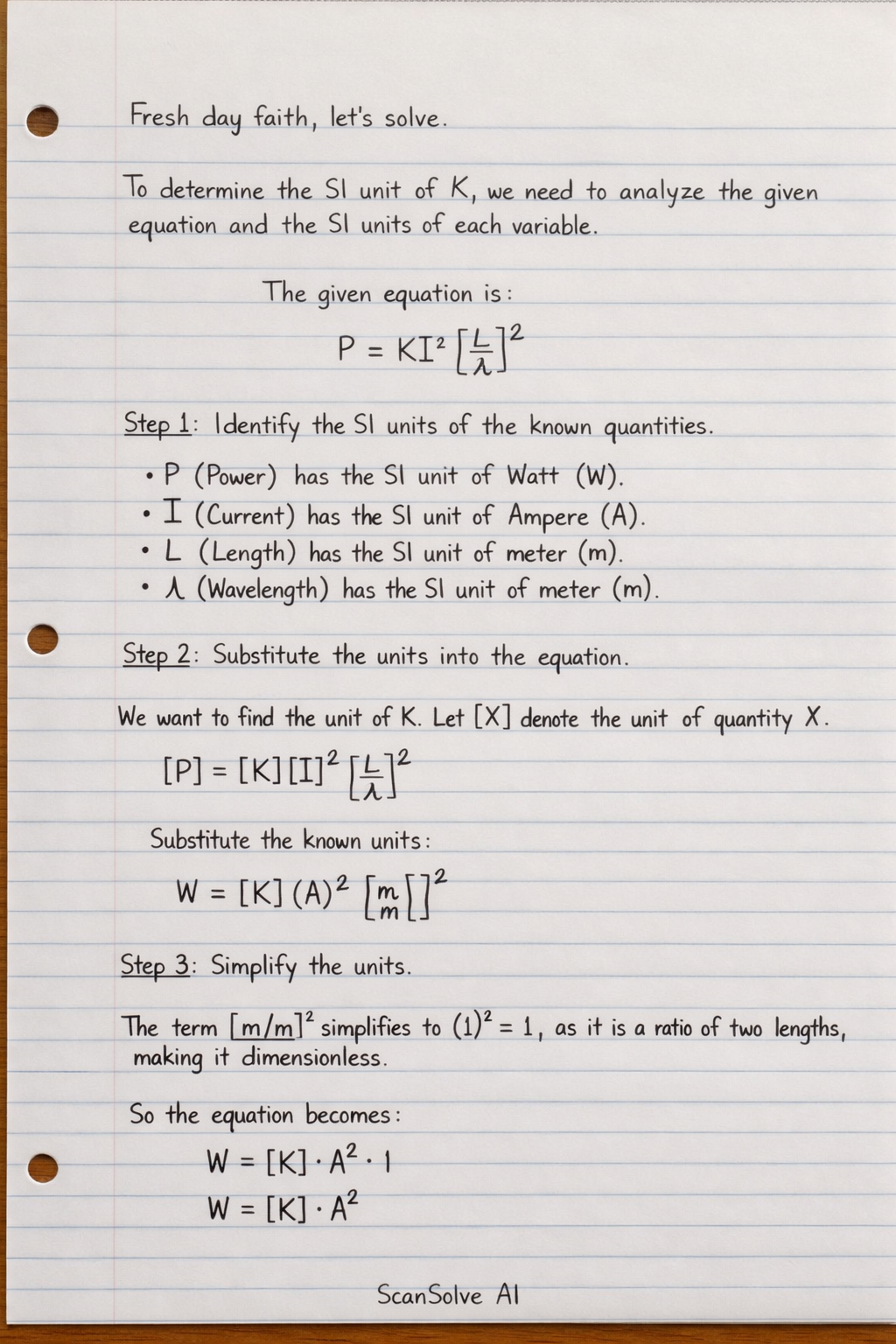

Handwritten step-by-step solution preview
