What is a Rigid body? Find the Centre of mass of 3 particles at the edge of an equilateral triangle with masses 50g, 75g and 100g respectively, each side of the triangle is 5m long.

Physics

ScanSolve AI Answer

Step-by-step solution

5 steps

Here are the solutions to your questions:

  1. What is a Rigid body? A rigid body is an idealized solid object that does not deform under the action of external forces. This means that the distance between any two particles within the body remains constant, regardless of the forces applied to it.

  2. Find the Centre of mass of 3 particles at the edge of an equilateral triangle with masses 50g, 75g and 100g respectively, each side of the triangle is 5m long.

  1. Assign coordinates to each particle.

    Let the side length of the equilateral triangle be L=5 mL = 5 \, \text{m}. We place the first particle at the origin.

    • Particle 1 (m1=50 gm_1 = 50 \, \text{g}) at (x1,y1)=(0,0)(x_1, y_1) = (0, 0).
    • Particle 2 (m2=75 gm_2 = 75 \, \text{g}) at (x2,y2)=(L,0)=(5,0)(x_2, y_2) = (L, 0) = (5, 0).
    • Particle 3 (m3=100 gm_3 = 100 \, \text{g}) at (x3,y3)=(L2,L32)=(52,532)(x_3, y_3) = \left(\frac{L}{2}, \frac{L\sqrt{3}}{2}\right) = \left(\frac{5}{2}, \frac{5\sqrt{3}}{2}\right).
  2. Calculate the total mass (MtotalM_{total}).

    Mtotal=m1+m2+m3=50 g+75 g+100 g=225 gM_{total} = m_1 + m_2 + m_3 = 50 \, \text{g} + 75 \, \text{g} + 100 \, \text{g} = 225 \, \text{g}
  3. Calculate the x-coordinate of the center of mass (XCMX_{CM}).

    The formula for XCMX_{CM} is ∑mixi∑mi\frac{\sum m_i x_i}{\sum m_i}.

    ∑mixi=(50 g)(0 m)+(75 g)(5 m)+(100 g)(52 m)\sum m_i x_i = (50 \, \text{g})(0 \, \text{m}) + (75 \, \text{g})(5 \, \text{m}) + (100 \, \text{g})\left(\frac{5}{2} \, \text{m}\right) ∑mixi=0+375 g⋅m+250 g⋅m=625 g⋅m\sum m_i x_i = 0 + 375 \, \text{g} \cdot \text{m} + 250 \, \text{g} \cdot \text{m} = 625 \, \text{g} \cdot \text{m} XCM=625 g⋅m225 g=259 mX_{CM} = \frac{625 \, \text{g} \cdot \text{m}}{225 \, \text{g}} = \frac{25}{9} \, \text{m}
  4. Calculate the y-coordinate of the center of mass (YCMY_{CM}).

    The formula for YCMY_{CM} is ∑miyi∑mi\frac{\sum m_i y_i}{\sum m_i}.

    ∑miyi=(50 g)(0 m)+(75 g)(0 m)+(100 g)(532 m)\sum m_i y_i = (50 \, \text{g})(0 \, \text{m}) + (75 \, \text{g})(0 \, \text{m}) + (100 \, \text{g})\left(\frac{5\sqrt{3}}{2} \, \text{m}\right) ∑miyi=0+0+2503 g⋅m=2503 g⋅m\sum m_i y_i = 0 + 0 + 250\sqrt{3} \, \text{g} \cdot \text{m} = 250\sqrt{3} \, \text{g} \cdot \text{m} YCM=2503 g⋅m225 g=1039 mY_{CM} = \frac{250\sqrt{3} \, \text{g} \cdot \text{m}}{225 \, \text{g}} = \frac{10\sqrt{3}}{9} \, \text{m}
  5. State the coordinates of the center of mass.

    The center of mass is (XCM,YCM)(X_{CM}, Y_{CM}).

    (259 m,1039 m)\boxed{\left(\frac{25}{9} \, \text{m}, \frac{10\sqrt{3}}{9} \, \text{m}\right)}
Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

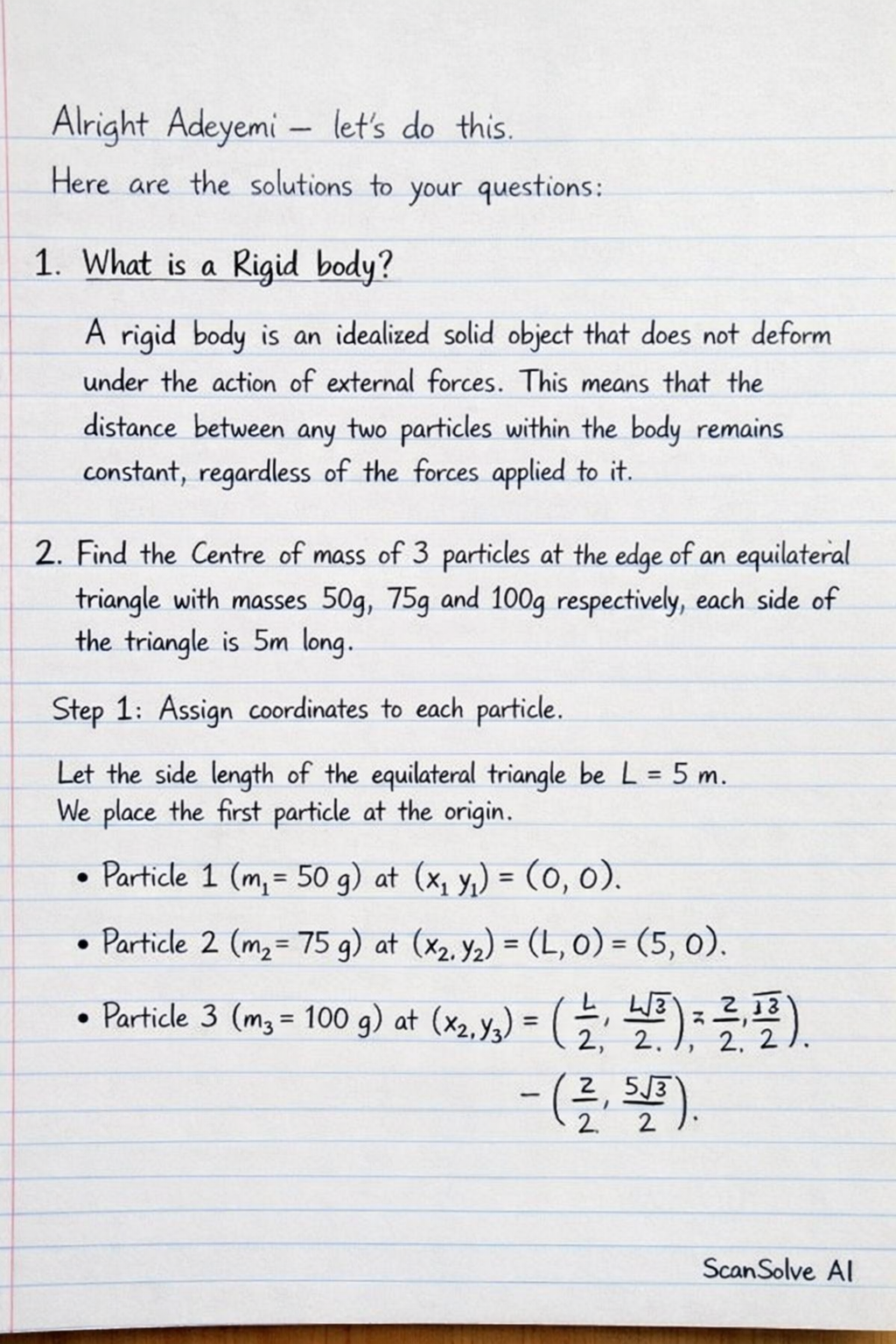

Handwritten step-by-step solution preview
