We read your photo as:

A wire has a resistance of 3 . Its cross-sectional area is 0.60 mm2 and its resistivity is 7.2 x 10⁻⁷ * m. What is its length?

Physics

ScanSolve AI Answer

Answer

2.5 m\text{2.5 m}

Step-by-step solution

3 steps
  1. Identify the given values and convert units.

    The formula for resistance is R=ρLAR = \rho \frac{L}{A}, where RR is resistance, ρ\rho is resistivity, LL is length, and AA is cross-sectional area.

    Given values:

    • Cross-sectional area, A=0.60 mm2A = 0.60 \text{ mm}^2.
    • Resistivity, ρ=7.2×10−7Ω⋅m\rho = 7.2 \times 10^{-7} \Omega \cdot \text{m}. (Note: The question states the unit as Ω\Omega, but resistivity is typically measured in Ω⋅m\Omega \cdot \text{m}. We assume the intended unit is Ω⋅m\Omega \cdot \text{m} for dimensional consistency.)
    • Resistance, R=3ΩR = 3 \Omega.

    Convert the cross-sectional area from mm2\text{mm}^2 to m2\text{m}^2:
    Since 1 mm=10−3 m1 \text{ mm} = 10^{-3} \text{ m}, then 1 mm2=(10−3 m)2=10−6 m21 \text{ mm}^2 = (10^{-3} \text{ m})^2 = 10^{-6} \text{ m}^2.

    A=0.60 mm2=0.60×10−6 m2A = 0.60 \text{ mm}^2 = 0.60 \times 10^{-6} \text{ m}^2
  2. Rearrange the resistance formula to solve for length LL.

    R=ρLAR = \rho \frac{L}{A}

    Multiply both sides by AA:

    R⋅A=ρ⋅LR \cdot A = \rho \cdot L

    Divide both sides by ρ\rho:

    L=R⋅AρL = \frac{R \cdot A}{\rho}
  3. Substitute the values and calculate the length LL.

    L=(3Ω)⋅(0.60×10−6 m2)7.2×10−7Ω⋅mL = \frac{(3 \Omega) \cdot (0.60 \times 10^{-6} \text{ m}^2)}{7.2 \times 10^{-7} \Omega \cdot \text{m}} L=1.8×10−6Ω⋅m27.2×10−7Ω⋅mL = \frac{1.8 \times 10^{-6} \Omega \cdot \text{m}^2}{7.2 \times 10^{-7} \Omega \cdot \text{m}} L=1.87.2×10−610−7 mL = \frac{1.8}{7.2} \times \frac{10^{-6}}{10^{-7}} \text{ m} L=0.25×10(−6−(−7)) mL = 0.25 \times 10^{(-6 - (-7))} \text{ m} L=0.25×101 mL = 0.25 \times 10^{1} \text{ m} L=2.5 mL = 2.5 \text{ m}

    The length of the wire is 2.5 m\text{2.5 m}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

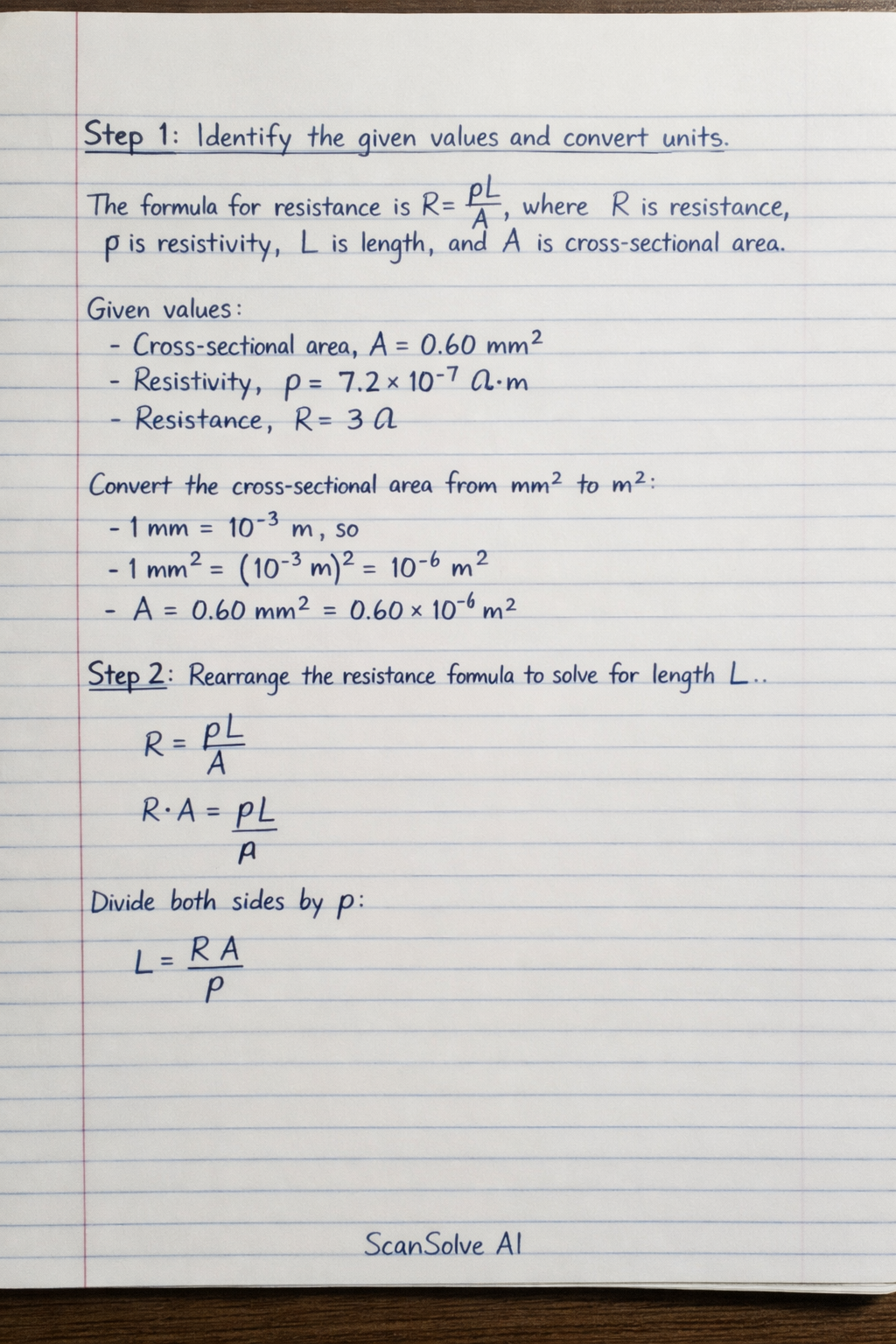

Handwritten step-by-step solution preview
