Question

Calculate the amount of heat transferred through a steel plate given its dimensions, temperatures, and thermal conductivity.

ScanSolve AI Tutor · Accepted Answer

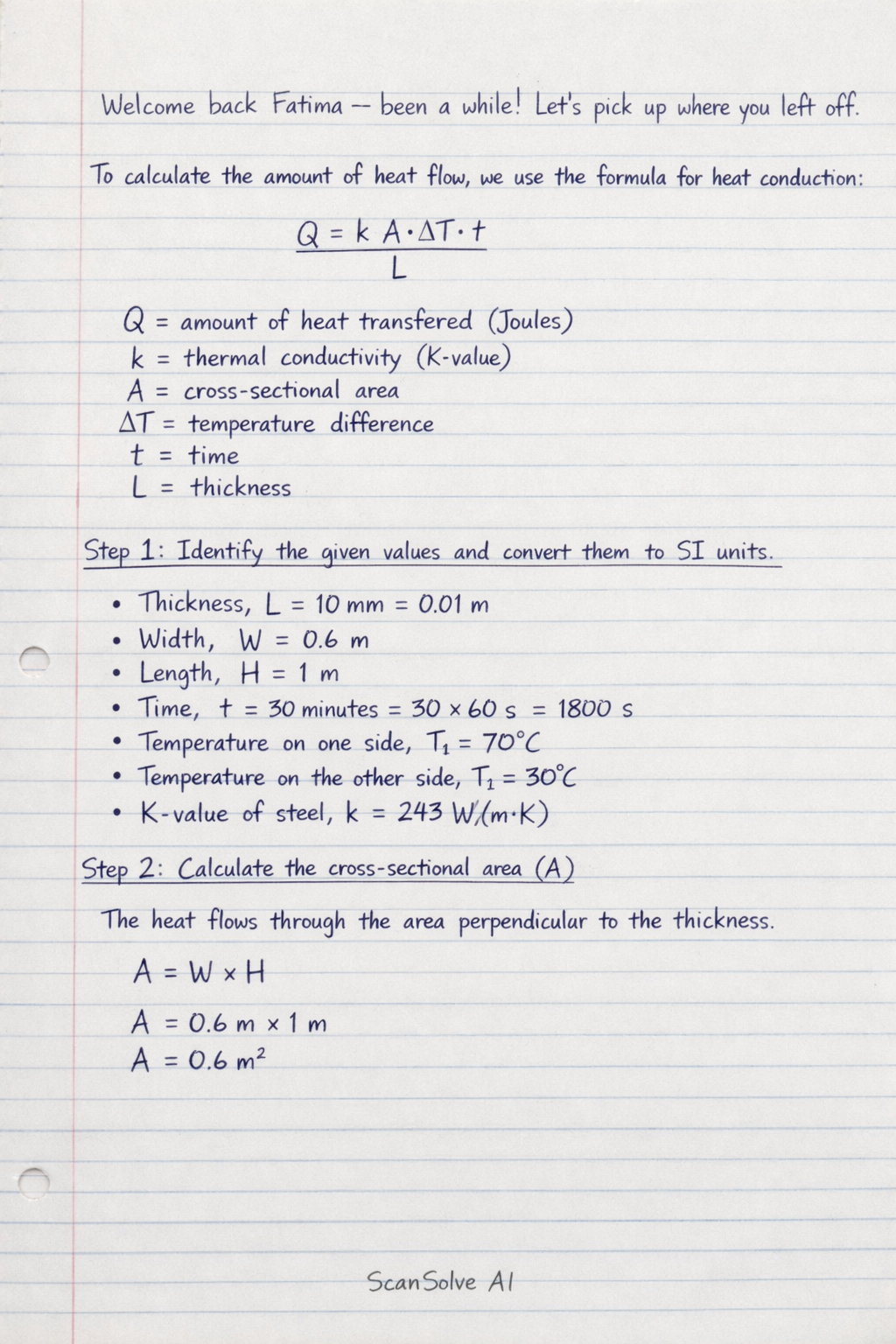

To calculate the amount of heat flow, we use the formula for heat conduction:

Q = \frac{k \cdot A \cdot \Delta T \cdot t}{L}

where:
$Q$ = amount of heat transferred (Joules)
$k$ = thermal conductivity (K-value)
$A$ = cross-sectional area
$\Delta T$ = temperature difference
$t$ = time
$L$ = thickness

Identify the given values and convert them to SI units.
- Thickness, $L = 10 \text{ mm} = 0.01 \text{ m}$
- Width, $W = 0.6 \text{ m}$
- Length, $H = 1 \text{ m}$
- Time, $t = 30 \text{ minutes} = 30 \times 60 \text{ s} = 1800 \text{ s}$
- Temperature on one side, $T_1 = 70^\circ\text{C}$
- Temperature on the other side, $T_2 = 30^\circ\text{C}$
- K-value of steel, $k = 243 \text{ W/(m}\cdot\text{K)}$
Calculate the cross-sectional area ( $A$ ).
The heat flows through the area perpendicular to the thickness.
$A = W \times H$ $A = 0.6 \text{ m} \times 1 \text{ m}$ $A = 0.6 \text{ m}^2$
Calculate the temperature difference ( $\Delta T$ ).
$\Delta T = T_1 - T_2$ $\Delta T = 70^\circ\text{C} - 30^\circ\text{C}$ $\Delta T = 40^\circ\text{C}$
Since a change of $1^\circ\text{C}$ is equal to a change of $1\text{ K}$ , $\Delta T = 40\text{ K}$ .
Substitute the values into the heat transfer formula.
$Q = \frac{243 \text{ W/(m}\cdot\text{K)} \times 0.6 \text{ m}^2 \times 40 \text{ K} \times 1800 \text{ s}}{0.01 \text{ m}}$ $Q = \frac{10497600 \text{ J}}{0.01}$ $Q = 1049760000 \text{ J}$
The amount of heat that will flow through the sheet of steel is $\boxed{\text{1,049,760,000 J}}$ .
