An equilateral triangular prism has a refractive index of 1.5. Calculate the angle of minimum deviation for light passing through it.

Physics

ScanSolve AI Answer

Step-by-step solution

8 steps

B. 37.2∘37.2^\circ

  1. Identify the given values.

    The prism is an equilateral triangular prism, so the prism angle A=60∘A = 60^\circ.
    The refractive index of the glass n=32=1.5n = \frac{3}{2} = 1.5.

  2. Use the formula for the refractive index of a prism at minimum deviation.

    The formula is:

    n=sin⁡(A+δm2)sin⁡(A2)n = \frac{\sin\left(\frac{A + \delta_m}{2}\right)}{\sin\left(\frac{A}{2}\right)}

    where δm\delta_m is the angle of minimum deviation.

  3. Substitute the known values into the formula.

    1.5=sin⁡(60∘+δm2)sin⁡(60∘2)1.5 = \frac{\sin\left(\frac{60^\circ + \delta_m}{2}\right)}{\sin\left(\frac{60^\circ}{2}\right)}

  4. Simplify the denominator.

    sin⁡(60∘2)=sin⁡(30∘)=0.5\sin\left(\frac{60^\circ}{2}\right) = \sin(30^\circ) = 0.5

  5. Substitute the simplified denominator back into the equation and solve for the sine term.

    1.5=sin⁡(60∘+δm2)0.51.5 = \frac{\sin\left(\frac{60^\circ + \delta_m}{2}\right)}{0.5} sin⁡(60∘+δm2)=1.5×0.5\sin\left(\frac{60^\circ + \delta_m}{2}\right) = 1.5 \times 0.5 sin⁡(60∘+δm2)=0.75\sin\left(\frac{60^\circ + \delta_m}{2}\right) = 0.75

  6. Find the angle by taking the inverse sine.

    60∘+δm2=arcsin⁡(0.75)\frac{60^\circ + \delta_m}{2} = \arcsin(0.75) 60∘+δm2≈48.59∘\frac{60^\circ + \delta_m}{2} \approx 48.59^\circ

  7. Solve for δm\delta_m.

    60∘+δm=2×48.59∘60^\circ + \delta_m = 2 \times 48.59^\circ 60∘+δm=97.18∘60^\circ + \delta_m = 97.18^\circ δm=97.18∘−60∘\delta_m = 97.18^\circ - 60^\circ δm=37.18∘\delta_m = 37.18^\circ

  8. Round the result to one decimal place and compare with the options.

    δm≈37.2∘\delta_m \approx 37.2^\circ.

    The closest option is B.

    The final answer is \boxed{\text{37.2^\circ}}.

Was this helpful?

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

More Physics Questions

QTo find the angle of deviation for a light ray passing through a triangular prism, we first need to…QTo calculate the angle of minimum deviation (delta_m) for a prism.QHere is a paraphrased version of the experimental report based on the provided documents…QLight is incident on an air glass boundary at an angle of incidence of 400. If the refractive index…Qc. Write down the relationship between refracting angle A of a triangle and minimum deviation Dm and…
See all Physics questions →
Got a syllabus? Photograph it and I'll tell you what's due and what's worth the most.

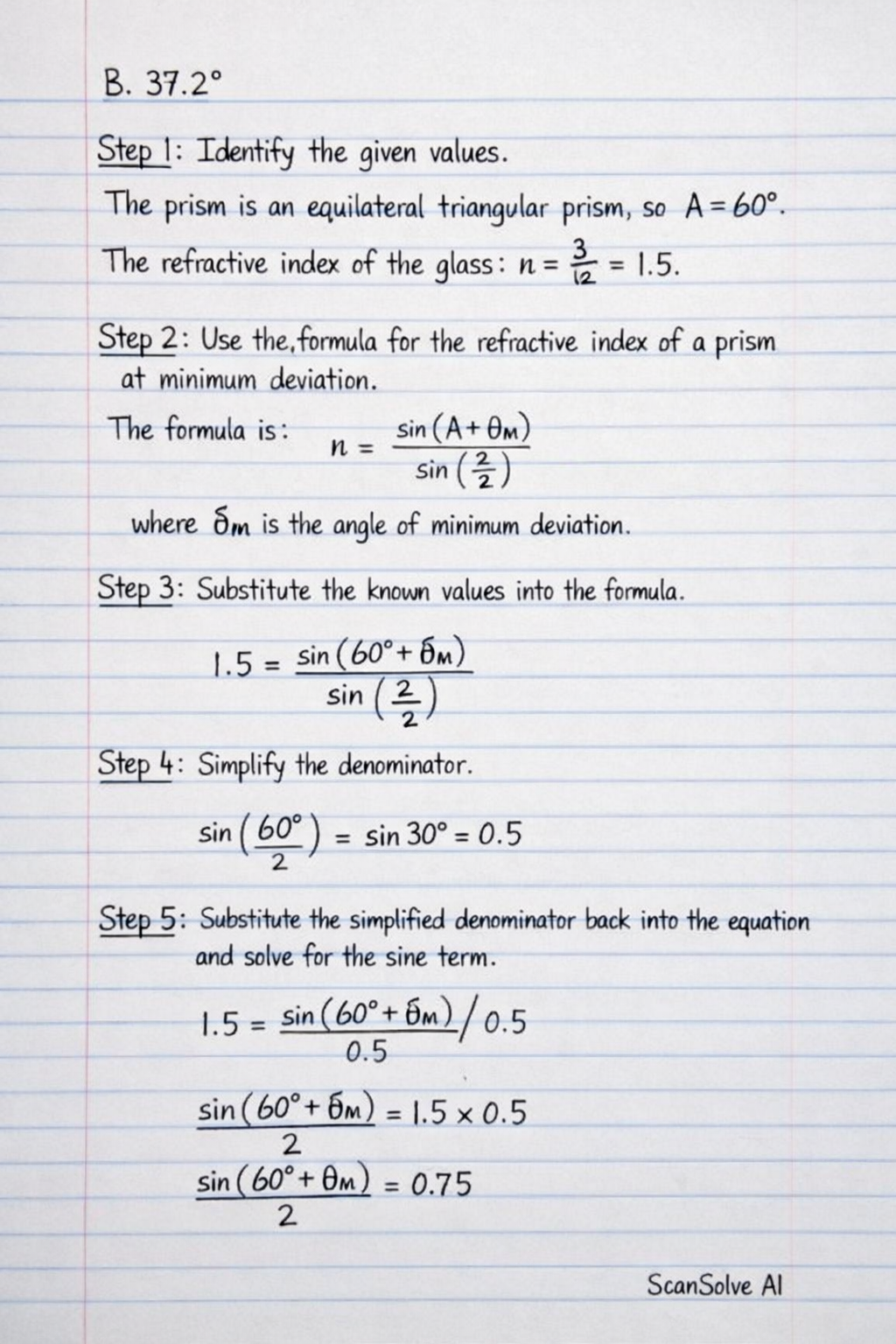

Handwritten step-by-step solution preview
