Calculate the equivalent resistance of the bottom branch.

Physics

ScanSolve AI Answer

Answer

2.0 A\text{2.0 A}

Step-by-step solution

4 steps
  1. Calculate the equivalent resistance of the bottom branch.

    The 5Ω and 10Ω resistors are in series in the bottom branch.

    Rbottom=5 Ω+10 Ω=15 ΩR_{bottom} = 5\,\Omega + 10\,\Omega = 15\,\Omega
  2. Calculate the current I1I_1 flowing through the bottom branch.

    The voltage across the bottom branch is 12V. Using Ohm's Law (V=IRV = IR):

    I1=VRbottom=12 V15 Ω=0.8 AI_1 = \frac{V}{R_{bottom}} = \frac{12\,\text{V}}{15\,\Omega} = 0.8\,\text{A}
  3. Calculate the current I2I_2 flowing through the top branch.

    The voltage across the top branch is 12V, and the resistance is 10Ω. Using Ohm's Law:

    I2=VRtop=12 V10 Ω=1.2 AI_2 = \frac{V}{R_{top}} = \frac{12\,\text{V}}{10\,\Omega} = 1.2\,\text{A}
  4. Calculate the sum of the currents I1I_1 and I2I_2.

    Itotal=I1+I2=0.8 A+1.2 A=2.0 AI_{total} = I_1 + I_2 = 0.8\,\text{A} + 1.2\,\text{A} = 2.0\,\text{A}

    The sum of the current I1I_1 and I2I_2 is 2.0 A\boxed{\text{2.0 A}}.

Was this helpful?

Try one yourself

A new problem that tests the same skill.

Still stuck on this one?

Ask a follow-up, and the answer starts from this question.

Got a different question?Ask your own question

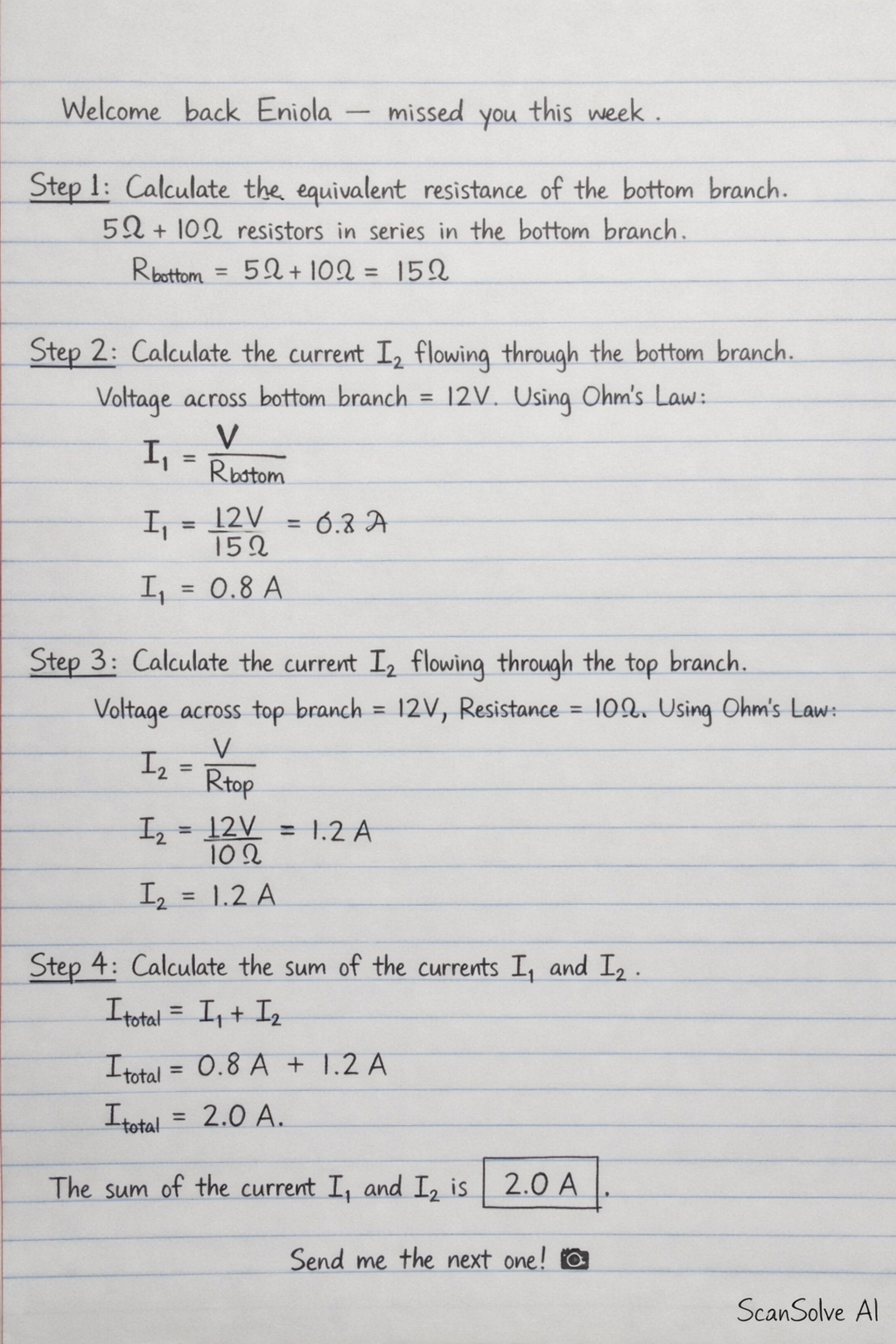

Handwritten step-by-step solution preview
